- Body Material: Bronze
- Connection Size: 1 in
- Port Connection Size: 1 in
- Max. Water Temp.: 284 Degrees F
- Safe Working Water Pressure: 308 psi
- Trim Material: Brass
Specifications
| Part Number | VG7842NT |
| Brand | Johnson Controls |
| Body Material | Bronze |
| Valve Design | 3-Way Mixing |
| Connection Type | (F)NPT |
| Connection Size | 1 in |
| Width | 4 1/8 in |
| Height | 5 31/32 in |
| Depth | 2 5/16 in |
| Overall Length | 4 1/8 in |
| Overall Depth | 2 5/16 in |
| Overall Height | 5 31/32 in |
| Port Connection Size | 1 in |
| Item | Hydronic Globe Valve |
| Configuration | Tee |
| Max. Water Temp. | 284 Degrees F |
| For Use With | M9000 Series Actuators and Pneumatic Actuators |
| Coefficient of Volume | 11.6 |
| Safe Working Water Pressure | 308 psi |
| Trim Material | Brass |
| Safe Working Steam Pressure | 38 psi |
| Includes | Valve Only |
| ANSI Rating | ANSI Leakage Class IV |
| Valve Style | Mixing |
| Seat Material | Brass |
| Flow Characteristic | Linear |
| Port Connection Gender | Female |
| Resistance Properties | Corrosion Resistant |
| Operating Temperature - Minimum | 35 Degrees F |
| Rangeability | 100:1 |
| Actuator Return Action | Spring Return |
| For Media | Water-Glycol Solution to 50%, Water, Steam |
| Packing Material | Ethylene Propylene |
| Installation Orientation | Vertical |
| Manufacturer Series | VG7000 |
| Stem Material | Stainless Steel |
| Allowable Pressure - Maximum | 400 psi |
| Includes Actuator | Actuator Not Included |
| Port Connection Type | NPT |
| Valve Action | Normally Closed, Normally Open |
| Leakage Rate | 0.01% |
| Coefficient of Volume (Cv) | 11.6 |
| Body Pattern | Three-Way |
| Operating Temperature - Maximum | 248 Degrees F |
Description

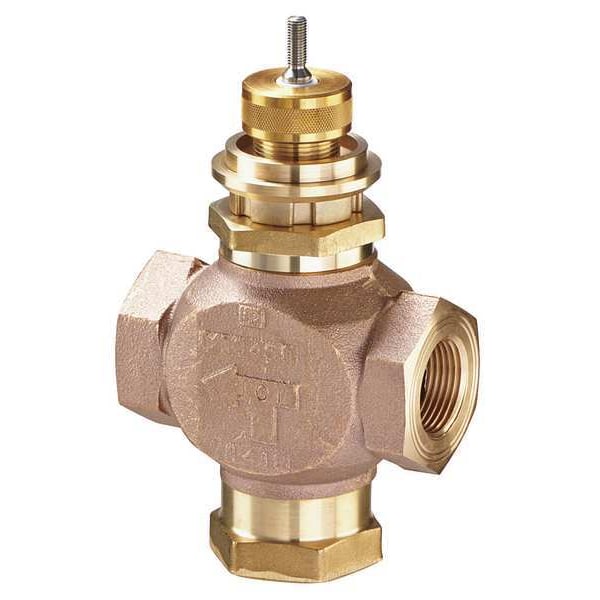

The Johnson Controls VG7842NT is a 3-way mixing hydronic globe valve with a bronze body and 1-inch (F)NPT connections. This valve type regulates fluid flow by mixing two inlet streams into one outlet, and it is designed for use with M9000 Series actuators and pneumatic actuators. It has a Cv of 11.6, a maximum water temperature of 284 degrees Fahrenheit, and a safe working water pressure of 308 psi.
