- Temperature Control Range: 40 to 90 Degrees F
- Voltage: 120 to 277V AC
- Inductive Amps @ 240V: 3 A
- Locked Rotor Amps @ 120V: 36 A
- Locked Rotor Amps @ 240V: 18 A
- Inductive Amps @ 120V: 6 A
Specifications
| Part Number | A19AAF-21 |
| Brand | Johnson Controls |
| Compatible System Type | Hot Water Heating Controls |
| Application | Heat or Cool |
| Switch Action | Open/Close on Rise |
| Switch Type | SPDT |
| Number of Cooling Stages | 1 |
| Sensing Bulb Dia. | 3/8 in |
| Capillary Length | 72 in |
| Overall Width | 2-1/8 in |
| Overall Height | 4-3/8 in |
| Bulb Length | 5 3/4 in |
| Overall Depth | 2 in |
| Number of Heating Stages | 1 |
| Temperature Control Range | 40 to 90 Degrees F |
| Control Type | Screwdriver |
| Voltage | 120 to 277V AC |
| Mounting | Flat Surface |
| Item | Line Voltage Mechanical Thermostat |
| Contact Rating Resistive @ 240V | 10 A |
| Inductive Amps @ 240V | 3 A |
| Enclosure Type | Galvanized/Steel |
| Contact Rating Resistive @ 120V | 10 A |
| Includes | Remote Sensing Bulb |
| Locked Rotor Amps @ 120V | 36 A |
| Locked Rotor Amps @ 240V | 18 A |
| Contact Rating Resistive @ 277V | 10 A |
| Inductive Amps @ 120V | 6 A |
| Sensor Type | Hydraulic Capillary Bulb (Copper) |
| Standards | CSA LR948/4813 02, UL E6688 |
| Inductive Amps @ 208V | 3.4 A |
| Number of Switches | 1 |
| Resistive Amps @ 208VAC | 10 A |
| Thermostat Type | Indoor Single-Stage Controls |
| For Use With | Suitable for Temperature Control in Heating, Ventilating, Air Conditioning, Refrigeration Applications |
| Features | Non-Toxic, Environmentally Safe, Eco-Friendly Sensing Element Material |
| Differential Type | Fixed |
| Minimum Control Temperature | 40 Degrees F |
| Temperature Scale | Fahrenheit/Celsius |
| Maximum Operating Temperature | 140 Degrees F |
| Minimum Operating Temperature | -35 Degrees F |
| Contact Rating | 120V AC, 240V AC |
| Full Load Amps @ 240V AC | 3 A |
| Electrical Connection Type | Hardwired, Screw Terminal |
| Pilot Duty Rating | 125 VA @ 24 to 277V AC |
| Enclosure Color | Gray |
| Number of Poles | 1 |
| Changeover Type | Manual |
| Sensor Location | Remote |
| Full Load Amps @ 120V AC | 6 A |
| Maximum Control Temperature | 90 Degrees F |
| Enclosure NEMA Rating | 1 |
| Temperature Differential | 1.5 Degrees F |
| Housing Material | Steel |
| Programming Capability | Not Programmable |
Description

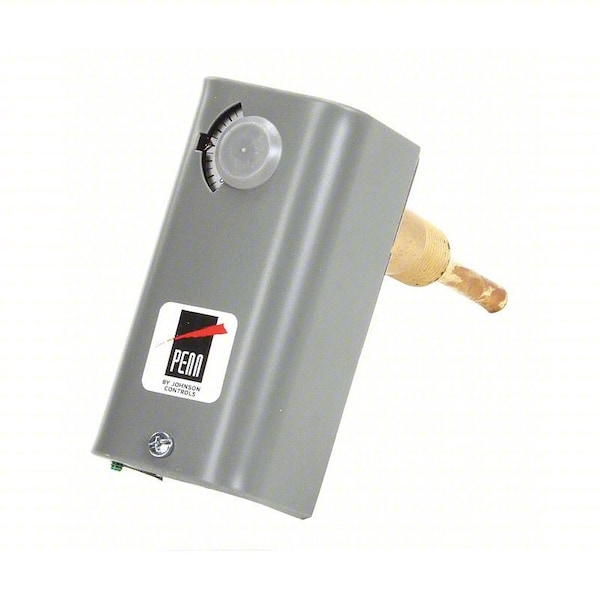

The Johnson Controls A19AAF-21 is a line voltage mechanical thermostat. It functions to control heating or cooling systems, featuring a single-pole, double-throw (SPDT) switch and a screwdriver adjustment for its 40 to 90 degrees Fahrenheit temperature control range. This thermostat operates on 120 to 277V AC with a 10 amp resistive contact rating at 240V and is compatible with hot water heating controls.
