- HP: 3/4
- Nameplate RPM: 1760 rpm
- Voltage: 208-230/460V AC
- Full Load Amps: 2.54-2.30/1.15 A
- RPM Range: 1701-1800
- Phase: Three
Specifications
| Part Number | .7518OT3E56-S |
| Brand | Weg |
| HP | 3/4 |
| Nameplate RPM | 1760 rpm |
| Voltage | 208-230/460V AC |
| Motor Mounting Type | Rigid Base |
| Full Load Amps | 2.54-2.30/1.15 A |
| Length Less Shaft | 9 1/4 in |
| Overall Length | 11 1/8 in |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Manufacturers Warranty Length | 3 yr |
| Item | General Purpose Motor |
| Frame | 56 |
| Motor Bearings | Ball |
| Motor Service Factor | 1.25 |
| Motor Design | Three-Phase |
| Motor Enclosure Design | Open Drip Proof |
| RPM Range | 1701-1800 |
| Phase | Three |
| No. of Speeds | 1 |
| Motor Application | General Purpose |
| Motor Shaft Rotation | CW/CCW |
| Voltage Compatibility | 200-230/460V AC, 208-230/460V AC, 460V AC |
| Hz | 60 Hz |
| Ins. Class | F |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Shaft Design | Keyed |
| Nominal Efficiency | 81.1 % |
| Standards | CSA, UL |
| CC Number | CC029A |
| Inverter Rated | Yes |
| Motor Thermal Protection | None |
| Includes | Conduit Box |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
| Voltage @ 50Hz | 190/380, 220/415 |
| RPM @ 50Hz | 1445/1450 rpm |
| Full Load Amps @ 50Hz | 2.43/1.29, 2.62/1.31 A |
| HP @ 50Hz | 3/4 hp |
| Usable @ 208V | Yes |
| Weight | 23.4 lb |
| Usable @ 200V | No |
| Duty Cycle | Continuous |
| Service Factor @ 50Hz | 1.25 |
Description

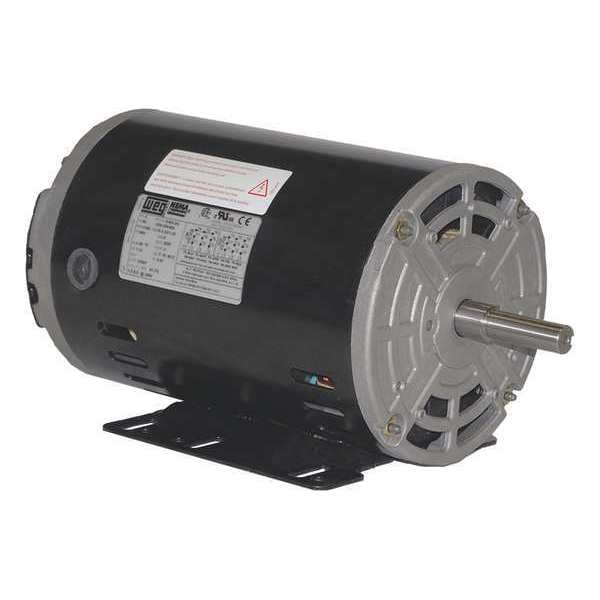

The Weg .7518OT3E56-S is a 3/4 HP general purpose motor in a 56 frame with a rigid base mounting. As a three-phase open drip proof motor, it converts electrical energy into mechanical rotation to drive equipment. It operates at 1760 rpm nameplate speed with a voltage rating of 208-230/460V AC and full load amps of 2.54-2.30/1.15 A.
