- Body Material: Bronze
- Connection Size: 1 1/2 in
- Port Connection Size: 1 1/2 in
- Max. Water Temp.: 338 Degrees F
- Trim Material: Stainless Steel
- Safe Working Steam Pressure: 100 psi
Specifications
| Part Number | VG7443RT |
| Brand | Johnson Controls |
| Body Material | Bronze |
| Valve Design | 2-Way |
| Connection Type | (F)NPT |
| Connection Size | 1 1/2 in |
| Width | 5 1/8 in |
| Height | 5 13/16 in |
| Depth | 4 5/16 in |
| Overall Height | 5 13/16 in |
| Overall Depth | 4 5/16 in |
| Port Connection Size | 1 1/2 in |
| Overall Length | 5 1/8 in |
| Item | Hydronic Globe Valve |
| Configuration | Straight-Thru |
| Max. Water Temp. | 338 Degrees F |
| For Use With | M9000 Series Actuators and Pneumatic Actuators |
| Trim Material | Stainless Steel |
| Coefficient of Volume | 28.9 |
| Safe Working Steam Pressure | 100 psi |
| Safe Working Water Pressure | 308 psi |
| Includes | Valve Only |
| Resistance Properties | Corrosion Resistant |
| ANSI Rating | ANSI Leakage Class IV |
| Body Pattern | Two-Way |
| Specific Valve Action | Stem Up to Close |
| Operating Temperature - Minimum | 35 Degrees F |
| Seat Material | Stainless Steel |
| Installation Orientation | Vertical |
| Manufacturer Series | VG7000 |
| Coefficient of Volume (Cv) | 28.9 |
| Port Connection Gender | Female |
| Leakage Rate | 0.05% |
| Includes Actuator | Actuator Not Included |
| Packing Material | PTFE |
| Stem Material | Stainless Steel |
| Flow Characteristic | Equal Percentage |
| For Media | Water-Glycol Solution to 50%, Water, Steam |
| Valve Action | Normally Closed |
| Port Connection Type | NPT |
| Rangeability | 100:1 |
| Actuator Return Action | Spring Return |
| Allowable Pressure - Maximum | 400 psi |
| Operating Temperature - Maximum | 248 Degrees F |
Description

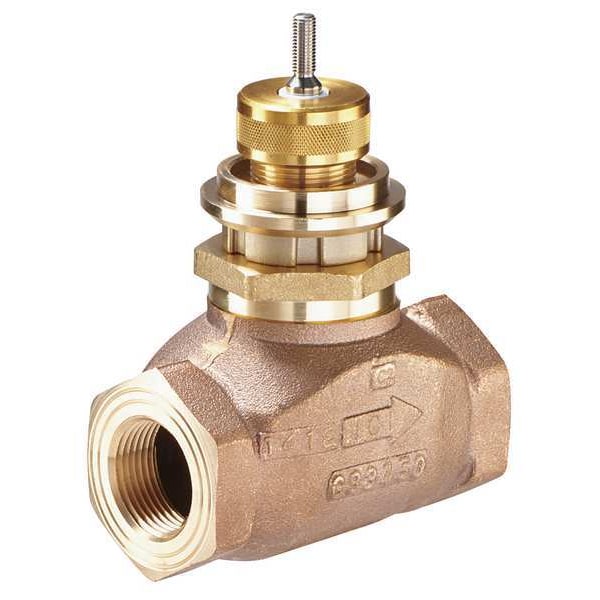

The Johnson Controls VG7443RT is a 2-way, normally closed hydronic globe valve with a bronze body and stainless steel trim. This valve regulates fluid flow in hydronic systems, featuring a 28.9 Cv and a maximum water temperature of 338 degrees Fahrenheit. It is designed for use with M9000 Series actuators and pneumatic actuators, and has 1 1/2 inch (F)NPT connection ports.
