- Material: Stainless Steel Trim
- Connection Size: 1/2 in
- Port Connection Size: 1/2 in
- Closeoff Pressure: 200 psi
- Max. Water Temp.: 284 Degrees F
- Gasket Material: EPDM
Specifications
| Part Number | VG1845AE |
| Brand | Johnson Controls |
| Width | 1 29/32 in |
| Material | Stainless Steel Trim |
| Depth | 2 33/64 in |
| Safe Working Water PSI | 580 psi |
| Power Source | Electric Actuator |
| Connection Size | 1/2 in |
| Height | 1 7/8 in |
| Overall Height | 1 7/8 in |
| Port Connection Size | 1/2 in |
| Overall Length | 1 15/16 in |
| Overall Depth | 2 1/2 in |
| Item | HVAC Control Ball Valve |
| Closeoff Pressure | 200 psi |
| Connection Type | (F)NPT |
| For Use With | M9000 or VA9000 Series Actuators |
| Valve Type | 3-Way |
| Max. Water Temp. | 284 Degrees F |
| Safe Working Steam PSI | 15 with Thermal Spacer |
| Valve Only/Actuator Included | Valve Only |
| Includes | Valve Only |
| Coefficient of Volume | 1.9 |
| Application | Control of Hot/Chilled Water |
| Leakage Rate | 1 % |
| Flow Characteristic | Equal Percentage, Linear |
| Gasket Material | EPDM |
| Coefficient of Volume (Cv) | 1.9 |
| For Media | Steam, Water |
| Operating Temperature - Minimum | -22 Degrees F |
| Port Types Included | Bypass, Control |
| Port Connection Type | NPT |
| Includes Characterizing Disk | Disk Included |
| Bypass Port Coefficient of Volume (Cv) | 1.2 |
| Stem Material | Stainless Steel |
| Manufacturer Series | VG1000 |
| Port Connection Gender | Female |
| Specific Valve Action | Stem Down to Close |
| Rangeability | 500:1 |
| Seat Material | Graphite-Reinforced PTFE |
| Trim Material | Stainless Steel |
| Valve Style | Mixing |
| Close-Off Pressure | 200 psi |
| Includes Actuator | Actuator Not Included |
| Body Material | Brass |
| Operating Temperature - Maximum | 284 Degrees F |
| ANSI Rating | ANSI Leakage Class IV |
| Ball Material | Stainless Steel |
| Body Pattern | Three-Way |
| Disk Material | Polyphthalamide Resin |
| Resistance Properties | Wear Resistant |
Description

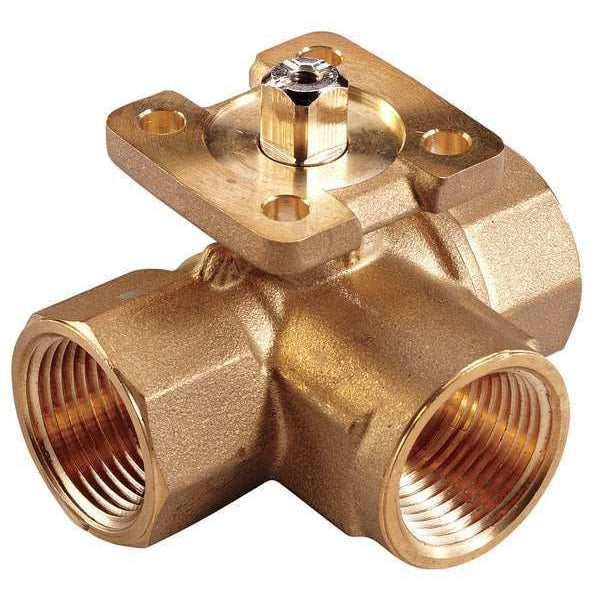

The Johnson Controls VG1845AE is a 3-way HVAC control ball valve with a 1.9 Cv flow coefficient and stainless steel trim. It features 1/2-inch (F)NPT connections and a closeoff pressure rating of 200 psi. This valve is designed for use with M9000 or VA9000 Series actuators.
