- Voltage: 440/480V AC
- Body Material: Die Cast Aluminum
- Normally Closed Port Connection Size: 1/4 in
- Normally Open Port Connection Size: 1/8 in
- Common Port Connection Size: 1/4 in
- Temp. Control Range: 32 Degrees to 104 Degrees F
Specifications
| Part Number | V11HDA-100 |
| Brand | Johnson Controls |
| Voltage | 440/480V AC |
| Power Consumption | 6 W |
| Body Material | Die Cast Aluminum |
| Overall Width | 2 1/2 in |
| Electrical Connections | Soldered |
| Depth | 1 1/2 in |
| Height | 3 1/4 in |
| Width | 2 1/2 in |
| Overall Length | 3 7/16 in |
| Normally Closed Port Connection Size | 1/4 in |
| Overall Depth | 1 1/2 in |
| Normally Open Port Connection Size | 1/8 in |
| Electrical Lead Length | 18 in |
| Common Port Connection Size | 1/4 in |
| Item | Solenoid Air Valve |
| Normally Open / Normally Closed | Normally Open/Normally Closed |
| Agency Compliance | UL |
| Air Connections | 1/4 in Barb |
| Temp. Control Range | 32 Degrees to 104 Degrees F |
| Air Consumption | 1.5 cfm |
| Control Air Pressure | 0 to 25 psi |
| Max. Air Pressure | 30 psi |
| Standards | CE Listed, UL Listed |
| Operating Temperature - Minimum | 32 Degrees F |
| Enclosure Type | Junction Box |
| Frequency | 50/60 Hz |
| Application | Smoke Dampers |
| Normally Closed Port Connection Gender | Male |
| Valve Action | Normally Closed, Normally Open |
| For Media | Air |
| Port Types Included | Common, Normally Closed, Normally Open |
| Number of Port Connections | 3 |
| Normally Open Port Connection Type | NPT |
| Body Pattern | Three-Way |
| Installation Orientation | Versatile |
| Operating Temperature - Maximum | 140 Degrees F |
| Control Action | Direct Acting/Reverse Acting |
| Common Port Connection Gender | Male |
| Normally Closed Port Connection Type | Barbed Hose |
| Cover Material | Steel |
| Common Port Connection Type | Barbed Hose |
| Operating Pressure - Maximum | 30 psi |
| Normally Open Port Connection Gender | Female |
Description

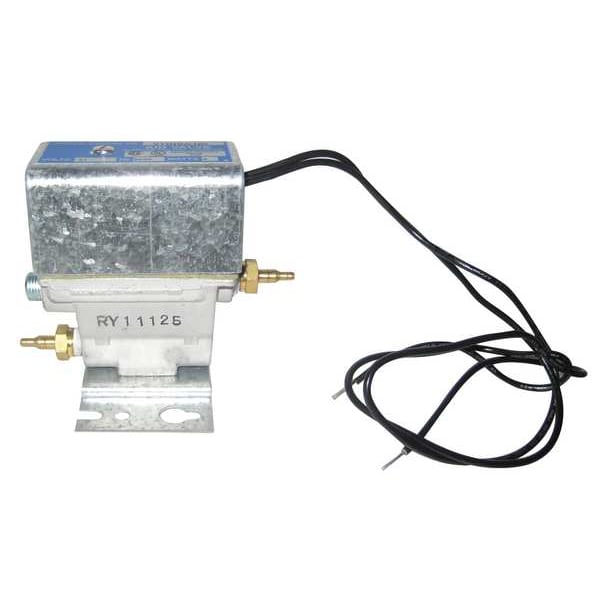

The Johnson Controls V11HDA-100 is a 3-way solenoid air valve. This valve electrically opens and closes air ports to control airflow. It operates on 440/480V AC at 50/60 Hz with a pressure range of 0-25 psi and features a die cast aluminum body with soldered electrical connections.
