- Temperature Control Range: 0 to 120 Degrees F
- Voltage: 120 to 277V AC
- Inductive Amps @ 240V: 12 A
- Locked Rotor Amps @ 120V: 80 A
- Locked Rotor Amps @ 240V: 60 A
- Resistive Amps @ 208VAC: 25 A
Specifications
| Part Number | TRF115-005 |
| Brand | Peco |
| Compatible System Type | Dampers, Fans, Heat Trace, Heaters |
| Application | Heat or Cool |
| Switch Action | Open on Rise |
| Switch Type | SPDT |
| Number of Cooling Stages | 1 |
| Capillary Length | 60 in |
| Sensing Bulb Dia. | 3/8 in |
| Overall Depth | 2-1/2 in |
| Overall Height | 6-3/8 in |
| Overall Width | 3-1/8 in |
| Bulb Length | 2-3/8 in |
| Number of Heating Stages | 1 |
| Temperature Control Range | 0 to 120 Degrees F |
| Control Type | Exposed Dial |
| Voltage | 120 to 277V AC |
| Mounting | Wall |
| Item | Line Voltage Mechanical Thermostat |
| Sensor Type | Hydraulic Capillary Bulb (Stainless Steel) |
| Number of Switches | 1 |
| Contact Rating Resistive @ 120V | 25 A |
| Contact Rating Resistive @ 277V | 20 A |
| Enclosure Type | Rain Tight |
| Inductive Amps @ 240V | 12 A |
| Locked Rotor Amps @ 120V | 80 A |
| Locked Rotor Amps @ 240V | 60 A |
| Resistive Amps @ 208VAC | 25 A |
| Contact Rating Resistive @ 240V | 25 A |
| Inductive Amps @ 120V | 16 A |
| Standards | CSA Certified, NEC 547, UL Listed |
| For Use With | Agricultural, Commercial and Industrial Applications |
| Thermostat Type | Weatherproof Single-Stage Controls |
| Features | Rain Tight NEMA 4X Enclosure |
| Contact Rating | 120 to 277V AC |
| Enclosure Color | Gray |
| Minimum Operating Temperature | -30 Degrees F |
| Minimum Control Temperature | 0 Degrees F |
| Sensor Location | Remote |
| Temperature Sensitivity | +/-6 Degrees F |
| Maximum Operating Temperature | 140 Degrees F |
| Number of Poles | 1 |
| Pilot Duty Rating | 125 VA @ 120 to 277V AC |
| Full Load Amps @ 120V AC | 15 A |
| Changeover Type | Automatic |
| Differential Type | Fixed |
| Temperature Scale | Fahrenheit |
| Enclosure NEMA Rating | 4X |
| Full Load Amps @ 240V AC | 12 A |
| Maximum Control Temperature | 120 Degrees F |
| Temperature Differential | 3 Degrees F |
| Programming Capability | Not Programmable |
| Housing Material | Plastic |
| Includes | Remote Sensing Bulb |
Description

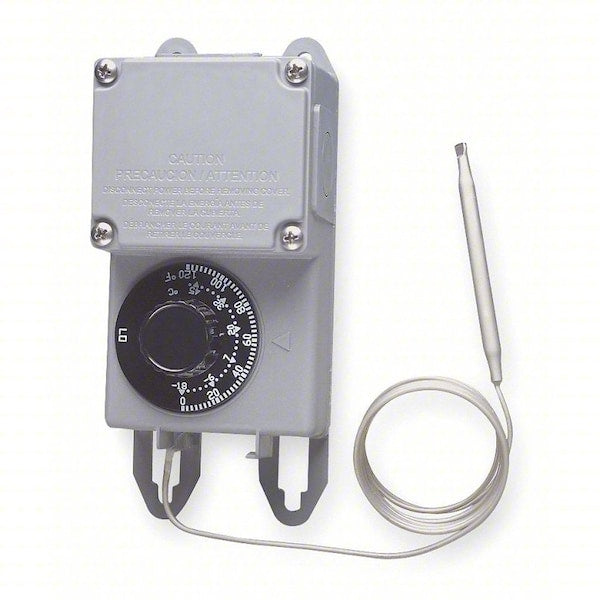

The Peco TRF115-005 is a line voltage mechanical thermostat with an exposed dial. This thermostat controls heating or cooling equipment by opening and closing a single-pole double-throw (SPDT) switch based on temperature sensed by its stainless steel hydraulic capillary bulb, operating within a 0 to 120 degrees Fahrenheit range at 120 to 277V AC. It is compatible with dampers, fans, heat trace, and heaters.
