- Temperature Scale: Fahrenheit
- Maximum Air Pressure: 30 psig
- Air Connection Outside Diameter: 1/8 in
- Temperature Control Range: 55 Degrees to 85 Degrees F (Day/Night)
- Minimum Control Temperature: 55 Degrees F
- Temperature Settings: Single Temperature
Specifications
| Part Number | TK-1301 |
| Brand | Schneider Electric |
| Fits Brand | Schneider Electric |
| Application | Heat and Cool |
| Includes | Manual Override |
| Temperature Scale | Fahrenheit |
| Maximum Air Pressure | 30 psig |
| Overall Width | 2 3/4 in |
| Overall Height | 4 3/8 in |
| Overall Depth | 1 5/8 in |
| Air Connection Outside Diameter | 1/8 in |
| Item | Pneumatic Thermostat |
| Sensor Type | Bi-Metallic Spring |
| Number of Dials | Dual |
| Air Consumption | 13.8 scim |
| Cover Color | Beige |
| Temperature Control Range | 55 Degrees to 85 Degrees F (Day/Night) |
| Throttling Range | 2 Degrees to 10 Degrees F |
| Action | Direct |
| Air Flow Output | High Volume |
| Minimum Control Temperature | 55 Degrees F |
| Operating Humidity Range | 0% to 98% RH |
| Number of Pipes | 2 |
| Temperature Settings | Single Temperature |
| Pneumatic Thermostat Type | Day/Night |
| Fitting Connection | 5/32 in |
| Control Type | Exposed Dial |
| Air Flow Capacity | 16 scim |
| Maximum Control Temperature | 85 Degrees F |
| Pneumatic Thermostat Type/Indexing Switch | Day/Night |
| Differential Type | Adjustable |
| Number of Pipes/Air Flow Output | 2 Pipes, High Volume |
| Mounting Direction | Horizontal, Vertical |
| Mounting Direction/Includes Cover | Horizontal/Vertical, Yes |
| Compatible System Type | Pneumatic Valves and Damper Actuators |
| Control Air Pressure Settings | 15 psig (Day)/ 20 psig (Night) |
| Thermostat Action | Direct - 15 psig (Day), Direct - 20 psig (Night) |
| Manual Indexing Switch | No |
Description

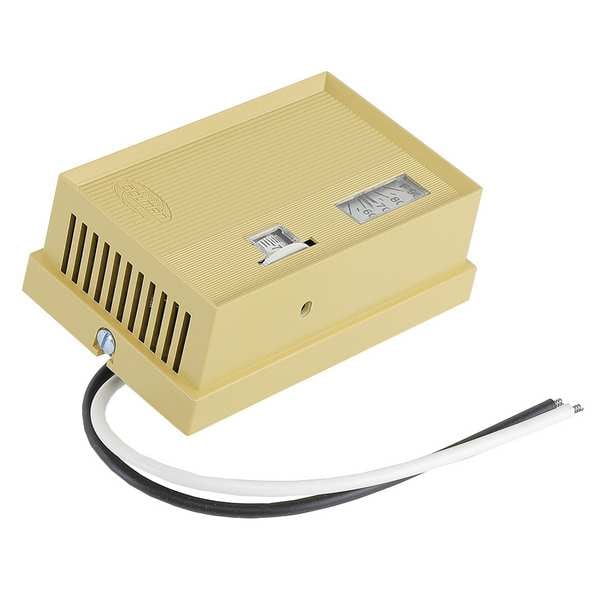

The TK-1301 is a Schneider Electric pneumatic thermostat, a Day to Night, D.A. — DAY-NITE STAT 55/85F DA w/ManO model. This thermostat controls temperature in heat and cool applications using a bi-metallic spring sensor, with a Fahrenheit temperature scale and a control range of 55 to 85 degrees F for day/night operation. It includes a manual override, delivers high-volume air flow output, and has a maximum air pressure rating of 30 psig.
