- Air Connection Outside Diameter: 1/8 in
- Maximum Control Temperature: 85 Degrees F
- Minimum Control Temperature: 55 Degrees F
- Temperature Settings: Single Temperature
- Air Flow Capacity: 16 scim
- Temperature Scale: Fahrenheit
Specifications
| Part Number | TK-1001 |
| Brand | Schneider Electric |
| Includes | Mounting Hardware, Hex Wrench, Mounting Plate |
| Fits Brand | Schneider Electric |
| Application | Heat or Cool |
| Sensor Type | Bi-Metallic Spring |
| Compatible System Type | Pneumatic Valves and Damper Actuators |
| Overall Depth | 1 5/8 in |
| Air Connection Outside Diameter | 1/8 in |
| Overall Width | 2 3/4 in |
| Overall Height | 4 3/8 in |
| Item | Pneumatic Thermostat |
| Differential Type | Adjustable |
| Mounting Direction | Vertical |
| Maximum Control Temperature | 85 Degrees F |
| Fitting Connection | 5/32 in |
| Minimum Control Temperature | 55 Degrees F |
| Temperature Settings | Single Temperature |
| Air Consumption | 13.8 scim |
| Thermostat Action | Direct |
| Throttling Range | 2 Degrees to 10 Degrees F |
| Cover Color | Beige |
| Number of Pipes/Air Flow Output | 2 Pipes, High Volume |
| Operating Humidity Range | 0% to 98% RH |
| Action | Direct |
| Manual Indexing Switch | No |
| Number of Pipes | 2 |
| Air Flow Capacity | 16 scim |
| Mounting Direction/Includes Cover | Vertical, Yes |
| Temperature Scale | Fahrenheit |
| Air Flow Output | High Volume |
| Maximum Air Pressure | 30 psig |
| Temperature Control Range | 55 Degrees to 85 Degrees F |
| Number of Dials | Single |
Description

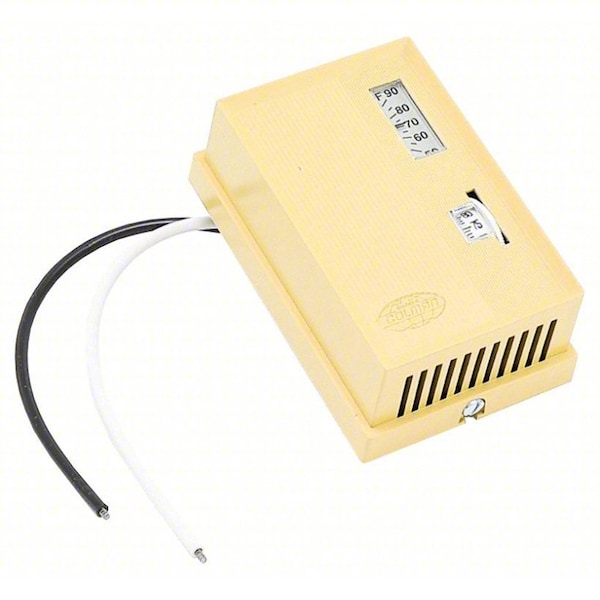

The TK-1001 is a Schneider Electric pneumatic thermostat. This type of thermostat uses a bi-metallic spring sensor to control pneumatic valves and damper actuators for heat or cool applications. It features an adjustable differential and a maximum control temperature of 85 degrees F.
