- Voltage: 19V AC to 30V AC
- Temp. Settings per Day: 0
- Temperature Control Range: 40 Degrees F to 90 Degrees F, 54 Degrees F to 100 Degrees F
- Operating Temperature Range: 32 Degrees F to 122 Degrees F
- Amperage: 1 A
- Frequency: 50 Hz, 60 Hz
Specifications
| Part Number | TEC3630-14-000 |
| Brand | Johnson Controls |
| Voltage | 19V AC to 30V AC |
| Stages Heat | 2 |
| Color | White |
| Stages Cool | 2 |
| Power Method | Hardwired |
| Overall Height | 4 3/4 in |
| Overall Depth | 1 7/16 in |
| Screen Width | 4 3/4 in |
| Sensor Length | 15 ft |
| Screen Height | 1 7/16 in |
| Overall Width | 5 5/8 in |
| Item | Low Voltage Thermostat |
| Programs per Week | 7 or Nonprogrammable |
| Temp. Settings per Day | 0 |
| Control Type | Touch Screen |
| WiFi Capability | No |
| Humidification Control | Yes |
| Includes | USB Port Configuration |
| Control Output | Single Stage RTU/Heat Pump with Economizer |
| Terminal Designations | 0-10 VDC;BI1;BI2;COS;OAT;R SEN;SAT |
| Standards | BACnet International, CE, FCC Compliant to CFR 47, RCM Mark, Transmission Complies with FCC Part 15.247, UL Listed, UL60730 |
| Sensor Type | Occupancy Sensor |
| Dehumidification Control | No |
| Occupancy Sensor | Compatible with Occupancy Sensor |
| Temperature Control Range | 40 Degrees F to 90 Degrees F, 54 Degrees F to 100 Degrees F |
| Contact Rating | 19V AC to 30V AC |
| Operating Humidity Range | +/-5% RH from 20% to 80% RH |
| Number of Heating Stages - Heat Pump System | 2 |
| Number of Pipes | 2 |
| Backlit Screen | Yes |
| Operating Temperature Range | 32 Degrees F to 122 Degrees F |
| Compatible with Building Automation Systems | Yes |
| Battery Type | Hardwired |
| Thermostat Type | Low Voltage |
| Backlit Type | Touch Activated |
| Programming Capability | 7-Day, Not Programmable |
| Network Protocol Compatibility | BACnet MS/TP, N2 |
| Housing Color | White |
| Occupancy Sensor Compatibility | No |
| Enclosure Color | White |
| System Settings | Auto-Heat-Cool-Off |
| Sensor Location | Built-In |
| Number of Relay Outputs | 1 |
| Amperage | 1 A |
| Lead Wire Gauge | 18 ga, 22 ga |
| Humidification/Dehumidification Control | Yes, No |
| Frequency | 50 Hz, 60 Hz |
| Number of Relay Inputs | 1 |
| Maximum Temperature Control | 100 Degrees F |
| Temperature Scale | Fahrenheit/Celsius |
| Smart Connectivity | No Connectivity |
| Temperature Adjustment | Single or Two Stage |
| Filter Change Reminder | Yes |
| Remote Control Functions | On/Off and Temperature Control |
| Number of Heating Stages - Conventional System | 2 |
| Number of Cooling Stages - Heat Pump System | 2 |
| Compatible System Type | Heat Pumps With Aux, RTU's |
| Temperature settings per day | 0 |
| Fan Settings | High-Med-Low-Auto-Quiet |
| Electrical Connection Type | Hardwired |
| Includes Batteries | No |
| Minimum Operating Temperature | 32 Degrees F |
| Minimum Temperature Control | 40 Degrees F |
| Temperature Sensitivity | +/- 0.9 Degrees F |
| Number of Relay Inputs/Outputs | 1 / 1 |
| Number of Cooling Stages - Conventional System | 1 |
| Application | Heat and Cool |
| Maximum Operating Temperature | 122 Degrees F |
Description

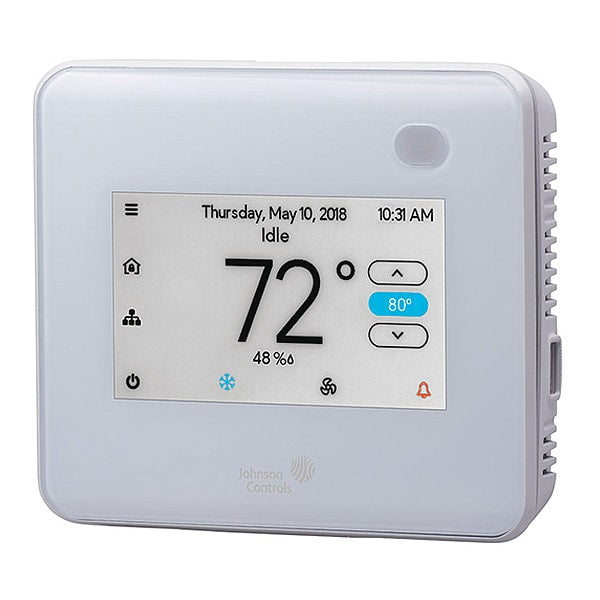

The Johnson Controls TEC3630-14-000 is a low voltage thermostat with a touch screen control type. It operates on 19V AC to 30V AC and is compatible with an occupancy sensor. This thermostat is BACnet International, CE, FCC, RCM Mark, and UL Listed compliant.
