- Voltage: 19V AC to 30V AC
- Temp. Settings per Day: 0
- Maximum Temperature Control: 100 Degrees F
- Temperature settings per day: 0
- Temperature Scale: Fahrenheit/Celsius
- Temperature Sensitivity: +/- 0.9 Degrees F
Specifications
| Part Number | TEC3623-14-000 |
| Brand | Johnson Controls |
| Voltage | 19V AC to 30V AC |
| Stages Heat | 2 |
| Color | White |
| Stages Cool | 2 |
| Power Method | Hardwired |
| Overall Width | 5 5/8 in |
| Sensor Length | 15 ft |
| Screen Height | 1 7/16 in |
| Overall Depth | 1 7/16 in |
| Screen Width | 4 3/4 in |
| Overall Height | 4 3/4 in |
| Item | Low Voltage Thermostat |
| Programs per Week | 7 or Nonprogrammable |
| WiFi Capability | No |
| Control Output | Up to 10V DC Proportional Fan Coil and Zoning |
| Includes | USB Port Configuration |
| Control Type | Touch Screen |
| Temp. Settings per Day | 0 |
| Standards | BACnet International, CE, FCC Compliant to CFR 47, RCM Mark, Transmission Complies with FCC Part 15.247, UL Listed, UL60730 |
| Occupancy Sensor | Includes Onboard Occupancy Sensor |
| Dehumidification Control | Yes |
| Sensor Type | Occupancy Sensor |
| Humidification Control | Yes |
| Terminal Designations | 0-10 VDC;BI1;BI2;COS;OAT;R SEN;SAT |
| Programming Capability | 7-Day, Not Programmable |
| Backlit Screen | Yes |
| Compatible System Type | Fan Coil Units, Zoning Systems |
| Compatible with Building Automation Systems | Yes |
| Maximum Temperature Control | 100 Degrees F |
| Temperature settings per day | 0 |
| Thermostat Type | Low Voltage |
| Temperature Scale | Fahrenheit/Celsius |
| Temperature Sensitivity | +/- 0.9 Degrees F |
| Enclosure Color | White |
| Application | Heat and Cool |
| Number of Heating Stages - Conventional System | 2 |
| Number of Heating Stages - Heat Pump System | 2 |
| Humidification/Dehumidification Control | Yes, Yes |
| Electrical Connection Type | Hardwired |
| Housing Color | White |
| Fan Settings | High-Med-Low-Auto-Quiet |
| Remote Control Functions | On/Off and Temperature Control |
| Operating Temperature Range | 32 Degrees F to 122 Degrees F |
| Number of Relay Inputs/Outputs | 1 / 1 |
| Contact Rating | 19V AC to 30V AC |
| Network Protocol Compatibility | BACnet MS/TP, N2 |
| Amperage | 1 A |
| Minimum Operating Temperature | 32 Degrees F |
| Number of Pipes | 2 |
| System Settings | Auto-Heat-Cool-Off |
| Battery Type | Hardwired |
| Number of Relay Inputs | 1 |
| Includes Batteries | No |
| Backlit Type | Touch Activated |
| Minimum Temperature Control | 40 Degrees F |
| Number of Cooling Stages - Conventional System | 1 |
| Operating Humidity Range | +/-5% RH from 20% to 80% RH |
| Smart Connectivity | No Connectivity |
| Lead Wire Gauge | 18 ga, 22 ga |
| Maximum Operating Temperature | 122 Degrees F |
| Filter Change Reminder | Yes |
| Temperature Control Range | 40 Degrees F to 90 Degrees F, 54 Degrees F to 100 Degrees F |
| Number of Relay Outputs | 1 |
| Frequency | 50 Hz, 60 Hz |
| Sensor Location | Built-In |
| Temperature Adjustment | Proportional |
| Number of Cooling Stages - Heat Pump System | 2 |
Description

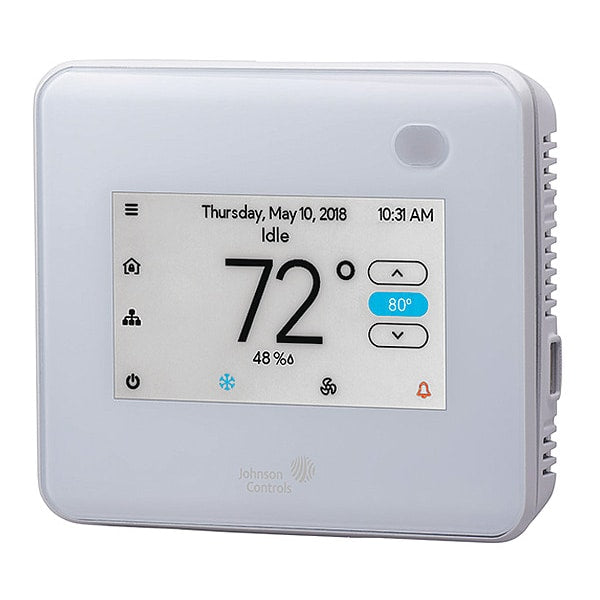

The Johnson Controls TEC3623-14-000 is a low voltage thermostat with a touch screen control. It operates on 19V AC to 30V AC and includes an onboard occupancy sensor and a USB port for configuration. This thermostat is BACnet International, CE, FCC, RCM Mark, and UL Listed compliant.
| Shipping | This item ships to USA |
