- Voltage: 19 to 30 V AC
- Temp. Settings per Day: 0
- Frequency: 5/6 Hz
- Temperature settings per day: 0
- Temperature Control Range: +40 Degrees to +90.0 Degrees F, +54 Degrees to +100.0 Degrees F
- Operating Temperature Range: 32 Degrees to 122 Degrees F
Specifications
| Part Number | TEC3622-16-000 |
| Brand | Johnson Controls |
| Voltage | 19 to 30 V AC |
| Stages Heat | 2 |
| Color | White |
| Stages Cool | 2 |
| Power Method | Hardwired |
| Overall Width | 5 5/8 in |
| Overall Depth | 1 7/16 in |
| Overall Height | 4 3/4 in |
| Item | Low Voltage Thermostat |
| Programs per Week | 7 or Nonprogrammable |
| Includes | USB Port Configuration |
| Standards | Australia/NZ Emissions Compliant, BACnet International, CE, FCC Compliant to CFR 47, RCM Mark, Transmission Complies with FCC Part 15.247, UL Listed, UL60730 |
| Control Type | Touch Screen |
| Temp. Settings per Day | 0 |
| Terminal Designations | B1, B2, COS, R, SEN |
| Display Type | Backlit |
| Dehumidification Control | Yes |
| Occupancy Sensor | Compatible with Occupancy Sensor |
| WiFi Capability | No |
| System Settings | Auto-Cool-Heat-Off |
| Frequency | 5/6 Hz |
| Operating Humidity Range | +/-5% from 20% to 80% |
| Temperature settings per day | 0 |
| Programming Capability | 7 Day |
| Number of Relay Outputs | 1 |
| Temperature Control Range | +40 Degrees to +90.0 Degrees F, +54 Degrees to +100.0 Degrees F |
| Operating Temperature Range | 32 Degrees to 122 Degrees F |
| Sensor Location | Built-In |
| Backlit Screen | Yes |
| Temperature Sensitivity | +/-0.9 Degrees F |
| Contact Rating | 19 to 30 V AC |
| Number of Relay Inputs | 1 |
| Fan Settings | Hi-Med-Low-Auto-Quiet |
| Battery Type | Hardwired |
| Electrical Connection Type | Hardwired |
| System/Fan Settings | Auto-Cool-Heat-Off/Auto-Hi-Low-Med-Quiet |
| Smart Connectivity | No Connectivity |
| Thermostat Type | Low Voltage |
Description

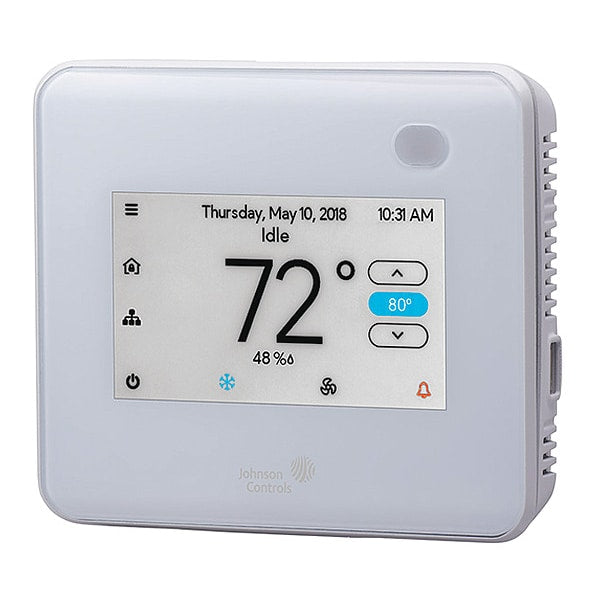

The Johnson Controls TEC3622-16-000 is a low voltage thermostat with a touch screen and backlit display. This thermostat controls heating and cooling systems, operating on 19 to 30 V AC and supporting 2 heat and 2 cool stages. It is compatible with an occupancy sensor and includes a USB port for configuration.
