- Voltage: 19V AC to 30V AC
- Temp. Settings per Day: 0
- Frequency: 50 Hz, 60 Hz
- Temperature Control Range: 40 Degrees F to 90 Degrees F, 54 Degrees F to 100 Degrees F
- Maximum Operating Temperature: 122 Degrees F
- Temperature Scale: Fahrenheit/Celsius
Specifications
| Part Number | TEC3622-14-000 |
| Brand | Johnson Controls |
| Voltage | 19V AC to 30V AC |
| Stages Heat | 2 |
| Color | Black |
| Stages Cool | 2 |
| Power Method | Hardwired |
| Screen Width | 4 3/4 in |
| Sensor Length | 15 ft |
| Overall Width | 5 5/8 in |
| Screen Height | 1 7/16 in |
| Overall Height | 4 3/4 in |
| Overall Depth | 1 7/16 in |
| Item | Low Voltage Thermostat |
| Programs per Week | 7 or Nonprogrammable |
| WiFi Capability | No |
| Control Type | Touch Screen |
| Terminal Designations | 0-10 VDC;BI1;BI2;COS;OAT;R SEN;SAT |
| Control Output | Up to 10V DC Proportional Fan Coil and Zoning |
| Humidification Control | Yes |
| Dehumidification Control | Yes |
| Sensor Type | Occupancy Sensor |
| Standards | BACnet International, CE, FCC Compliant to CFR 47, RCM Mark, Transmission Complies with FCC Part 15.247, UL Listed, UL60730 |
| Occupancy Sensor | Compatible with Occupancy Sensor |
| Includes | USB Port Configuration |
| Temp. Settings per Day | 0 |
| Number of Relay Inputs | 1 |
| Humidification/Dehumidification Control | Yes, Yes |
| Frequency | 50 Hz, 60 Hz |
| Programming Capability | 7-Day, Not Programmable |
| Temperature Control Range | 40 Degrees F to 90 Degrees F, 54 Degrees F to 100 Degrees F |
| Number of Relay Outputs | 1 |
| Maximum Operating Temperature | 122 Degrees F |
| Lead Wire Gauge | 18 ga, 22 ga |
| Enclosure Color | White |
| System Settings | Auto-Heat-Cool-Off |
| Number of Heating Stages - Heat Pump System | 2 |
| Temperature Scale | Fahrenheit/Celsius |
| Smart Connectivity | No Connectivity |
| Temperature Sensitivity | +/- 0.9 Degrees F |
| Temperature Adjustment | Proportional |
| Occupancy Sensor Compatibility | No |
| Remote Control Functions | On/Off and Temperature Control |
| Electrical Connection Type | Hardwired |
| Housing Color | White |
| Compatible System Type | Fan Coil Units, Zoning Systems |
| Number of Relay Inputs/Outputs | 1 / 1 |
| Number of Pipes | 2 |
| Includes Batteries | No |
| Network Protocol Compatibility | BACnet MS/TP, N2 |
| Application | Heat and Cool |
| Filter Change Reminder | Yes |
| Backlit Screen | Yes |
| Number of Cooling Stages - Heat Pump System | 2 |
| Backlit Type | Touch Activated |
| Number of Cooling Stages - Conventional System | 1 |
| Minimum Operating Temperature | 32 Degrees F |
| Contact Rating | 19V AC to 30V AC |
| Number of Heating Stages - Conventional System | 2 |
| Temperature settings per day | 0 |
| Minimum Temperature Control | 40 Degrees F |
| Operating Humidity Range | +/-5% RH from 20% to 80% RH |
| Fan Settings | High-Med-Low-Auto-Quiet |
| Sensor Location | Built-In |
| Compatible with Building Automation Systems | Yes |
| Battery Type | Hardwired |
| Thermostat Type | Low Voltage |
| Amperage | 1 A |
| Maximum Temperature Control | 100 Degrees F |
| Operating Temperature Range | 32 Degrees F to 122 Degrees F |
Description

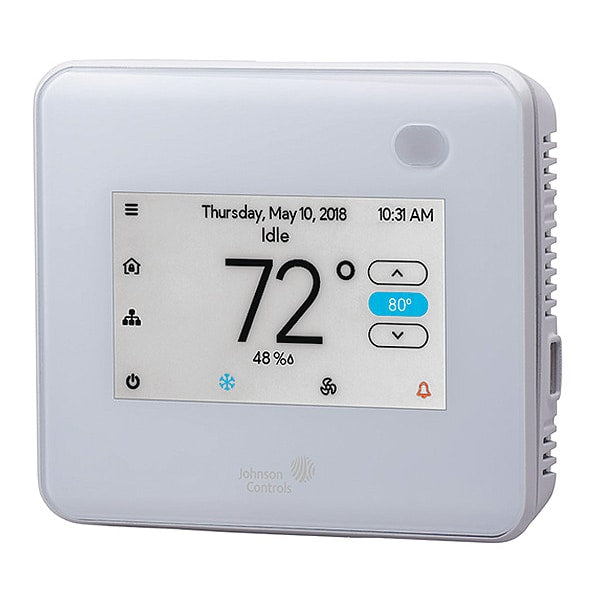

The Johnson Controls TEC3622-14-000 is a low voltage thermostat with a touch screen and occupancy sensor. It controls heating and cooling systems with two stages of heat and two stages of cool, operating on 19V AC to 30V AC. This thermostat is BACnet International, CE, FCC, RCM, and UL Listed compliant.
