- Voltage: 19 to 30V AC
- Temp. Settings per Day: 0
- Minimum Temperature Control: 40 Degrees F
- Frequency: 50 Hz, 60 Hz
- Temperature Scale: Fahrenheit/Celsius
- Wi-Fi Frequency: 2.4 GHz
Specifications
| Part Number | TEC3330-14-000 |
| Brand | Johnson Controls |
| Voltage | 19 to 30V AC |
| Stages Heat | 2 |
| Color | Black |
| Stages Cool | 2 |
| Dual Transformer Compatible | No |
| Overall Height | 4 3/4 in |
| Overall Width | 5 5/8 in |
| Overall Depth | 1 7/16 in |
| Item | Low Voltage Thermostat |
| Power Method | Hardwired |
| Programs per Week | 7 or Nonprogrammable |
| Humidification Control | Yes |
| Control Type | Touch Screen |
| Terminal Designations | B1, B2, COS, R, Sensor |
| Occupancy Sensor | Compatible with Occupancy Sensor |
| Stages | 2H/2C Conventional, 3H/2C Heat Pump |
| Temp. Settings per Day | 0 |
| Dehumidification Control | No |
| WiFi Capability | No |
| Display Type | Digital |
| Standards | BACnet International, CE, FCC Compliant to CFR 47, RCM Mark, Transmission Complies with FCC Part 15.247, UL Listed, UL60730 |
| Includes | USB Port Configuration |
| Key Pad Lockout | Yes |
| Thermostat Type | Low Voltage |
| Fan Settings | Hi-Med-Low-Auto |
| Application | Heat and Cool |
| Compatible System Type | RTUs |
| Includes Positive Off | Yes |
| Number of Cooling Stages - Conventional System | 2 |
| Contact Rating | 19 to 30V AC |
| Number of Relay Inputs | 1 |
| Number of Relay Outputs | 1 |
| Minimum Temperature Control | 40 Degrees F |
| Smart Connectivity | No Connectivity |
| Network Protocol Compatibility | BACnet MS/TP, N2 |
| Number of Heating Stages - Heat Pump System | 3 |
| Frequency | 50 Hz, 60 Hz |
| Mounting Direction | Horizontal |
| Temperature Scale | Fahrenheit/Celsius |
| Number of Zones | 1 |
| Mounting Direction/Shape | Horizontal |
| Wireless | Yes |
| Wi-Fi Frequency | 2.4 GHz |
| Housing Color | White |
| Operating Humidity Range | +/-5% RH from 20% to 80% RH |
| Application/Stages | Heat and Cool; 2H/2C Conventional, 3H/2C Heat Pump |
| Maximum Temperature Control | 100 Degrees F |
| Backlit Screen | Yes |
| Filter Change Reminder | Yes |
| Differential Heat | 2 Degrees F |
| Backlit Type | Adjustable |
| Number of Heating Stages - Conventional System | 2 |
| Compatible Software/Device | Mobile |
| Shape | Rectangle |
| Temperature settings per day | 0 |
| Amazon Alexa Compatible | No |
| Electrical Connection Type | Hardwired |
| Temperature Readout | Yes |
| Differential Cool | 2 Degrees F |
| Number of Cooling Stages - Heat Pump System | 2 |
| Programming Capability | 7-Day |
| Changeover Type | Automatic |
| System Settings | Auto-Cool-Heat-Off |
| Differential Type | Adjustable |
| Temperature Differential | 1 Degrees F |
| Temperature Control Range | 40 Degrees F to 90 Degrees F |
| Temperature Sensitivity | +/-0.9 Degrees F |
Description

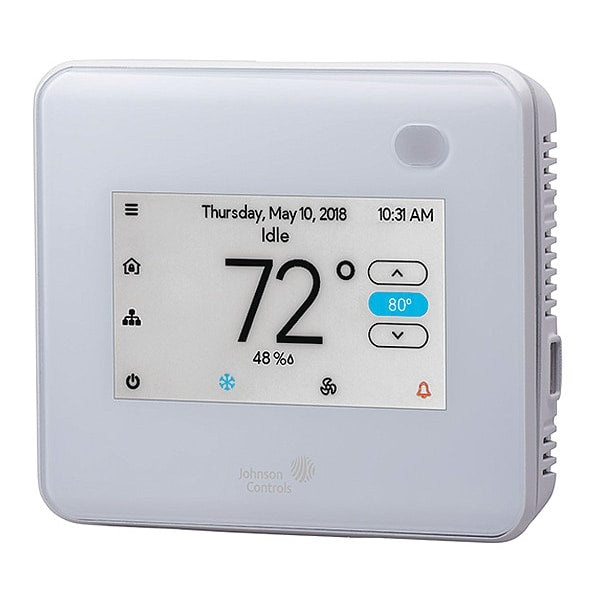

The Johnson Controls TEC3330-14-000 is a low voltage thermostat with a digital touch screen display. This type of thermostat controls heating and cooling equipment by sensing temperature and activating the appropriate stages, here supporting 2 heat and 2 cool stages. It operates on 19 to 30V AC and is compliant with BACnet International, CE, FCC Part 15.247, RCM Mark, and UL60730 standards.
| Shipping | This item ships to USA |
