- Voltage: 19 to 30V AC
- Temp. Settings per Day: 0
- Maximum Temperature Control: 100 Degrees F
- Temperature Differential: 1 Degrees F
- Temperature Sensitivity: +/-0.9 Degrees F
- Temperature Readout: Yes
Specifications
| Part Number | TEC3313-14-000 |
| Brand | Johnson Controls |
| Voltage | 19 to 30V AC |
| Stages Heat | 2 |
| Color | White |
| Stages Cool | 2 |
| Dual Transformer Compatible | No |
| Overall Depth | 1 7/16 in |
| Overall Height | 4 3/4 in |
| Overall Width | 5 5/8 in |
| Item | Low Voltage Thermostat |
| Power Method | Hardwired |
| Programs per Week | 7 or Nonprogrammable |
| Key Pad Lockout | Yes |
| Humidification Control | Yes |
| Standards | BACnet International, CE, FCC Compliant to CFR 47, RCM Mark, Transmission Complies with FCC Part 15.247, UL Listed, UL60730 |
| Display Type | Digital |
| WiFi Capability | No |
| Control Type | Touch Screen |
| Temp. Settings per Day | 0 |
| Includes | USB Port Configuration |
| Dehumidification Control | Yes |
| Occupancy Sensor | Compatible with Occupancy Sensor |
| Terminal Designations | B1, B2, COS, R, Sensor |
| Stages | 1H/1C Conventional, 1H/1C Heat Pump |
| Amazon Alexa Compatible | No |
| Number of Cooling Stages - Heat Pump System | 1 |
| Maximum Temperature Control | 100 Degrees F |
| Changeover Type | Automatic |
| Shape | Rectangle |
| Number of Heating Stages - Heat Pump System | 1 |
| Fan Settings | Hi-Med-Low-Auto |
| Temperature Differential | 1 Degrees F |
| Number of Relay Outputs | 1 |
| Thermostat Type | Low Voltage |
| Differential Type | Adjustable |
| Temperature Sensitivity | +/-0.9 Degrees F |
| Includes Positive Off | Yes |
| Temperature Readout | Yes |
| Wireless | Yes |
| Temperature Scale | Fahrenheit/Celsius |
| Number of Zones | 1 |
| Temperature Control Range | 40 Degrees F to 90 Degrees F |
| Compatible Software/Device | Mobile |
| Temperature settings per day | 0 |
| Network Protocol Compatibility | BACnet MS/TP, N2 |
| Filter Change Reminder | Yes |
| Smart Connectivity | No Connectivity |
| Operating Humidity Range | +/-5% RH from 20% to 80% RH |
| Number of Heating Stages - Conventional System | 1 |
| System Settings | Auto-Cool-Heat-Off |
| Compatible System Type | Fan Coil Unit |
| Housing Color | White |
| Differential Heat | 2 Degrees F |
| Application/Stages | Heat and Cool; 1H/1C Conventional, 1H/1C Heat Pump |
| Backlit Screen | Yes |
| Frequency | 50 Hz, 60 Hz |
| Minimum Temperature Control | 40 Degrees F |
| Application | Heat and Cool |
| Mounting Direction/Shape | Horizontal |
| Differential Cool | 2 Degrees F |
| Wi-Fi Frequency | 2.4 GHz |
| Electrical Connection Type | Hardwired |
| Smart Capabilities | Occupancy Sensing |
| Number of Relay Inputs | 1 |
| Mounting Direction | Horizontal |
| Programming Capability | 7-Day |
| Number of Cooling Stages - Conventional System | 1 |
| Backlit Type | Adjustable |
| Contact Rating | 19 to 30V AC |
Description

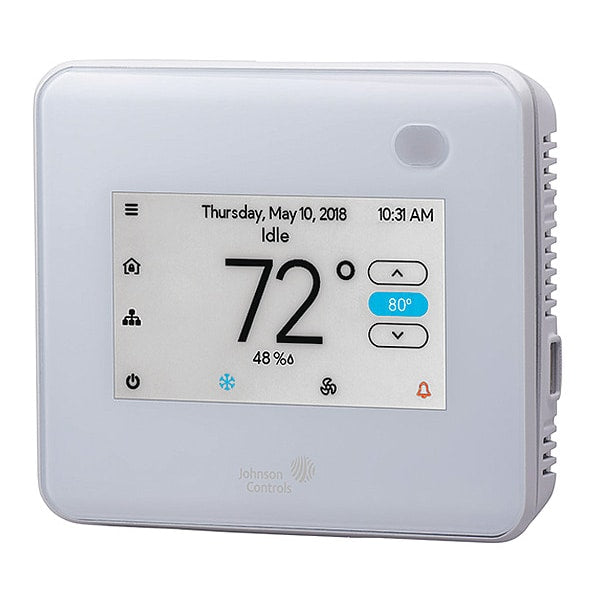

The Johnson Controls TEC3313-14-000 is a low voltage thermostat with a digital touch screen display. This type of thermostat controls heating and cooling systems by switching equipment on or off based on temperature settings. It operates on 19 to 30V AC and is UL Listed, CE, and FCC compliant.
