- Material: Copper
- Sensor Diameter: 1/4 in
- Minimum Temperature: -50 Degrees F
- Maximum Operating Temperature: 250 Degrees F
- Maximum Temperature: 250 Degrees F
- Includes Temperature Sensor: Yes
Specifications
| Part Number | TE-6000-100 |
| Brand | Johnson Controls |
| Material | Copper |
| Color | Gray |
| Height | 0.25 in |
| Nominal Sensor Ohms @ 75F | 1k |
| Sensor Type | 1k ohm Nickel |
| Dia. | 1/4 in |
| Length | 2 1/2 in |
| Width | 1 7/8 in |
| Overall Height | 1/4 in |
| Sensor Diameter | 1/4 in |
| Depth | 1/4 in |
| Overall Depth | 1/4 in |
| Overall Width | 1 7/8 in |
| Cable Length | 10 ft |
| Item | Temperature Sensor |
| Remarks | Resistance Tolerance +/-0.1% |
| Sensor Shape | Round |
| Minimum Temperature | -50 Degrees F |
| Number of Wires | 2 |
| Maximum Operating Temperature | 250 Degrees F |
| Maximum Temperature | 250 Degrees F |
| Compatible Brand and Series | System 450 Control Modules, TE-6001 Hardware Assemblies |
| Application | Temperature |
| Electrical Connection Type | Hardwired |
| Includes Temperature Sensor | Yes |
| Minimum Operating Temperature | -50 Degrees F |
| Corrosion Resistant | Yes |
| Housing Color | Gray |
| Series | TE-6000 |
| Sensing Element Type | Nickel |
| Temperature Accuracy | +/-0.10% |
| Product Type | Temperature Sensor |
| For Use With Building Automation Systems | Building Automation System Compatible |
| Housing Type | Conduit Box |
| Loop Resistance | 1k ohm |
| Minimum Sensing Temperature | -50 Degrees F |
| Maximum Sensing Temperature | 250 Degrees F |
| Measurement Type | Averaging |
| Display Type | None |
Description

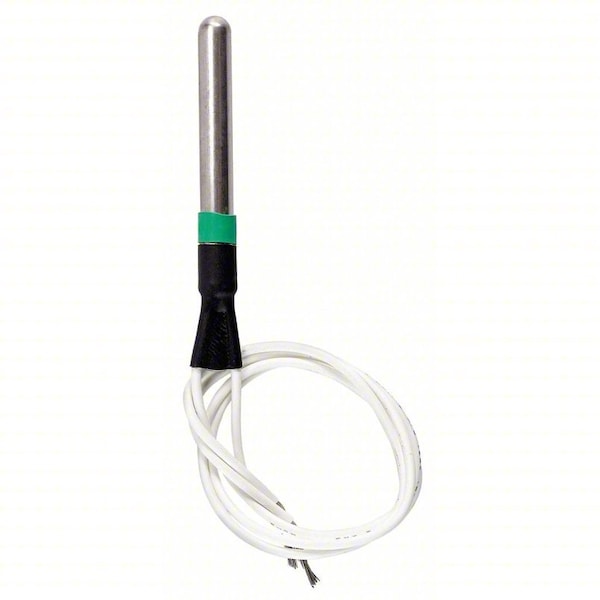

The Johnson Controls TE-6000-100 is a 1k ohm Nickel temperature sensor. This sensor measures temperature and converts it into a resistance signal for system monitoring and control. It is compatible with System 450 Control Modules and TE-6001 Hardware Assemblies.
