- Digit Size: Standard
- Voltage: 24V
- Locked Rotor Amps @ 240V: 17.4
- Temp. Settings per Day: Manual Adjust
- Locked Rotor Amps @ 120V: 34.8
- Full Load Amps @ 120VAC: 5.8
Specifications
| Part Number | TA167-007 |
| Brand | Peco |
| Fan Coil Thermostat Type | Analog, Electronic |
| Thermostat Switch Type | Triac |
| Switch Action | Open/Close on Rise |
| Number of Switches | 6 |
| Thermostat Control Range | 50 Degrees to 90 Degrees F |
| Height | 2 13/16 in |
| Width | 4 1/2 in |
| Depth | 1 in |
| Overall Depth | 1 in |
| Overall Height | 2 13/16 in |
| Overall Width | 4 1/2 in |
| Digit Size | Standard |
| Item | Fan Coil Thermostat |
| Differential (Deg. F) | 1 |
| System Switching | Heat-Off-Cool |
| Voltage | 24V |
| Locked Rotor Amps @ 240V | 17.4 |
| Rated For Pilot Duty | 125VA |
| Color | White |
| Thermostat Number of Speeds | 3 |
| Temp. Settings per Day | Manual Adjust |
| Special Information | Low Voltage Thermostat is Electrically Isolated From The Line Voltage Fan Switching |
| Uses | Fan Coil, 2 Pipe or 4 Pipe |
| Locked Rotor Amps @ 120V | 34.8 |
| Agency Compliance | UL, cUL, CE |
| Thermostat Item | Fan Coil Thermostat |
| Enclosure Type | Rigid Vinyl |
| Display | Analog |
| Application | Heat and Cool |
| Full Load Amps @ 120VAC | 5.8 |
| Thermostat Number of Pipes | 2 or 4 |
| Thermostat Heating/Cooling | Heating/Cooling |
| Sensor Type | Thermistor |
| Full Load Amps @ 240VAC | 2.9 |
| Input Voltage | 24V AC |
| Fan Switching | Hi-Med-Low |
| Includes | Mounting Hardware |
| Mounting Position | Vertical |
| Number of Stages | 2 |
| Switch Type | 0 to 10VDC |
| Temperature Control Range | 50 Degrees to 90 Degrees F |
| Dual Transformer Compatible | No |
| Housing Type | Rigid Vinyl |
| Housing Color | White |
| Minimum Control Temperature | 50 Degrees F |
| Changeover Type | Manual |
| Mounting Direction | Vertical |
| Programming Capability | Not Programmable |
| Key Pad Lockout | No |
| Temperature settings per day | Manual Adjust |
| Temperature Scale | Fahrenheit |
| System/Fan Settings | Cool-Heat-Off, Hi-Med-Low |
| Maximum Operating Temperature | 90 Degrees F |
| Standards | CE, cUL, UL |
| Backlit Screen | No |
| System Settings | Cool-Heat-Off |
| Display Type | Analog |
| Stages | 1H/1C |
| Housing Material | Plastic |
| Frequency | 50 Hz, 60 Hz |
| Pilot Duty Rating | 125VA |
| Temperature Readout | No |
| Terminal Designations | 2, 3, 4, 5, TB1-1, TB2-1, TB3-1 |
| Number of Pipes | 2 or 4 |
| Thermostat Type | Fan Coil Thermostat |
| Differential Type | Fixed |
| Temperature Differential | 1 Degrees F |
| Dehumidification Control | No |
| Humidification Control | No |
| Maximum Control Temperature | 90 Degrees F |
| Contact Rating | 24V AC |
| Mounting Direction/Shape | Vertical |
| Control Type | Slide Switch |
| Compatible System Type | Fan Coil Unit |
| Operating Temperature Range | 50 Degrees to 90 Degrees F |
| Fan Settings | Hi-Med-Low |
| Number of Zones | 8 |
| Includes Positive Off | Yes |
| Application/Stages | Heat and Cool, 1H/1C |
| Shape | Rectangle |
| Type | Electronic, Analog |
Description

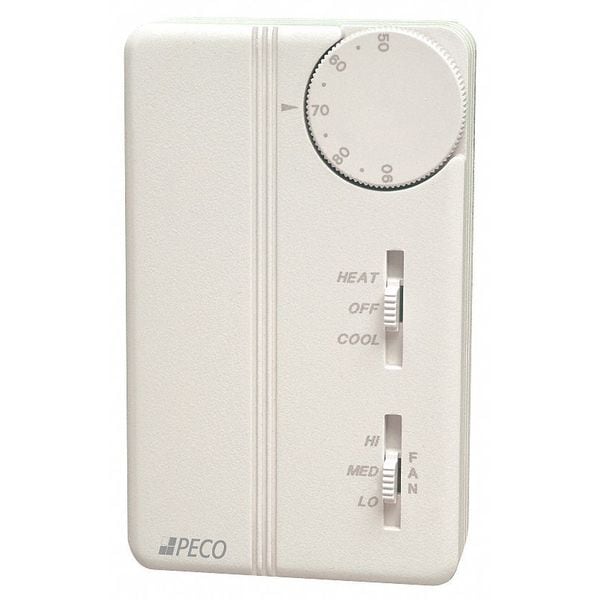

The Peco TA167-007 is an analog, electronic fan coil thermostat. It uses a triac switch and a 0-10VDC control signal to regulate fan coil operation at 24V.
