- Voltage: 24 to 277V AC
- Digit Size: Standard
- Maximum Control Temperature: 90 Degrees F
- Temperature settings per day: Manual
- Operating Temperature Range: 50 Degrees to 90 Degrees F
- Temperature Limiting: No
Specifications
| Part Number | TA155-047 |
| Brand | Peco |
| Switch Action | Application specific |
| Application | Heat and Cool |
| Voltage | 24 to 277V AC |
| Includes | Horizonal and Vertical Cover, Mounting Hardware |
| Switch Type | SPDT |
| Overall Height | 4 1/2 in |
| Overall Width | 2 13/16 in |
| Overall Depth | 1 1/8 in |
| Digit Size | Standard |
| Item | Fan Coil Thermostat |
| System Settings | Auto-Heat-Cool-Off |
| Terminal Designations | Cool, Fan Supply, Heat, High, L1, L2 or Neutral, Lo, Med, Remote Probe 1 Remote Probe 2, SW'd Power |
| Maximum Control Temperature | 90 Degrees F |
| Contact Rating | 24/120/240/277V AC |
| Temperature settings per day | Manual |
| Mounting Direction | Horizontal, Vertical |
| Operating Temperature Range | 50 Degrees to 90 Degrees F |
| Compatible System Type | Fan Coil Unit |
| Standards | CE, UL Canada, UL Listed |
| Key Pad Lockout | No |
| Humidification Control | No |
| Thermostat Type | Line Voltage, Low Voltage |
| Temperature Limiting | No |
| Temperature Scale | Fahrenheit/Celsius |
| Maximum Operating Temperature | 90 Degrees F |
| Includes Positive Off | Yes |
| Backlit Screen | No |
| Shape | Rectangle |
| Temperature Readout | No |
| Fan Settings | Hi-Med-Low-Off |
| Dual Transformer Compatible | No |
| Minimum Operating Temperature | 50 Degrees F |
| Minimum Control Temperature | 50 Degrees F |
| Control Type | Selector Dial, Slide Switch |
| Housing Color | Beige |
| Sensor Location | Built-In, Remote |
| Dehumidification Control | No |
| Differential Type | Fixed |
| Pilot Duty Rating | 125 VA @ 120/240/277V AC, 24 VA @ 24V AC |
| Changeover Type | Manual |
| Number of Pipes | 2 or 4 |
| Number of Zones | 1 |
| Frequency | 50 Hz, 60 Hz |
| Housing Material | Vinyl |
| Electrical Connection Type | Hardwired |
| Temperature Differential | 1 Degrees F |
| Display Type | Analog |
Description

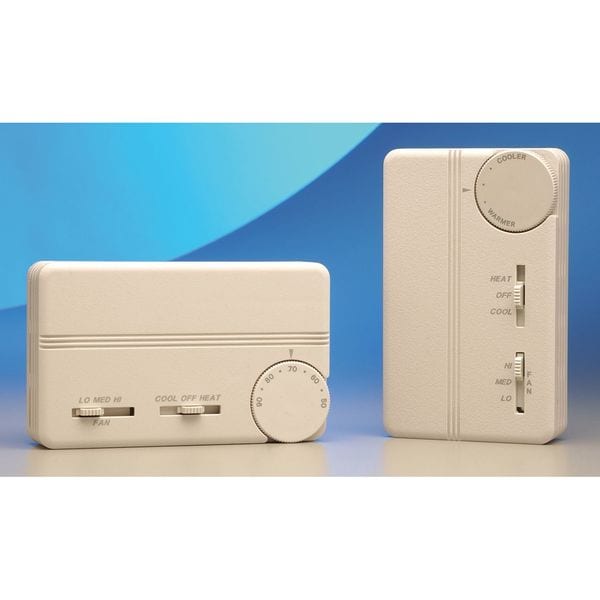

The Peco TA155-047 is a fan coil thermostat with a single-pole, double-throw (SPDT) switch. It controls heat and cool functions in fan coil systems, operating on 24 to 277V AC with a contact rating of 24/120/240/277V AC and a maximum control temperature of 90 degrees F. The unit includes horizontal and vertical covers and mounting hardware, and it features manual temperature settings per day.
