- Voltage: 20/30VAC
- Diameter: 3 11/16 in
- Digit Size: Standard
- Overall Diameter: 3 11/16 in
- Frequency: 50 Hz, 60 Hz
- Maximum Control Temperature: 90 Degrees F
Specifications
| Part Number | T87N1000 |
| Brand | International Comfort Products |
| Voltage | 20/30VAC |
| Stages Heat | 1 |
| Mounting Type | Round |
| Color | Premier White |
| Control Range | 40 Degrees to 90 Degrees F |
| Height | 1-3/4" |
| Width | 3-11/16" |
| Depth | 1 3/4 in |
| Diameter | 3 11/16 in |
| Digit Size | Standard |
| Overall Depth | 1 3/4 in |
| Overall Width | 4 13/16 in |
| Overall Diameter | 3 11/16 in |
| Item | Manual Thermostat |
| System Switching | Heat-Cool-Off |
| Stages Cool | 1 |
| Dual Transformer Compatible | Yes |
| Power Method | Battery Assisted Power Stealing |
| Fan Switching | Auto-On |
| Mounting | Round |
| For Use With | Gas, Oil, Electric, Forced Warm Air, Hot Water, Steam or Gravity, Cooling, 4 or 5 Wire Systems |
| Includes | Subbase |
| Terminal Designations | B, G, O, R, RC, W, Y |
| Features | Mercury Free |
| Display Type | Analog |
| Dehumidification Control | No |
| Humidification Control | No |
| Stages | 1H/1C Conventional, 1H/1C Heat Pump |
| Control Type | Exposed Dial |
| Type | Mechanical Nonprogrammable Conventional Systems or HP |
| System/Fan Settings | Heat-Off-Cool/Auto-On |
| Number of Heating Stages - Conventional System | 1 |
| Number of Cooling Stages - Conventional System | 1 |
| Number of Cooling Stages - Heat Pump System | 1 |
| Electrical Connection Type | Hardwired |
| Frequency | 50 Hz, 60 Hz |
| Maximum Control Temperature | 90 Degrees F |
| Includes Positive Off | Yes |
| Shape | Round |
| Thermostat Type | Low Voltage |
| Mercury Free | Yes |
| Temperature Readout | Yes |
| Operating Humidity Range | 5% to 90% |
| System Settings | Cool-Heat-Off |
| Mounting Direction/Shape | Round |
| Application | Heat and Cool |
| Temperature Scale | Fahrenheit |
| Changeover Type | Manual |
| Fan Settings | Auto-On |
| Mounting Direction | Vertical |
| Number of Heating Stages - Heat Pump System | 1 |
| Compatible System Type | Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump without Aux, Hydronic Systems |
| Maximum Operating Humidity | 90 % |
| Housing Color | White |
| Minimum Control Temperature | 40 Degrees F |
| Temperature Sensitivity | +/-2 Degrees F |
| Temperature Control Range | 40 Degrees to 90 Degrees F |
| Minimum Operating Humidity | 5 % |
Description

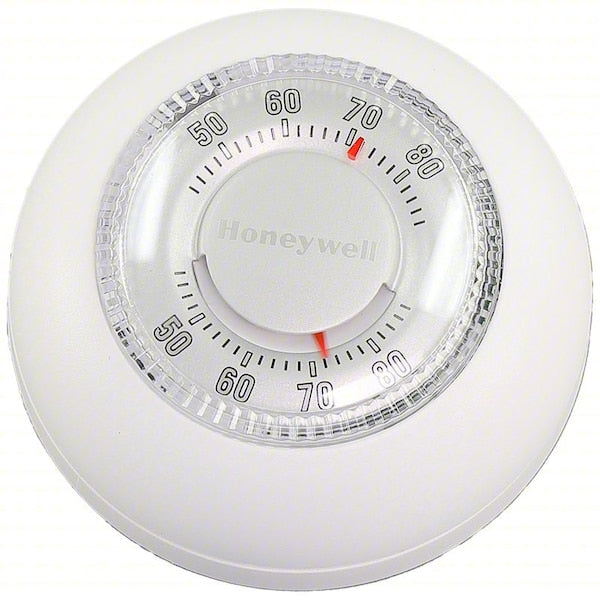

The International Comfort Products T87N1000 is a manual thermostat with an analog display. This type of thermostat controls heating and cooling by manually setting the desired temperature. It operates at 20/30VAC, is mercury free, and is compatible with dual transformers for use with gas, oil, electric, forced warm air, hot water, steam or gravity, cooling, and 4 or 5 wire systems.
