- Voltage: 24VAC
- Display Size: 4 sq in
- Digit Size: Easy Read
- Temp. Settings per Day: 1, 4
- Temperature Limiting: Yes
- Temporary Temperature Hold: Yes
Specifications
| Part Number | T715 |
| Brand | Pro1 Iaq |
| Voltage | 24VAC |
| Stages Heat | 2 |
| Mounting Type | Horizontal or Vertical |
| Mounting Location | Wall |
| Color | White |
| Height | 4 13/32" |
| Width | 4 45/64" |
| Depth | 1 7/64 in |
| Display Size | 4 sq in |
| Overall Depth | 1 1/8 in |
| Digit Size | Easy Read |
| Overall Height | 4 3/8 in |
| Screen Width | 4 in |
| Overall Width | 4 11/16 in |
| Screen Height | 4 in |
| Item | Mutely-Stage Gas |
| Control Range | 44 Degrees to 90 Degrees F |
| System Switching | Heat-Cool-Off |
| Stages Cool | 2 |
| Dual Transformer Compatible | Yes |
| Power Method | Hardwired/Battery |
| 750mV Compatible | Yes |
| Programs per Week | 7, 5-1-1 |
| Display Type | Backlit |
| Display Color | Blue |
| Battery Backup | Yes |
| Automatic Changeover | No |
| WiFi Capability | No |
| Batteries Included | Yes |
| Fan Switching | Auto-on |
| Includes | Manual/Install Guide, Mounting Hardware |
| Temp. Settings per Day | 1, 4 |
| Terminal Designations | B, C, G, O, RC, RH, W, W2, Y, Y2 |
| Low Battery Indicator | Yes |
| Temperature Limiting | Yes |
| Temporary Temperature Hold | Yes |
| For Use With | Heating and Cooling |
| Programmable Fan | No |
| Dehumidification Control | No |
| Key Pad Lockout | No |
| Temporary Program Override | Yes |
| Humidification Control | No |
| Remote Sensing Capability | No |
| Filter Indicator | Yes |
| Features | Programmable Multi Stage Gas |
| Control Type | Push Button |
| Stages | 2H/2C Conventional |
| Minimum Operating Temperature | 32 Degrees F |
| Application | Heat and Cool |
| Thermostat Type | Low Voltage |
| Includes Positive Off | Yes |
| Number of Cooling Stages - Conventional System | 2 |
| Temperature Readout | Yes |
| Mounting Direction | Horizontal; Vertical |
| Changeover Type | Manual |
| Electrical Connection Type | Hardwired |
| Minimum Control Temperature | 44 Degrees F |
| Maximum Operating Temperature | 105 Degrees F |
| Maximum Control Temperature | 90 Degrees F |
| Application/Stages | Heat and Cool; 2H/2C Conventional, H/C Heat Pump |
| Housing Color | White |
| Temperature Differential | 0.2 Degrees to 2.0 Degrees F |
| Maximum Operating Humidity | 90 % |
| Differential Type | Adjustable |
| Temperature Sensitivity | +/-1 Degrees F |
| Battery Type | (2) AA Batteries |
| Backlit Screen Color | Blue |
| Temperature Control Range | 44 Degrees to 90 Degrees F |
| Differential Cool | 0.2 Degrees F, 2 Degrees F |
| Millivolt Compatible | Yes |
| Temperature Scale | Fahrenheit/Celsius |
| Fan Settings | Auto-On |
| Mounting Direction/Shape | Square |
| Includes Batteries | Yes |
| Shape | Square |
| Compatible System Type | Electric Forced Air Furnaces, Gas Forced Air Furnaces, Millivolt |
| Filter Change Reminder | Yes |
| Differential Heat | 0.2 Degrees F, 2 Degrees F |
| Frequency | 50 Hz, 60 Hz |
| Smart Connectivity | No Connectivity |
| Number of Heating Stages - Conventional System | 2 |
| System/Fan Settings | Cool-Heat-Off/Auto-On |
| Operating Temperature Range | 32 Degrees to 105 Degrees F |
| Programming Capability | 5-1-1, 7 Day |
| Temperature settings per day | 1, 4 |
| System Settings | Cool-Heat-Off |
| Backlit Screen | Yes |
Description

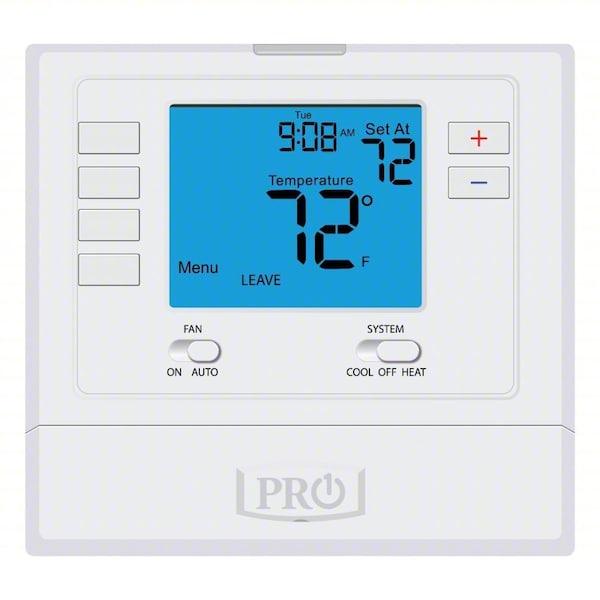

The Pro1 Iaq T715 is a wiring and connectors component for a multi-stage gas system. It functions as a wall-mounted thermostat interface, supporting 24VAC power, dual transformer compatibility, and 750mV systems, with a backlit display and 1 or 4 temperature settings per day. It is used with 2H/2C programmable or non-programmable 7-day or 5-1-1 day schedules, and mounts horizontally or vertically.
