- Air Connection Outside Diameter: 1/4 in
- Minimum Control Temperature: 0 Degrees F
- Temperature Control Range: 0 Degrees F to 270 Degrees F
- Maximum Control Temperature: 270 Degrees F
- Air Flow Capacity: 45 scim
Specifications
| Part Number | T-3610-1001 |
| Brand | Johnson Controls |
| Depth | 2 in |
| Type | 1-Pipe, Duct Mount, Liquid Filled Capiillary |
| Height | 3 in |
| Air Consumption (SCFM) | 0.2 scfm |
| Width | 6 in |
| Capillary Length | 8 ft |
| Overall Height | 5 5/16 in |
| Overall Width | 3 in |
| Air Connection Outside Diameter | 1/4 in |
| Overall Depth | 2 1/8 in |
| Item | Pneumatic Temperature Limit Control |
| Minimum Control Temperature | 0 Degrees F |
| Temperature Control Range | 0 Degrees F to 270 Degrees F |
| Maximum Control Temperature | 270 Degrees F |
| Action | Direct |
| Compatible System Type | Duct Mounting, Unit Ventilators |
| Air Flow Capacity | 45 scim |
| Fitting Connection | 1/4 in Barbed |
| Thermostat Action | Direct |
Description

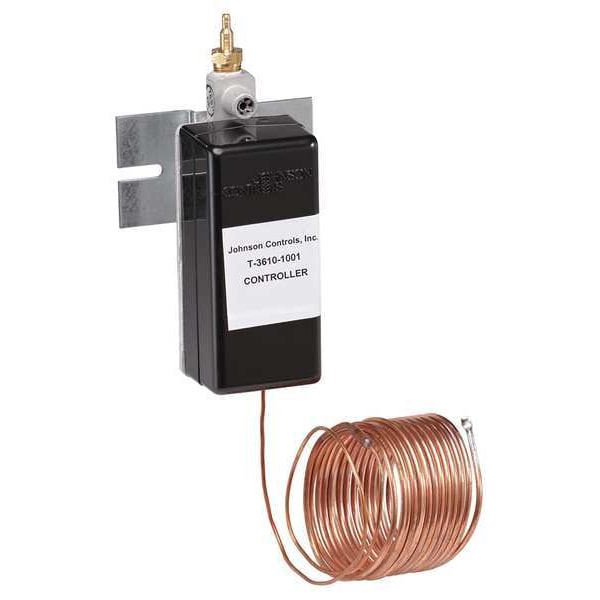

The Johnson Controls T-3610-1001 is a pneumatic temperature limit control, specifically a 1-pipe, duct mount, liquid-filled capillary limit switch. It functions as a pneumatic low limit controller, operating within a 0 to 25 psi range and a temperature control range of 0°F to 270°F, with an air flow capacity of 45 scim and a 1/4 in barbed fitting connection. This part is compatible with duct mounting and unit ventilators.
