- Pressure Connection: 1/4 in Flare Nut
- Pressure Connection Size: 1/4 in
- Mounting Hole Diameter: 1/4 in
- Differential Pressure (PSI): 60 to 150
- Body Material: Steel
- Pressure Differential Max.: 150 psi
Specifications
| Part Number | P70CA-400 |
| Brand | Johnson Controls |
| Switch Type | SPST |
| Switch Action | Open on Rise |
| Pressure Connection | 1/4 in Flare Nut |
| Type | High Pressure |
| Range (PSI) | 200 to 610 |
| Capillary Length | 36 in |
| Pressure Connection Size | 1/4 in |
| Overall Depth | 2 1/8 in |
| Overall Width | 4 in |
| Overall Height | 4 1/4 in |
| Mounting Hole Diameter | 1/4 in |
| Item | High Pressure Control |
| Close (PSI) | 340 |
| Reset | Auto |
| Function | High Pressure Applications |
| Enclosure | NEMA 1 |
| Differential Pressure (PSI) | 60 to 150 |
| Application | Fan Cycling |
| Open (PSI) | 400 psi |
| Includes | Mounting Bracket |
| Element Type | Bellows |
| Body Material | Steel |
| Pressure Differential Max. | 150 psi |
| Product Type | High Pressure Control |
| Pressure Differential - Minimum | 60 psi |
| Contact Form | SPST |
| Valve Type | Open on Rise of Differential Pressure |
| Rated Voltage | 120V AC, 208/240V AC |
| NEMA Rating | 1 |
| Pressure Range - Maximum | 610 psi |
| Number of Mounting Holes | 2 |
| Output Current | 24 A |
| Heat Pump Override | No Override |
| Maximum Operating Temperature | 104 Degrees F |
| Body Material Finish | Galvanized |
| Standards | UL Listed |
| Reset Type | Automatic Reset |
| Pressure Connection Type | Flare |
| Pressure Connection Gender | Female |
| Minimum Operating Temperature | 50 Degrees F |
| Pressure Range - Minimum | 200 psi |
| Pressure Setting | High |
| Pressure Range Adjustability | Adjustable |
| Pressure Type | Differential |
| Series | P70 |
| Input Sensor Type | Pressure Sensor |
Description

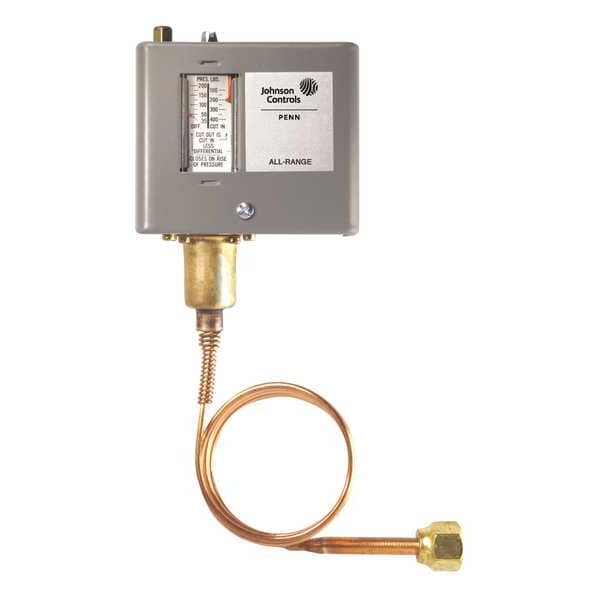

The Johnson Controls P70CA-400 is a high pressure control with an SPST switch. This type of part monitors system pressure and opens or closes an electrical circuit to protect equipment from overpressure conditions. It is used for fan cycling applications, with a differential pressure range of 60 to 150 PSI and a NEMA 1 enclosure.
