- Pressure Connection: 1/4 in Flare Nut
- Pressure Connection Size: 1/4 in
- Mounting Hole Diameter: 1/4 in
- Differential Pressure (PSI): 35 to 200
- NEMA Rating: 1
- Pressure Setting: High
Specifications
| Part Number | P70AA-400C |
| Brand | Johnson Controls |
| Switch Type | SPST |
| Switch Action | Open on Fall |
| Pressure Connection | 1/4 in Flare Nut |
| Type | Low Pressure |
| Range (PSI) | 100 to 470 |
| Capillary Length | 36 in |
| Overall Height | 4 1/4 in |
| Pressure Connection Size | 1/4 in |
| Overall Depth | 2 1/8 in |
| Overall Width | 4 in |
| Mounting Hole Diameter | 1/4 in |
| Item | High Pressure Control |
| Close (PSI) | 200 |
| Differential Pressure (PSI) | 35 to 200 |
| Reset | Auto |
| Enclosure | NEMA 1 |
| Includes | Mounting Bracket |
| Application | Fan Cycling |
| Function | Fan Cycling Control |
| Open (PSI) | 150 psi |
| NEMA Rating | 1 |
| Pressure Setting | High |
| Contact Form | SPST |
| Pressure Range Adjustability | Adjustable |
| Maximum Operating Temperature | 104 Degrees F |
| Pressure Connection Type | Flare |
| Output Current | 24 A |
| Minimum Operating Temperature | 50 Degrees F |
| Pressure Range - Minimum | 100 psi |
| Heat Pump Override | No Override |
| Pressure Type | Differential |
| Input Sensor Type | Pressure Sensor |
| Pressure Differential Max. | 200 psi |
| Body Material | Steel |
| Pressure Range - Maximum | 470 psi |
| Element Type | Bellows |
| Valve Type | Open on Fall of Differential Pressure |
| Number of Mounting Holes | 2 |
| Standards | UL Listed |
| Reset Type | Automatic Reset |
| Body Material Finish | Galvanized |
| Pressure Differential - Minimum | 35 psi |
| Rated Voltage | 120V AC, 208/240V AC |
| Product Type | High Pressure Control |
| Series | P70 |
| Pressure Connection Gender | Female |
Description

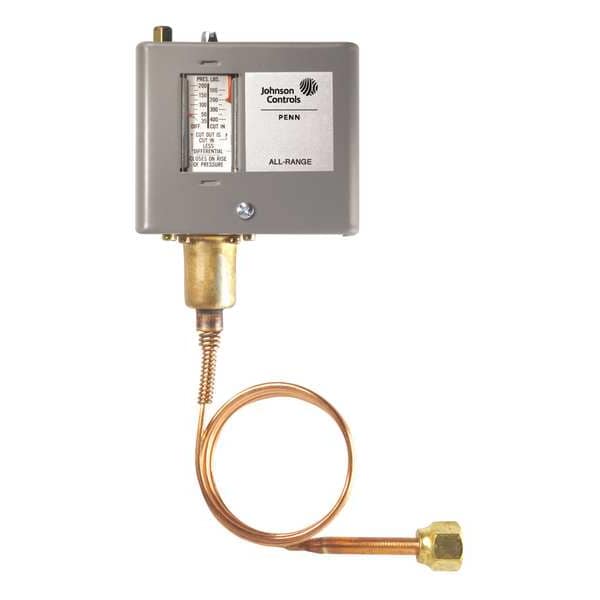

The Johnson Controls P70AA-400C is a high pressure control with a SPST switch. This type of pressure control monitors and regulates system pressure by opening or closing an electrical circuit at a set point. It features a NEMA 1 enclosure and includes a mounting bracket.
