- Pressure Setting Range (In. WC): 0.05 T0 5.0
- Operating Temp. Range (F): -40 to 165
- Sample Line Connection Size: 1/8 in
- Minimum Operating Temperature: -40 Degrees F
- Pressure Type: Differential
- Minimum Pressure Setting: 0.05 in wc
Specifications
| Part Number | P32AF-1C |
| Brand | Johnson Controls |
| Width | 3 1/4 in |
| Sample Line Connector | 1/8"- 27 NPT |
| Application | Duct Heater Control, Humidity Detection and Control, Air Flow Control |
| Pressure Setting Range (In. WC) | 0.05 T0 5.0 |
| Operating Temp. Range (F) | -40 to 165 |
| Depth | 2 1/8 in |
| Height | 5 5/8 in |
| Overall Height | 5 5/8 in |
| Overall Width | 3 1/4 in |
| Sample Line Connection Size | 1/8 in |
| Overall Depth | 2 1/8 in |
| Switch Type | SPDT |
| Mounting Location | Duct |
| Type | HVAC/General Purpose |
| Electrical Rating | 5.8 A @ 120V |
| Differential (In. WC) | .018 To .120 |
| Item | Air Pressure Switch |
| Includes | Mounting Bracket |
| Minimum Operating Temperature | -40 Degrees F |
| Pressure Type | Differential |
| Contact Form | SPDT |
| Minimum Pressure Setting | 0.05 in wc |
| Pressure Setpoint Type | Adjustable |
| Maximum Pressure Setting | 5 in wc |
| Maximum Differential Pressure Setting | 0.12 in wc |
| Maximum Pressure Rating | 1 psig |
| Product Type | Pressure Switch |
| Mounting Orientation | Any Position |
| Number of Switches | 1 |
| Minimum Differential Pressure Setting | 0.018 in wc |
| Reset Type | Automatic Reset |
| Standards | UL listed, CSA Certified |
| Maximum Operating Temperature | 167 Degrees F |
| Sample Line Connector Type | NPT |
| Housing Type | Conduit Box |
| Electrical Connection Type | Screw Terminals |
Description

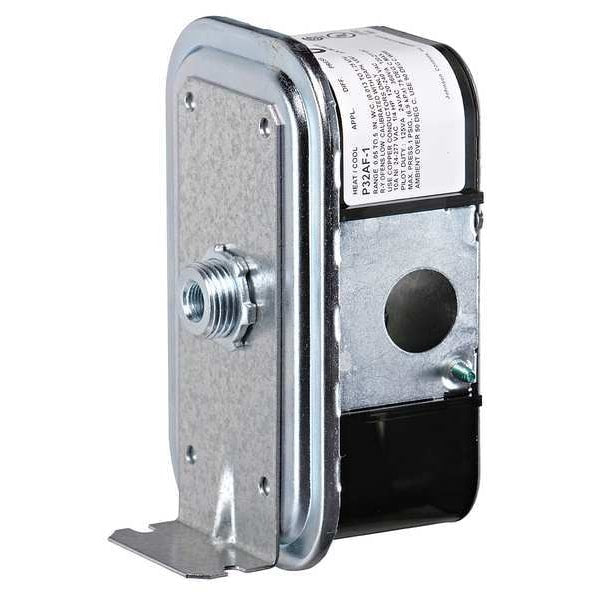

The Johnson Controls P32AF-1C is an air pressure switch, a type of differential pressure switch. It functions as a sensitive SPDT switch with an electrical rating of 5.8 A @ 120V, operating within a pressure setting range of 0.05 to 5.0 In. WC and a temperature range of -40 to 165°F. This switch is used for duct heater control, humidity detection and control, and air flow control applications.
