- Voltage: 120V AC, 240V AC
- Full Load Amps: 4.6/2.3
- Temp. Differential High (F): 20
- Locked Rotor Amps: 144/144 A
- Temp. Differential Low (F): 3
- Cold On Temperature: Adjustable
Specifications
| Part Number | O10-1419 |
| Brand | Ranco |
| Switch Type | Normally Closed |
| Switch Action | Opens on Rise |
| Voltage | 120V AC, 240V AC |
| Full Load Amps | 4.6/2.3 |
| Constant Differential (F) | Constant Cut-in |
| Depth | 2 in |
| Width | 3 13/16 in |
| Height | 2 3/4 in |
| Capillary Length | 72 in |
| Overall Height | 2 3/4 in |
| Overall Length | 3 13/16 in |
| Warm On | Adjustable |
| Control Range (F) | -35 to 15 |
| Temp. Differential High (F) | 20 |
| Application | Commercial Refrigeration and Air Conditioning Systems |
| Warm Off | Adjustable |
| Capillary Type | Capillary |
| Locked Rotor Amps | 144/144 A |
| Item | Freezer Control |
| Pilot Duty Contacts (VA) | 57.5 VA |
| Normally Off (F) | 46 |
| Normally On (F) | Ajustable |
| Type | Extra Low Temp. |
| Temp. Differential Low (F) | 3 |
| Cold Off | Adjustable |
| Includes | (7) Adjustment Screws |
| Construction | NEMA 1 Enclosure |
| Cold On | Adjustable |
| Agency Compliance | NEMA, UL |
| Cold On Temperature | Adjustable |
| Contact Form | SPST |
| Normally On Temperature | Adjustable |
| Product Type | Temperature Control |
| Normally Off Temperature | Adjustable |
| Full Load Current | 24/24 A |
| Temperature Differential - Maximum | 20 Degrees F |
| Control Temperature - Maximum | 15 Degrees F |
| Control Temperature - Minimum | -35 Degrees F |
| Temperature Differential - Minimum | 3 Degrees F |
| Standards | UL |
| Warm On Temperature | Adjustable |
| Cold Off Temperature | Adjustable |
| Pilot Duty Contacts Rating | 57.5 VA |
| Control Type | Constant Cut-In |
| Warm Off Temperature | Adjustable |
Description

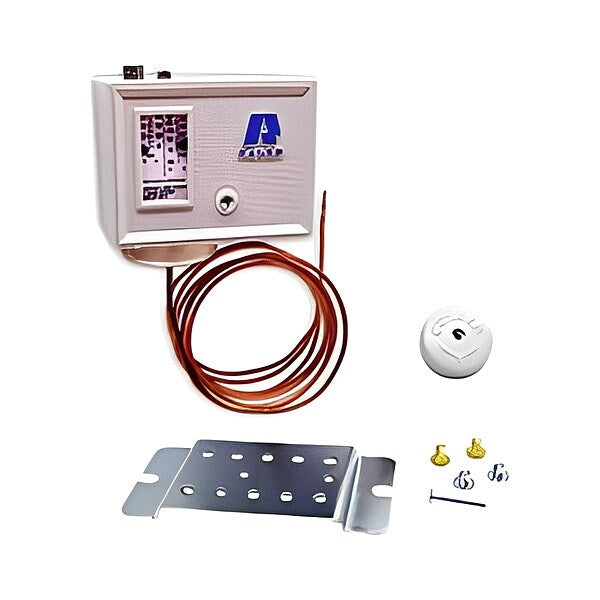

The Ranco O10-1419 is a freezer control, a normally closed SPST temperature control switch. It functions to regulate temperature in commercial refrigeration and air conditioning systems, with a temperature range of -35 to 15 degrees Fahrenheit and a 20-degree high differential. The control operates on 120V AC or 240V AC, with full load amps of 4.6/2.3 and locked rotor amps of 144/144 A, and features a 72-inch capillary.
