- Voltage: 120V AC, 240V AC
- Full Load Amps: 24
- Bulb Size Length: 1-3/8
- Bulb Diameter: 3/8 in
- Locked Rotor Amps: 144/144 A
- Temp. Differential Low (F): 6 to 25
Specifications
| Part Number | O10-1410 |
| Brand | Ranco |
| Switch Type | Normally Open |
| Switch Action | Closes on Rise |
| Voltage | 120V AC, 240V AC |
| Full Load Amps | 24 |
| Bulb Dia. | 3/8 in |
| Depth | 2 in |
| Width | 3 1/2 in |
| Capillary Length | 72 in |
| Height | 2 3/4 in |
| Bulb Size Length | 1-3/8 |
| Bulb Length | 1 3/8 in |
| Overall Length | 3 1/2 in |
| Bulb Diameter | 3/8 in |
| Overall Height | 2 3/4 in |
| Includes | (7) Adjustment Screws |
| Pilot Duty Contacts (VA) | 720 VA |
| Type | Medium Temp. |
| Locked Rotor Amps | 144/144 A |
| Temp. Differential Low (F) | 6 to 25 |
| Item | Refrigeration/Freezer Control |
| Agency Compliance | UL Listed |
| Construction | Bellows are Laser welded, For Extended Life, Compact Case is Zinc Plated, Pressed Steel, Has a NEMA 1 Non-conductive, Non-corrosive Cover which is Retained by a Captive, Accessible Screw |
| Capillary Type | Capillary with Remote Bulb |
| Application | Suitable for Line or Pilot Duty Cycling of Motors, Compressors or Solenoid Valves |
| Control Range (F) | 25 to 75 |
| Temp. Differential High (F) | 3 to 20 |
| Temperature Differential - Maximum | 20 Degrees F |
| Standards | UL |
| Pilot Duty Contacts Rating | 720 VA |
| Control Temperature - Minimum | 25 Degrees F |
| Product Type | Temperature Control |
| Full Load Current | 24/24 A |
| Reset Type | Automatic Reset |
| Temperature Differential - Minimum | 3 Degrees F |
| Control Temperature - Maximum | 75 Degrees F |
| Contact Form | SPST |
Description

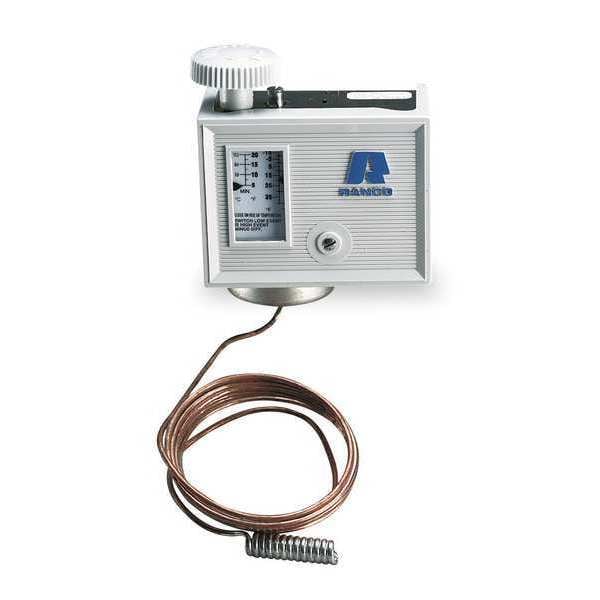

The Ranco O10-1410 is a medium-temperature, normally open temperature control. This type of part regulates temperature by opening or closing an electrical circuit based on a set temperature point. It is rated for 120V AC and 240V AC, with a full load amp rating of 24 and locked rotor amps of 144/144 A, and includes seven adjustment screws.
