- Voltage: 20 to 30V AC, 20 to 30V DC
- Probe Diameter: 1 in
- Maximum Sensing Temperature: 131 Degrees F
- Temperature Accuracy: +/-0.34 Degrees F
- Minimum Operating Temperature: 32 Degrees F
- Maximum Operating Temperature: 150 Degrees F
Specifications
| Part Number | HL-69158NP-0 |
| Brand | Johnson Controls |
| Type | Multi-Function Humidity Device |
| Voltage | 20 to 30V AC, 20 to 30V DC |
| Includes | Integral Temperature Sensor |
| Connection | Wire |
| For Use With | HVAC Equipment |
| Dimensions | 3 1/4 in x 3 1/4 in x 8 1/4 in |
| Manufacturers Warranty Length | 3 yr |
| Overall Height | 3 1/4 in |
| Probe Diameter | 1 in |
| Probe Length | 6 in |
| Overall Width | 3 1/4 in |
| Overall Length | 8 1/4 in |
| Inputs | 0 to 10VDC, 0 to 20mA |
| Outputs | 0 to 10VDC, 0 to 20mA |
| Item | Humidity Sensor |
| Agency Compliance | CAN/CSA E60730-1, CAN/CSA E60730-2-13, CE Certified, cUL Listed, IEC 60730-2-13, UL Listed |
| Standards | CCN XAPX, CE Certified, E27734, IEC 60730-2-13, UL 2043, UL Listed, UL 60730-1 |
| Control Type | Temperature |
| Occupancy Control Sensor | No |
| Compatible With | HVAC Control Systems |
| Control Settings | Off, On |
| Features | Humidity and Temperature Sensor in One Unit |
| Dehumidification Capability | No |
| Measurement Type | Single |
| Maximum Sensing Temperature | 131 Degrees F |
| Power Required | 14 to 30V DC, 20 to 30V AC |
| Relative Humidity Range | 5 to 30% |
| Relative Humidity Accuracy | +/-5% of Full Scale |
| Sensing Element Type | Nickel |
| Temperature Accuracy | +/-0.34 Degrees F |
| Relative Humidity/Dew Point Output | 0 to 10V DC, 0 to 20 mA |
| Minimum Operating Temperature | 32 Degrees F |
| Maximum Operating Temperature | 150 Degrees F |
| Display Type | None |
| Minimum Sensing Temperature | 32 Degrees F |
| Power Type | Electrical |
| Electrical Connection Type | Hardwired |
| Product Type | Duct Temperature and Humidity Sensor |
| Housing Color | Gray |
| Includes Power Supply | Power Supply Included |
| Loop Resistance | 1k ohm |
| Housing Material | Plastic |
| For Use With Building Automation Systems | Building Automation System Compatible |
Description

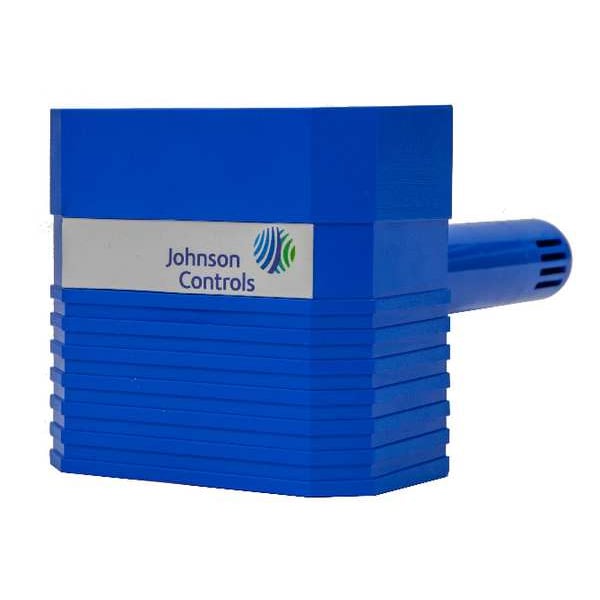

The Johnson Controls HL-69158NP-0 is a multi-function humidity device with an integral temperature sensor. This humidity sensor measures and controls humidity levels in HVAC equipment, operating on 20 to 30V AC or DC. It is UL Listed and CE Certified to standards including UL 60730-1 and IEC 60730-2-13.
