- Temperature Control Range: 35 to 45 Degrees F
- Mounting Hole Diameter: 1/4 in
- Voltage: 24 to 277V AC
- Inductive Amps @ 240V: 8 A
- Locked Rotor Amps @ 120V: 96 A
- Locked Rotor Amps @ 240V: 48 A
Specifications
| Part Number | A11B-1C |
| Brand | Penn |
| Compatible System Type | Pipes, Cooling Coils, Hydronic Coils |
| Application | Heat or Cool |
| Switch Action | Close on Rise |
| Switch Type | SPST |
| Temperature Control Range | 35 to 45 Degrees F |
| Sensing Bulb Dia. | 1/8 in |
| Capillary Length | 48 in |
| Overall Height | 3-1/8 in |
| Mounting Hole Diameter | 1/4 in |
| Bulb Length | 20 ft |
| Overall Width | 2-1/8 in |
| Overall Depth | 2-3/8 in |
| Control Type | Screwdriver |
| Voltage | 24 to 277V AC |
| Mounting | Flat Surface |
| Item | Line Voltage Mechanical Thermostat |
| Contact Rating Resistive @ 277V | 6.93 A |
| Inductive Amps @ 240V | 8 A |
| Locked Rotor Amps @ 120V | 96 A |
| Enclosure Type | Galvanized/Steel |
| Contact Rating Resistive @ 120V | 16 A |
| Sensor Type | Hydraulic Capillary Bulb (Copper) |
| Locked Rotor Amps @ 240V | 48 A |
| Includes | Mounting Hardware, Remote Sensing Bulb |
| Inductive Amps @ 208V | 9.2 A |
| Number of Switches | 1 |
| Resistive Amps @ 208VAC | 9.2 A |
| Contact Rating Resistive @ 240V | 8 A |
| Standards | CSA LR948/361-E-0.2, UL SA516 |
| Inductive Amps @ 120V | 16 A |
| Number of Relay Outputs | 1 |
| Number of Relay Inputs | 1 |
| For Use With | Low Temperature Cut Out for Coil Protection and Pipe Liquid Sensing |
| Thermostat Type | Freeze Protection Indoor Single-Stage Controls |
| Features | Provides Monitoring of the Face Temperature of Evaporator Coils for Freeze Protection, External Temperature Scale, Easy Set Point Adjustment |
| Minimum Control Temperature | 35 Degrees F |
| Changeover Type | Manual |
| Maximum Operating Temperature | 140 Degrees F |
| Minimum Operating Temperature | 0 Degrees F |
| Full Load Amps @ 240V AC | 8 A |
| Number of Poles | 1 |
| Differential Type | Fixed |
| Contact Type | Snap Action |
| Temperature Differential | 12 Degrees F |
| Enclosure NEMA Rating | 1 |
| Contact Rating | 120V AC, 240V AC, 277V AC |
| Sensor Location | Remote |
| Temperature Scale | Fahrenheit/Celsius |
| Electrical Connection Type | Hardwired |
| Mounting Direction | Horizontal, Vertical |
| Maximum Control Temperature | 45 Degrees F |
| Pilot Duty Rating | 125 VA @ 24 to 277V AC |
| Full Load Amps @ 120V AC | 16 A |
| Programming Capability | Not Programmable |
| Housing Material | Steel |
| Enclosure Color | Galvanized |
Description

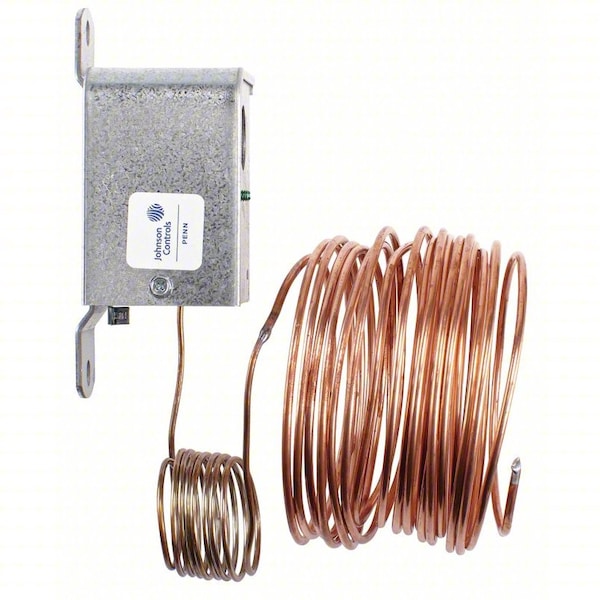

The Penn A11B-1C is a line voltage mechanical thermostat. This SPST thermostat controls temperature in heat or cool applications, with a fixed 35 to 45 degrees Fahrenheit range and auto reset. It operates on 24 to 277V AC with a resistive contact rating of 6.93 A at 277V and is compatible with pipes, cooling coils, and hydronic coils.
