- Voltage: 24VAC
- Display Size: 4.81 sq in
- Digit Size: Easy Read
- Temp. Settings per Day: 4
- Temporary Temperature Hold: Yes
- Temperature Limiting: Yes
Specifications
| Part Number | 1F85U-22PR |
| Brand | White-rodgers |
| Voltage | 24VAC |
| Stages Heat | 4 |
| Mounting Type | Horizontal |
| Mounting Location | Wall |
| Color | Gray |
| Height | 3 3/4" |
| Width | 6" |
| Display Size | 4.81 sq in |
| Depth | 1 1/8 in |
| Digit Size | Easy Read |
| Overall Depth | 1 1/8 in |
| Overall Width | 6 in |
| Overall Height | 3 3/4 in |
| Item | 80 Series Thermostats |
| Control Range | 45 Degrees to 99 Degrees F |
| System Switching | Auto-Heat-Cool-Off |
| Stages Cool | 2 |
| Dual Transformer Compatible | Yes |
| Power Method | Hardwired/Battery |
| 750mV Compatible | Yes |
| Programs per Week | 7 |
| Features | High Contrast Display |
| Low Battery Indicator | Yes |
| Humidification Control | No |
| Programmable Fan | No |
| Temp. Settings per Day | 4 |
| Temporary Temperature Hold | Yes |
| Terminal Designations | C, G, L, O/B/6, RC, RH, W/E, W2, Y, Y2 |
| Agency Compliance | Energy Aware |
| Key Pad Lockout | Yes |
| Batteries Included | Yes |
| Battery Backup | Yes |
| Standards | Energy Aware Certified, NEMA |
| Fan Switching | Auto-on |
| Temperature Limiting | Yes |
| Automatic Changeover | Yes |
| For Use With | Heating and Cooling |
| Display Color | Gray |
| Green Certification or Other Recognition | Energy Aware |
| Filter Indicator | Yes |
| WiFi Capability | No |
| Dehumidification Control | No |
| Display Type | Digital |
| Temporary Program Override | Yes |
| Includes | Mounting Hardware |
| Control Type | Push Button |
| Stages | 2H/2C Conventional, 2H/2C Heat Pump |
| Changeover Type | Automatic |
| Smart Connectivity | No Connectivity |
| Number of Heating Stages - Conventional System | 2 |
| Maximum Operating Temperature | 105 Degrees F |
| Minimum Control Temperature | 45 Degrees F |
| Programming Capability | 5-1-1, 5-2, 7 Day |
| Millivolt Compatible | Yes |
| Application/Stages | Heat and Cool; 2H/2C Conventional, 2H/2C Heat Pump |
| Shape | Rectangle |
| Sensor Location | Remote |
| Operating Temperature Range | 32 Degrees to 105 Degrees F |
| Backlit Screen Color | Gray |
| Maximum Operating Humidity | 90 % |
| System Settings | Heat-Off-Cool |
| Minimum Operating Humidity | 0 % |
| Temperature Differential | 0.6 Degrees F, 1.2 Degrees F |
| Temperature Sensitivity | +/-1 Degrees F |
| Number of Zones | 1 |
| Mounting Direction/Shape | Horizontal |
| Operating Humidity Range | 0% to 90% RH |
| Enclosure NEMA Rating | NEMA |
| Thermostat Type | Low Voltage |
| Number of Heating Stages - Heat Pump System | 2 |
| Temperature Control Range | 45 Degrees to 99 Degrees F |
| Maximum Control Temperature | 99 Degrees F |
| Application | Heat and Cool |
| Filter Change Reminder | Yes |
| Housing Color | Gray |
| Number of Cooling Stages - Heat Pump System | 2 |
| Temperature Readout | Yes |
| Contact Rating | 20 to 30V AC |
| Electrical Connection Type | Hardwired |
| Battery Type | AA Battery |
| Backlit Type | Touch Activated or Continuous with Common Wire |
| Compatible System Type | Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump with Aux, Hydronic Systems, Millivolt |
| Temperature Scale | Fahrenheit/Celsius |
| Includes Batteries | Yes |
| Minimum Operating Temperature | 32 Degrees F |
| Backlit Screen | Yes |
| Mounting Direction | Horizontal |
| Differential Heat | 0.5 Degrees F, 0.75 Degrees F, 1.9 Degrees F |
| Frequency | 50 Hz, 60 Hz |
| Differential Type | Adjustable |
| Fan Settings | Auto-On |
| Differential Cool | 0.9 Degrees F, 1.2 Degrees F, 1.7 Degrees F |
| Requires C-Wire | Yes |
| Temperature settings per day | 0, 2, 4 |
| Number of Cooling Stages - Conventional System | 2 |
| Includes Positive Off | Yes |
| System/Fan Settings | Cool-Heat-On/Auto-On |
Description

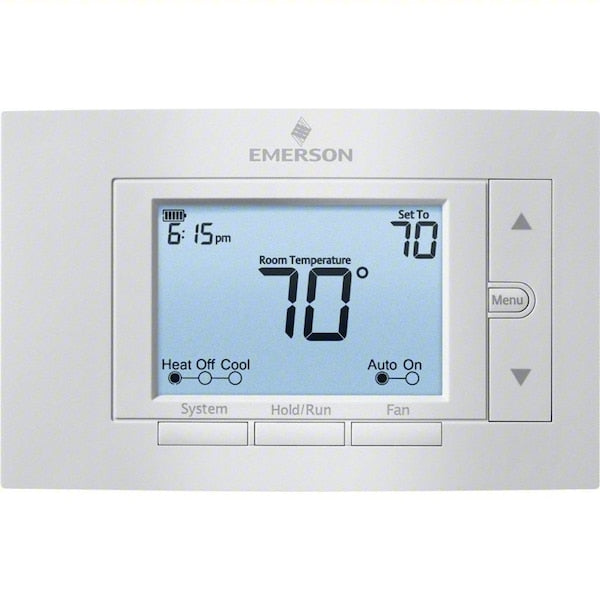

The White-Rodgers 1F85U-22PR is an 80 Series thermostat. This type of thermostat controls heating and cooling systems by sensing ambient temperature and activating equipment to maintain set points. It operates on 24VAC and is compatible with both dual transformer and 750mV systems.
