- Voltage: 20 to 30V AC
- Maximum Temperature Control: 99 Degrees F
- Mounting Hole Diameter: 3/16 in
- Wi-Fi Frequency: 2.4 GHz
- Temporary Program Override: Yes
- Temporary Temperature Hold: Yes
Specifications
| Part Number | 1F76U-22WFB |
| Brand | Emerson Climate Technologies |
| Voltage | 20 to 30V AC |
| Dual Transformer Compatible | No |
| Mounting Direction | Horizontal |
| Maximum Temperature Control | 99 Degrees F |
| Filter Change Reminder | Yes |
| Overall Width | 5 1/8 in |
| Overall Depth | 7/8 in |
| Overall Height | 3 1/8 in |
| Mounting Hole Diameter | 3/16 in |
| Item | Wi-Fi Low Voltage Thermostat |
| Shape | Rectangle |
| Wi-Fi Frequency | 2.4 GHz |
| Backlit Screen | Yes |
| Backlit Type | Always On, Touch Activated |
| Temporary Program Override | Yes |
| Control Type | Touch Screen |
| Amazon Alexa Compatible | Yes |
| Temporary Temperature Hold | Yes |
| Temperature Adjustment | On-Off |
| Includes Positive Off | Yes |
| Low Battery Indicator | Yes |
| Mounting Direction/Shape | Horizontal |
| System Settings | Auto-Cool-Heat-Off |
| Number of Switches | 0 |
| Temperature Control Range | 32 Degrees F to 99 Degrees F |
| Humidification Control | Yes |
| Differential Type | Adjustable |
| Wi-Fi Specifications | 802.11a, 802.11b, 802.11g, 802.11n |
| Network Protocol Compatibility | None |
| Battery Backup | Yes |
| Number of Relay Outputs | 4 |
| External Power Source | Furnace |
| Wireless | Yes |
| Frequency | 50 Hz, 60 Hz |
| Thermostat Type | Low Voltage |
| Fan Settings | Circulate |
| Stages | 1H/1C, 1H/2C, 2H/1C, (2H/1C) |
| Terminal Designations | AUX, C, G, O/B*, R, W, Y |
| Application/Stages | Heat and Cool |
| Contact Type | Relay |
| Phase | 1 |
| Key Pad Lockout | Yes |
| Compatible System Type | Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump with Aux, Heat Pump without Aux, Hydronic Systems |
| Smart Capabilities | Geofencing, Learning |
| Operating Humidity Range | 90% |
| Number of Relay Inputs | 0 |
| Smart Connectivity | Wi-Fi Control |
| Contact Rating | 20 to 30V AC |
| Power Loss Settings Backup | Yes |
| Millivolt Compatible | No |
| Includes | Mounting Hardware, Wall Anchors, Wiring Label |
| Differential Cool | 0.9 Degrees F |
| Series | Sensi Lite Smart |
| Number of Cooling Stages - Heat Pump System | 1 |
| Compatible Software/Device | Alexa, Android, Google Assistant |
| Includes Batteries | Yes |
| Number of Heating Stages - Heat Pump System | 2 |
| Differential Heat | 0.5 Degrees F |
| Electrical Connection Type | Screw Terminals |
| Number of Heating Stages - Conventional System | 1 |
| Dehumidification Control | Yes |
| Battery Type | (2) AAA Batteries |
| Display Type | Digital |
| Changeover Type | Automatic |
| Number of Zones | 3 |
| Standards | Energy Star |
| Application | Heat and Cool |
| Minimum Temperature Control | 32 Degrees F |
| Google Home Compatible | Yes |
| Temperature settings per day | 8 |
| Temperature Limiting | Yes |
| Temperature Readout | Yes |
| Housing Color | Black |
| Pilot Duty Rating | 1.5 A @ 24V AC |
| Number of Cooling Stages - Conventional System | 2 |
| Temperature Scale | Fahrenheit/Celsius |
| Temperature Differential | 1.2 Degrees F |
| Temperature Sensitivity | +/-1.0 Degrees F |
| Housing Material | Plastic |
| Programming Capability | Fully Customizable (In-App Based) |
| Housing Type | Standard Housing |
Description

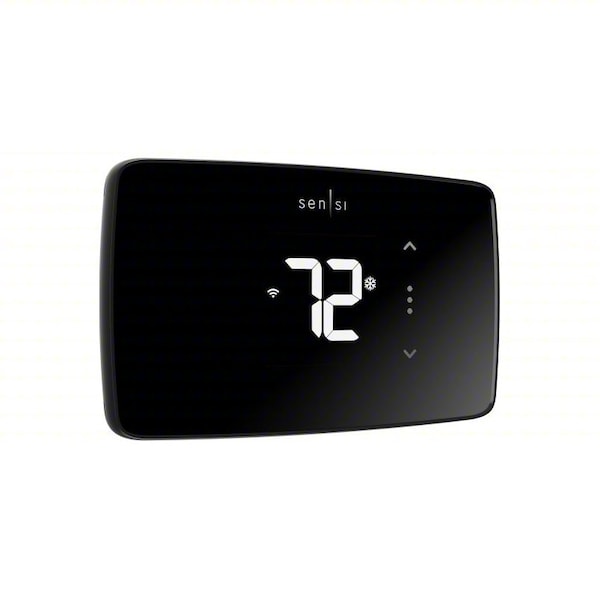

The Emerson Climate Technologies 1F76U-22WFB is a Wi-Fi low voltage thermostat. It controls temperature automatically up to 99 degrees F, operating on 20 to 30V AC and connecting via 2.4 GHz Wi-Fi. The touch screen control features an always-on, touch-activated backlit display and supports temporary program override.
