- Mounting Hole Diameter: 1/4 in
- Temperature Control Range: 15 to 55 Degrees F
- Voltage: 120 to 240V AC
- Locked Rotor Amps @ 120V: 36 A, 96 A
- Inductive Amps @ 240V: 3 A, 8 A
- Inductive Amps @ 120V: 6 A, 16 A
Specifications
| Part Number | 134-1504 |
| Brand | Siemens |
| Application | Cool Only |
| Switch Action | Open/Close on Rise |
| Switch Type | DPST |
| Number of Cooling Stages | 1 |
| Number of Heating Stages | 1 |
| Capillary Length | 20 ft |
| Sensing Bulb Dia. | 1/8 in |
| Mounting Hole Diameter | 1/4 in |
| Overall Depth | 2-1/2 in |
| Bulb Length | 20 ft |
| Overall Width | 4 in |
| Overall Height | 3-1/4 in |
| Temperature Control Range | 15 to 55 Degrees F |
| Control Type | Screwdriver |
| Voltage | 120 to 240V AC |
| Item | Line Voltage Mechanical Thermostat |
| Includes | Mounting Bracket, Remote Sensing Bulb |
| Sensor Type | Hydraulic Capillary Bulb (Copper) |
| Enclosure Type | Galvanized/Steel |
| Locked Rotor Amps @ 120V | 36 A, 96 A |
| Inductive Amps @ 240V | 3 A, 8 A |
| Inductive Amps @ 120V | 6 A, 16 A |
| Locked Rotor Amps @ 240V | 18 A, 48 A |
| Number of Switches | 1 |
| Standards | CSA Certified, UL Listed |
| Contact Rating Resistive @ 240V | 6 A, 8 A |
| Resistive Amps @ 208VAC | 6 A, 9.2 A |
| Thermostat Type | Freeze Protection Indoor Single-Stage Controls |
| Contact Rating Resistive @ 277V | 6 A, 7.2 A |
| For Use With | Supply Fan Motor and/or Outside Air Dampers |
| Contact Rating Resistive @ 120V | 6 A, 16 A |
| Features | Manual Reset |
| Electrical Connection Type | Screw Terminal |
| Contact Rating | 120 to 240V AC |
| Enclosure Color | Gray |
| Maximum Control Temperature | 55 Degrees F |
| Temperature Sensitivity | 15°F to 55°F |
| Full Load Amps @ 120V AC | 6 A, 16 A |
| Pilot Duty Rating | 125 VA @ 24 to 600V AC; 57.5 VA @ 120 to 300V DC |
| Number of Poles | 2 |
| Sensor Location | Remote |
| Minimum Control Temperature | 15 Degrees F |
| Temperature Scale | Fahrenheit/Celsius |
| Differential Type | Fixed |
| Temperature Differential | 5 Degrees F |
| Mounting Direction | Horizontal |
| Full Load Amps @ 240V AC | 8 A |
| Programming Capability | Not Programmable |
| Housing Material | Steel |
Description

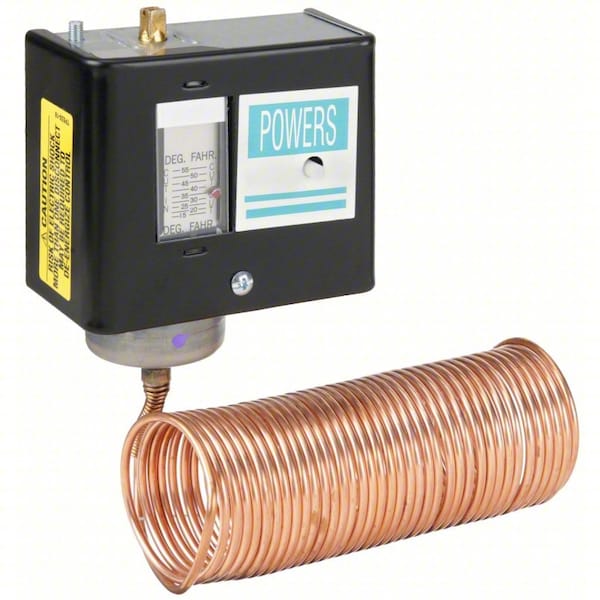

The Siemens 134-1504 is a line voltage mechanical thermostat. This thermostat controls cooling-only systems by opening and closing a DPST switch based on temperature, with a control range of 15 to 55 degrees Fahrenheit and a hydraulic capillary bulb sensor. It operates on 120 to 240V AC and is adjusted using a screwdriver.
