- Voltage: 125V AC
- Amps: 40 A
- Wire Size Max: #8 AWG
- Wire Size Min: #14 AWG
- Contact HP @ 120V: 2 hp
- NEMA Rating: 1
Specifications
| Part Number | T7401B |
| Brand | Intermatic |
| Voltage | 125V AC |
| Operation Mode | 7 Days |
| Amps | 40 A |
| Enclosure Type | STEEL |
| Min. Time Setting | 3.5 hr |
| Depth | 4 in |
| Height | 12 1/2 in |
| Width | 8 1/4 in |
| Product Width | 9 in; 228.9 mm |
| Product Depth | 3.75 in; 95.25 mm |
| Wire Size Max | #8 AWG |
| Product Height | 13.125 in; 333.3 mm |
| Wire Size Min | #14 AWG |
| Overall Width | 9 in |
| Overall Depth | 3 3/4 in |
| Overall Height | 13 1/8 in |
| Item | Electromechanical Timer |
| Max. Time Setting | 21 hr |
| Contact Form | SPST |
| Max. On/Off Cycles | 3 |
| Day Skipper | Yes |
| Number of Trippers Included | 14 |
| Time Setting Range | 3-1/2 hr. to 21 hr. |
| Number of Poles | 4 |
| Extra Trippers | 11Z966 |
| Type | 7-Day |
| Description/Special Features | Heavy-duty Clutchless Gears Prevent Slipping |
| Mount | Hole Wall |
| Contact HP @ 120V | 2 hp |
| Nominal Max. Time Setting | 7 day |
| NEMA Rating | 1 |
| Contact HP @ 240V | 5 hp |
| Standards | cCSAus, cULus |
| Product Type | Timer |
| Skipper Wheel Operation Mode | Not Included |
| Operating Temperature Max | 130°C |
| Inductive Load Ratings | 40 A, 120 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz; 40 A, 277 VAC, 60 Hz |
| UL Cerfication File Number | UL917 |
| Motor Three Phase Ranges | 7 1/2 HP, 28 FLA @ 208 VAC, 60 Hz; 10 HP, 28 FLA @ 240 VAC, 60 Hz |
| Number Of Circuits | 4 |
| Pilot Duty Load Ratings Ranges | 1000 VA, 120-277 VAC, Per Pole, 60 Hz |
| Has Manual Override CVL | Yes |
| Packaging Applications | Heating; Air Conditioning; Pumps; Indoor/Outdoor Lighting; Motors; Signs; Filters; Fans |
| Switch Type | 4-PST/NO |
| Motor Three Phase Load Ratings | 7 1/2 HP, 28 FLA @ 208 VAC, 60 Hz; 10 HP, 28 FLA @ 240 VAC, 60 Hz |
| UL Certification | cULus |
| Electronic Ballast Load Ratings Ranges | 16 A, 277 VAC, 60 Hz |
| Motor Single Phase Load Ratings | 2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz |
| Input Voltage Ranges | 120 VAC, 60 Hz |
| Resistive Load Ratings | 40 A, 120 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz; 40 A, 277 VAC, 60 Hz; 40 A, 480 VAC, 60 Hz |
| Inductive Load Ratings Ranges | 40 A, 120-277 VAC, 60 Hz |
| Maximum On Off Operations | 28 |
| Applications | Timing/Scheduling ON/OFF; Indoor Lighting Control |
| Operating Temperature Min | -40°C |
| Application Compatibilities | LED; HID |
| Wiring Option | Terminals |
| CSA Certification | cCSAus |
| Minimum On Off Time | 3.5 hours |
| Power Consumption Max W | 3 W |
| Tungsten Load Ratings | 40 A, 120 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz; 40 A, 277 VAC, 60 Hz |
| Tungsten Load Ratings Ranges | 40 A, 120-277 VAC, 60 Hz |
| Resistive Load Ratings Ranges | 40 A, 120-480 VAC, 60 Hz |
| Motor Single Phase Ranges | 2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz |
| Electronic Ballast Load Ratings | 16 A, 277 VAC, 60 Hz |
| Solutions | Machinery & Pumps; Panel Integrators |
| Pilot Duty Load Ratings | 1000 VA, 120 VAC, 60 Hz; 1000 VA, 208 VAC, 60 Hz; 1000 VA, 240 VAC, 60 Hz; 1000 VA, 277 VAC, 60 Hz |
| Market | Commercial; Residential |
| Input Voltage Range(s) | 120 VAC, 60 Hz |
| Operating Temperature Min (°F) | -40 |
| Maximum Power Consumption (W) | 3 W |
| Pilot Duty (NO) | 1000 VA, 120 VAC, 60 Hz, 1000 VA, 208 VAC, 60 Hz, 1000 VA, 240 VAC, 60 Hz, 1000 VA, 277 VAC, 60 Hz |
| Electronic Ballast | 16 A, 277 VAC, 60 Hz |
| Has Manual Override | Yes |
| Operating Temperature Max (°F) | 130 |
| Tungsten Range(s) | 40 A, 120-277 VAC, 60 Hz |
| Resistive | 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz, 40 A, 480 VAC, 60 Hz |
| Tungsten (NO) | 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz |
| Maximum ON/OFF Operations | 28 |
| Inductive | 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz |
| Features | Separate Clock Motor Terminals |
| Skipper Wheel | Not Included |
| Minimum ON/OFF Times | 3.5 hours |
| Operating Temperature Min (°F) | -40 |
| Operating Temperature Max (°F) | 130 |
| Number of Trippers - Maximum | 14 |
| Current Rating - Maximum | 40 A |
| Mounting Style | Surface |
| NEMA Enclosure Rating | 1 |
| Time Setting - Minimum | 3.5 hr |
| Operating Temperature - Minimum | -40 Degrees F |
| Operating Temperature - Maximum | 130 Degrees F |
| Application | Lighting |
| Indoor/Outdoor Usage | Indoor |
| Time Setting - Maximum | 7 day |
| On/Off Cycles - Maximum | 28 |
| Horsepower @ 120V - Maximum | 2 hp |
| AC Voltage Rating | 120V AC |
| Horsepower @ 240V - Maximum | 5 hp |
| Series | T7000B |
| Compatible Lighting | HID, LED |
| Body Material | Steel |
| Time Minimum Setting | 3.5 hr. |
| Time Maximum Setting | 7 Days |
Description

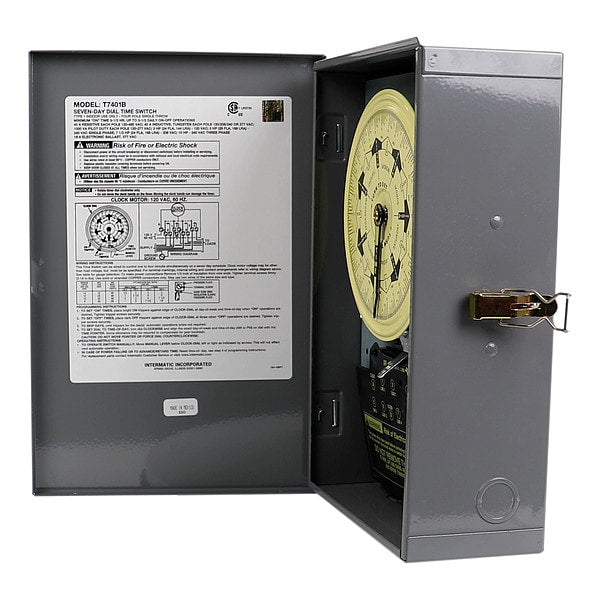

The Intermatic T7401B is a 7-day electromechanical timer with a steel enclosure. This timer controls electrical loads by opening and closing contacts according to a programmed schedule, featuring heavy-duty clutchless gears to prevent slipping. It operates at 125V AC and 40 A, with a NEMA 1 rating and a contact rating of 2 hp at 120V.
