- Voltage: 125250/277
- Air Connection Size: 1/4 in
- Conduit Size: 3/4 in
- Max. Safe Operating Temp. (F): -20 to 140
- Case Material: Painted Ferrous
- Signal Pressure - Maximum: 24 psi
Specifications
| Part Number | P658A1013 |
| Brand | Honeywell |
| Air Connections | Barb Fitting for 1/4 OD Plastic Tubing |
| Voltage | 125250/277 |
| Contact Action | Makes R to B and Breaks R to W on a Pressure Fall |
| Max. Safe Air PSI | 30 psi |
| Depth | 2 in |
| Width | 3 3/8 in |
| Height | 5 3/8 in |
| Air Connection Size | 1/4 in |
| Overall Depth | 5 3/8 in |
| Overall Width | 2 in |
| Overall Length | 3 3/4 in |
| Conduit Size | 3/4 in |
| Item | Pneumatic-Electric Switch |
| Includes | Screw terminals |
| Throttling Range | 2 to 24 |
| Max. Safe Operating Temp. (F) | -20 to 140 |
| Control Range | 2 to 24 psi |
| Agency Compliance | CSA Certified, UL Listed |
| Type | Pneumatic Signal to Activate Electric Switch, Surface Mount, with Case |
| Standards | CSA, UL Listed |
| Mounting Style | Surface |
| Application | Day-Night Control, Electric Heating Systems, Electric Heaters, Fan Control, Interlock Functions, Pumps |
| Product Type | Pressure Control |
| Resistive Load Current @ 240V AC | 25 A |
| Air Connection Type | Barbed Hose |
| Case Material | Painted Ferrous |
| Locked Rotor Current @ 120V AC | 25 A |
| Locked Rotor Current @ 240V AC | 25 A |
| Signal Pressure - Maximum | 24 psi |
| Pilot Duty @ 240V AC | 750 VA |
| Switch Action | Normally Closed |
| Diaphragm Material | Neoprene |
| Full Load Current @ 240V AC | 25 A |
| Number of Function | Dual Function |
| Air Connection Gender | Male |
| Electrical Connections | Screw Terminal |
| Operating Temperature - Maximum | 140 Degrees F |
| Number of Switches | 2 |
| Pilot Duty @ 120V AC | 750 VA |
| Allowable Pressure - Maximum | 30 psi |
| Signal Pressure - Minimum | 2 psi |
| Operating Temperature - Minimum | 40 Degrees F |
| Transmitter Output | None |
| Contact Form | SPDT |
| Resistive Load Current @ 120V AC | 25 A |
| Full Load Current @ 120V AC | 25 A |
| Pressure Differential | 2 psi |
Description

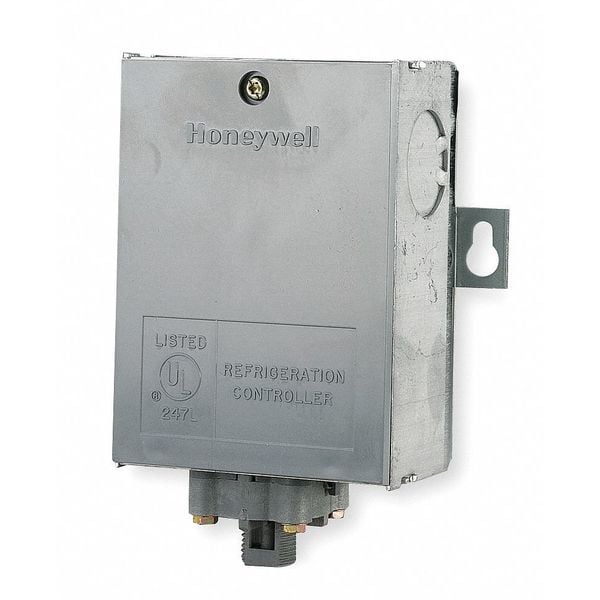

The Honeywell P658A1013 is a pneumatic-electric switch that converts a pneumatic signal into an electric switch activation. It is a surface-mount, single-pole double-throw (SPDT) switch rated for 125/250/277 VAC and operates within a -20 to 140°F temperature range. The switch includes screw terminals and a barb fitting for 1/4-inch OD plastic tubing, and it is CSA and UL Listed.
