- Voltage: 208/240V AC
- Amps: 40 A
- Enclosure Material: Steel
- High Pressure (Open High) Cut-Out: 3.5 (1.6)
- AC Voltage Rating: 208/240V AC
- NEMA Enclosure Rating: 1
Specifications
| Part Number | 8045-20 |
| Brand | Paragon |
| Voltage | 208/240V AC |
| Amps | 40 A |
| Contact Type | SPDT |
| Max. On/Off Cycles | 1 to 6 Per Day, Minimum of 4 Hours Between Successive Defrost Cycles |
| Defrost Time (Minutes) | 4 to 110, 2 min Increments |
| Adjustable Length of Defrost | 4-110 minutes |
| Item | Defrost Control Timer |
| Enclosure Material | Steel |
| Termination Type | Time |
| Defrost Initiation | Time |
| Switch Arrangement for Contacts 1-3 | Open |
| Agency Approvals | UL Listed|UL Recognized |
| Series Application | 8045 Series Electric Heat, Hot Gas, or Compressor Shutdown Defrosting, 50Hz available |
| Switch Arrangement for Contacts 2-4 | Closed |
| Electrical Rating | 208-240V AC, 60 Hz; 208-240V AC, 50 Hz |
| Switch Rating | 120-240V AC, 690VA pilot duty, 40 Amps, 2HP (per pole) |
| Enclosure | Heavy Duty Steel |
| High Pressure (Open High) Cut-Out | 3.5 (1.6) |
| Termination | Time |
| AC Voltage Rating | 208/240V AC |
| Defrost Time - Maximum | 110 min |
| Contact Form | SPDT-NO/NC |
| Standards | UL Listed |
| Current Rating - Maximum | 40 A |
| On/Off Cycles - Maximum | 6 |
| Display Type | Mechanical |
| NEMA Enclosure Rating | 1 |
| Defrost Time - Minimum | 4 min |
| Initiation | Time |
| Horsepower @ 240V - Maximum | 2 hp |
| Horsepower @ 120V - Maximum | 2 hp |
| Series | 8000 |
Description

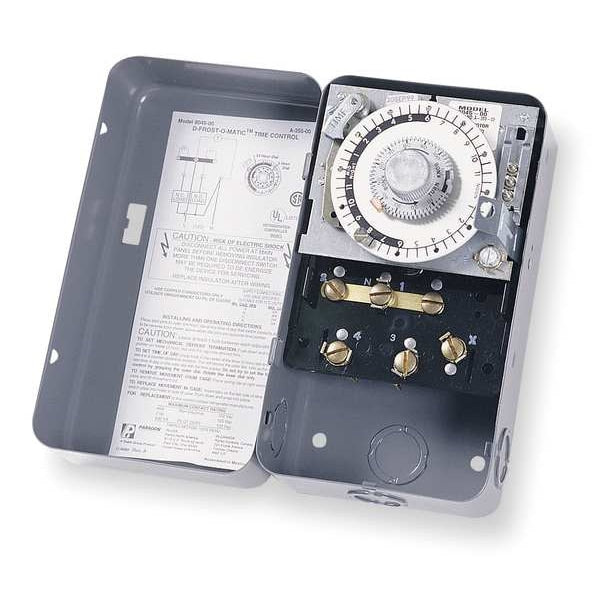

The Paragon 8045-20 is a defrost control timer switch with SPDT contacts rated for 208/240V AC and 40 amps. It is housed in a steel enclosure and is used in the 8045 Series for electric heat, hot gas, or compressor shutdown defrosting applications.
