- Coil Voltage: 110V AC
- HP @ 3 Phase - 575V: 60 hp
- Signalling Circuit Frequency: 25 to 400 Hz
- Rated Breaking Capacity: 1100 A @ 440V
- Switching Voltage: 17 V (Signalling Circuit)
- Overvoltage Category: CAT III
Specifications
| Part Number | LC1D80F7 |
| Brand | Schneider Electric |
| Auxiliary Contact Form | 1NC/1NO |
| Coil Voltage | 110V AC |
| Number of Poles | 3 |
| Reversing Capability | Non-Reversing |
| Terminal Connection Type | Screw Clamp |
| Working Height | Up to 9842.52 ft |
| Overall Depth | 130 mm |
| Overall Height | 127 mm |
| Overall Width | 85 mm |
| Item | IEC Magnetic Contactor |
| Standards | CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, GL, RINA, BV, DNV, LROS, CCC, GOST, UL, CSA, THIEC 60068-2-30 |
| HP @ 3 Phase - 575V | 60 hp |
| Series | LC1D |
| Features | Without Built-In Suppressor Module |
| Application | Motor Control, Resistive Load |
| Switching Current | 5 mA (Signalling Circuit) |
| Includes Protective Cover | Yes |
| Net Weight | 1.59 kg |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Hold VA | 26 VA |
| Fire Rating | UL 94 V1 |
| Non-Overlap Time | 1.5 ms |
| Inrush VA | 245 VA |
| Rated Breaking Capacity | 1100 A @ 440V |
| Switching Voltage | 17 V (Signalling Circuit) |
| Overvoltage Category | CAT III |
| Tightening Torque | 1.2 Nm (Control Circuit), 12 Nm (Power Circuit) |
| Max. Operating Watts | 22 kW (at 220 to 230V AC 50/60 Hz AC-3), 37 kW (at 380 to 400V AC 50/60 Hz AC-3), 45 kW (at 415 to 440V AC 50/60 Hz AC-3), 55 kW (at 500V AC 50/60 Hz AC-3), 45 kW (at 660 to 690V AC 50/60 Hz AC-3), 15 kW (at 400V AC 50/60 Hz AC-4), 22 kW (at 220 to 230V AC 50/60 Hz AC-3e), 37 kW (at 380 to 400V AC 50/60 Hz AC-3e), 45 kW (at 415 to 440V AC 50/60 Hz AC-3e), 55 kW (at 500V AC 50/60 Hz AC-3e), 45 kW (at 660 to 690V AC 50/60 Hz AC-3e) |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Operating Speed | 3600 cycles per hr |
| Control Circuit Voltage Limits | Operational AC: 0.85 to 1.1 Uc (at -40 to 55°C 60 Hz), 0.8 to 1.1 Uc (at -40 to 55°C 50 Hz), 1 to 1.1 Uc (at 55 to 70°C 50/60 Hz); Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz) |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 1100 A @ 440V (Power Circuit) |
| Shock Resistance | 10 G for 11 ms (Contactor Closed), 8 G for 11 ms (Contactor Open) |
| Operating Time | 20 to 35 ms (Closing), 6 to 20 ms (Opening) |
| Electrical Durability | 0.8 Mcycles (125 A, AC-1, Less than 440 V); 1.5 Mcycles (80 A, AC-3, Less than 440 V); 1.5 Mcycles (80 A, AC-3e, Less than 440 V) |
| Mechanical Durability | 4 Mcycles |
| Vibration Resistance | 3 G (Contactor Closed), 2 G (Contactor Open) |
| Impedance | 0.8 mOhm |
| IP Rating | IP20 |
| Fuse Amps | 10 A (Signalling Circuit), 200 A (Type 1 Power Circuit), 160 A (Type 2 Power Circuit) |
| Rated Short-Time Withstand Current | 640 A (at 40°C for 10 s Power Circuit), 990 A (at 40°C for 1 s Power Circuit), 135 A (at 40°C for 10 min Power Circuit), 320 A (at 40°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit) |
| Environmental Attributes | Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3 |
| Impulse Withstand Voltage | 8 kV |
| Watts Loss | 6 to 10W |
| Rated Insulation Volts | 600/1000V (Power Circuit), 600/690V (Signalling Circuit) |
| Horsepower @ Three Phase - 480V AC | 60 hp |
| Full Load Current - Inductive | 80 A |
| Horsepower @ Three Phase - 208V AC | 30 hp |
| Horsepower @ Single Phase - 240V AC | 15 hp |
| Full Load Current - Resistive | 125 A |
| Horsepower @ Single Phase - 120V AC | 7 1/2 hp |
| Horsepower @ Three Phase - 240V AC | 30 hp |
| Mounting Style | Plate, Rail |
| Maximum Voltage Rating | 690V AC, 300V DC |
| Conventional Free Air Thermal Current | 10 A (at 60°C Signalling Circuit), 125 A (at 60°C Power Circuit) |
Description

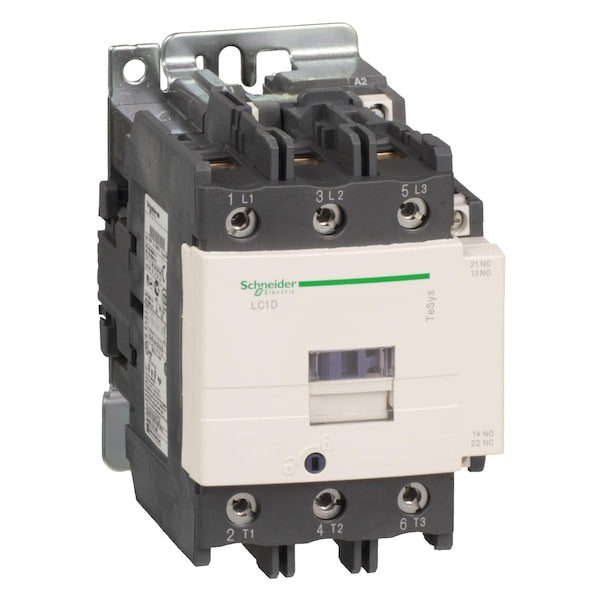

The Schneider Electric LC1D80F7 is an IEC magnetic contactor from the LC1D series, rated for 80A and 60 hp at 575V three-phase, with a 110V AC coil and screw clamp terminals. This contactor is a non-reversing, three-pole switching device used to control motor and resistive loads. It is certified to standards including UL 508, CSA C22.2 No 14, IEC 60947-4-1, and EN 60947-4-1, with approvals from GL, RINA, BV, DNV, LROS, CCC, and GOST.
| Shipping | This item ships to USA |
Processing Time:
All orders at Pro Replacement Parts are processed and shipped within 1-2 business days. For orders placed before 12 PM EST, we offer same-day shipping whenever possible. We aim to ensure that your order reaches you as quickly as possible.
Delivery Timeframe:
Our standard delivery window is between 3-8 business days, depending on your location. We partner with trusted carriers such as FedEx, UPS, USPS, and other local carriers to ensure your items arrive safely and on time.
Shipping Methods:
- Items exceeding 50” in width or 70 lbs in weight are shipped via Freight Carrier. You will be contacted by the carrier to schedule a delivery time.
- Items under 50” in width and 70 lbs in weight will be shipped via UPS or FedEx as a small package service.
Freight Shipments:
Freight shipments are delivered curbside in residential areas. You may need assistance to move the package indoors, or you can unbox the shipment and carry each piece inside individually. While some drivers may help move a shipment into a garage or carport, this is not guaranteed. For Inside Delivery requests, please contact us at the time of your order (additional fees apply). Email: support@proreplacementparts.com
Inspection and Damage:
Upon delivery, please inspect the carton and contents for any damage. If you find any damage, document it on the driver's delivery receipt and contact us immediately at support@proreplacementparts.com no later than 24 hours from the delivery time. We cannot accept responsibility for damage that is not noted on the driver's delivery receipt at the time of delivery.
Order Cancellations:
All order cancellations must be requested within 24 hours of placing the order. After this period, our standard return policy will take effect.
Thank you for choosing Pro Replacement Parts. We are dedicated to providing you with the best service and ensuring your orders are delivered in a timely and efficient manner. If you have any questions or need further assistance, please don't hesitate to contact us.
Wide Selection of Brands: At our store, you'll find an extensive range of electric motors from top brands in the industry. We carefully select our inventory to ensure that you have access to the best and most reliable products on the market. Whether you need a motor for an industrial machine, a household appliance, or a specialized project, we have something for everyone.
Customer-Centric Service: We believe in putting our customers first. Our team is committed to providing you with personalized service and support throughout your buying journey. From helping you choose the right motor for your needs to answering any queries you have after purchase, we're here to assist you every step of the way.
Competitive Pricing: We strive to offer our high-quality electric motors at competitive prices. Our goal is to provide you with the best value, ensuring that you get a top-performing motor without breaking the bank. Plus, our regular deals and promotions mean that you can save even more when you shop with us.
Reliable Shipping and Handling: While we don't offer same-day shipping, we understand the importance of timely delivery. That's why we work with reliable shipping partners to ensure that your order is processed, shipped, and delivered efficiently. You can trust us to get your electric motor to you in excellent condition and within a reasonable timeframe.
Knowledgeable Support: Our team is knowledgeable about the wide range of electric motors we offer. We can provide you with detailed information and specifications for each product, helping you make an informed decision. If you have any questions or need advice, our experts are just a call or email away.
Your purchase is covered by the Manufacturer’s Limited Warranty.
For return/refund information, please visit our Returns & Refunds page.
Description
- Coil Voltage: 110V AC
- HP @ 3 Phase - 575V: 60 hp
- Signalling Circuit Frequency: 25 to 400 Hz
- Rated Breaking Capacity: 1100 A @ 440V
- Switching Voltage: 17 V (Signalling Circuit)
- Overvoltage Category: CAT III
Specifications
| Part Number | LC1D80F7 |
| Brand | Schneider Electric |
| Auxiliary Contact Form | 1NC/1NO |
| Coil Voltage | 110V AC |
| Number of Poles | 3 |
| Reversing Capability | Non-Reversing |
| Terminal Connection Type | Screw Clamp |
| Working Height | Up to 9842.52 ft |
| Overall Depth | 130 mm |
| Overall Height | 127 mm |
| Overall Width | 85 mm |
| Item | IEC Magnetic Contactor |
| Standards | CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, GL, RINA, BV, DNV, LROS, CCC, GOST, UL, CSA, THIEC 60068-2-30 |
| HP @ 3 Phase - 575V | 60 hp |
| Series | LC1D |
| Features | Without Built-In Suppressor Module |
| Application | Motor Control, Resistive Load |
| Switching Current | 5 mA (Signalling Circuit) |
| Includes Protective Cover | Yes |
| Net Weight | 1.59 kg |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Hold VA | 26 VA |
| Fire Rating | UL 94 V1 |
| Non-Overlap Time | 1.5 ms |
| Inrush VA | 245 VA |
| Rated Breaking Capacity | 1100 A @ 440V |
| Switching Voltage | 17 V (Signalling Circuit) |
| Overvoltage Category | CAT III |
| Tightening Torque | 1.2 Nm (Control Circuit), 12 Nm (Power Circuit) |
| Max. Operating Watts | 22 kW (at 220 to 230V AC 50/60 Hz AC-3), 37 kW (at 380 to 400V AC 50/60 Hz AC-3), 45 kW (at 415 to 440V AC 50/60 Hz AC-3), 55 kW (at 500V AC 50/60 Hz AC-3), 45 kW (at 660 to 690V AC 50/60 Hz AC-3), 15 kW (at 400V AC 50/60 Hz AC-4), 22 kW (at 220 to 230V AC 50/60 Hz AC-3e), 37 kW (at 380 to 400V AC 50/60 Hz AC-3e), 45 kW (at 415 to 440V AC 50/60 Hz AC-3e), 55 kW (at 500V AC 50/60 Hz AC-3e), 45 kW (at 660 to 690V AC 50/60 Hz AC-3e) |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Operating Speed | 3600 cycles per hr |
| Control Circuit Voltage Limits | Operational AC: 0.85 to 1.1 Uc (at -40 to 55°C 60 Hz), 0.8 to 1.1 Uc (at -40 to 55°C 50 Hz), 1 to 1.1 Uc (at 55 to 70°C 50/60 Hz); Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz) |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 1100 A @ 440V (Power Circuit) |
| Shock Resistance | 10 G for 11 ms (Contactor Closed), 8 G for 11 ms (Contactor Open) |
| Operating Time | 20 to 35 ms (Closing), 6 to 20 ms (Opening) |
| Electrical Durability | 0.8 Mcycles (125 A, AC-1, Less than 440 V); 1.5 Mcycles (80 A, AC-3, Less than 440 V); 1.5 Mcycles (80 A, AC-3e, Less than 440 V) |
| Mechanical Durability | 4 Mcycles |
| Vibration Resistance | 3 G (Contactor Closed), 2 G (Contactor Open) |
| Impedance | 0.8 mOhm |
| IP Rating | IP20 |
| Fuse Amps | 10 A (Signalling Circuit), 200 A (Type 1 Power Circuit), 160 A (Type 2 Power Circuit) |
| Rated Short-Time Withstand Current | 640 A (at 40°C for 10 s Power Circuit), 990 A (at 40°C for 1 s Power Circuit), 135 A (at 40°C for 10 min Power Circuit), 320 A (at 40°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit) |
| Environmental Attributes | Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3 |
| Impulse Withstand Voltage | 8 kV |
| Watts Loss | 6 to 10W |
| Rated Insulation Volts | 600/1000V (Power Circuit), 600/690V (Signalling Circuit) |
| Horsepower @ Three Phase - 480V AC | 60 hp |
| Full Load Current - Inductive | 80 A |
| Horsepower @ Three Phase - 208V AC | 30 hp |
| Horsepower @ Single Phase - 240V AC | 15 hp |
| Full Load Current - Resistive | 125 A |
| Horsepower @ Single Phase - 120V AC | 7 1/2 hp |
| Horsepower @ Three Phase - 240V AC | 30 hp |
| Mounting Style | Plate, Rail |
| Maximum Voltage Rating | 690V AC, 300V DC |
| Conventional Free Air Thermal Current | 10 A (at 60°C Signalling Circuit), 125 A (at 60°C Power Circuit) |
Description
The Schneider Electric LC1D80F7 is an IEC magnetic contactor from the LC1D series, rated for 80A and 60 hp at 575V three-phase, with a 110V AC coil and screw clamp terminals. This contactor is a non-reversing, three-pole switching device used to control motor and resistive loads. It is certified to standards including UL 508, CSA C22.2 No 14, IEC 60947-4-1, and EN 60947-4-1, with approvals from GL, RINA, BV, DNV, LROS, CCC, and GOST.
