- Mounting Hole Diameter: 0.16 in
- Voltage Rating: 480VAC/250VDC
- Operating Temp. Range: 14 Degrees to 158 Degrees F
- NEMA Rating: 1, 2, 3, 4, 5
- Body Material: Aluminum
- Amps: 15
Specifications
| Part Number | ZE-NJ-2S |
| Brand | Omron |
| Basic Actuator Style - Limit Switch | Wobble Stick |
| Actuator Style - Limit Switch | Coil Spring, Wobble Stick |
| Contact Form- Switches | SPDT |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 15A at 480V |
| Body Depth - Limit Switch | 1.01 in |
| Actuator Length | 4.55" |
| Body Height - Limit Switch | 1.75 in |
| Width | 1.00" |
| Depth | 6.90" |
| Body Width - Limit Switch | 3.39 in |
| Actuator Length - Limit Switch | 4.55 in |
| Height | 3.40" |
| Body Height | 1.75 in |
| Body Width | 3.39 in |
| Manufacturer Warranty Length | 1 yr |
| Overall Depth | 1 in |
| Mounting Hole Diameter | 0.16 in |
| Body Depth | 1.01 in |
| Item | Limit Switch |
| DC Contact Rating - Limit Switch | 15A at 250V |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Surface |
| AC Contact Rating | 15 A @ 250 V |
| Voltage Rating | 480VAC/250VDC |
| Standards | CCC, CSA, UL Listed |
| Movement | Light Force |
| Basic Actuator Style (Limit Switch) | Wobble Stick |
| Operating Temp. Range | 14 Degrees to 158 Degrees F |
| Actuator Style (Limit Switch) | Wobble Stick, Coil Spring |
| Mounting Hole Pattern - Limit Switch | 2 Hole Horizontal |
| NEMA Rating | 1, 2, 3, 4, 5 |
| Wiring Entry | G1/2 |
| Travel | Total Travel 15 Degrees |
| Contact Form | SPDT |
| IP Rating | IP65 |
| Body Material | Aluminum |
| Actuator Location (Limit Switch) | Top |
| Actuator Style | Wobble Stick |
| Electrical Connection | Screw Terminals |
| Mounting Hole Spacing - Limit Switch | 1.00 in |
| Amps | 15 |
| Contact Form - Limit Switch | SPDT |
| Mounting Hole - Limit Switch | (2) 0.16 in dia |
| Actuator Location | Top |
| Stem Thread - Limit Switch | No Stem |
| Boot Sealed Actuator (Limit Switch) | No |
| DC Contact Rating | 0.03 A @ 250 V (Inductive Load), 0.05 A @ 125 V (Inductive Load), 0.25 A @ 250 V (Resistive Load), 0.5 A @ 125 V (Resistive Load) |
| Number of Poles | 1 |
| Body Style (Limit Switch) | Miniature |
| Limit Switch Style | General Purpose Limit Switch |
| Boot Sealed Actuator - Limit Switch | No |
| Series | ZE |
| Operating Force | 5 oz |
| Roller Material | Stainless Steel |
| Differential Travel | 15 Degrees |
| Arm Material | Stainless Steel |
| Plunger Adjustability | Fixed |
| Mounting Style | Surface |
| Lamp Type | No Lamp Module Included |
| Body Configuration | Non Plug-In |
| Roller Position | Top |
| Pretravel | 15 Degrees |
| Mounting Hole Vertical Center to Center Distance | 41 mm |
| Roller Adjustability | Fixed |
| Operating Force - Maximum | 5.3 ozf |
| Total Travel | 15 Degrees |
| Directional Movement | Omnidirectional |
| Action | Maintained |
| Includes Actuator | Actuator Included |
| Operating Temperature - Minimum | 14 Degrees F |
| Operating Temperature - Maximum | 176 Degrees F |
| Boot Sealed Actuator | Boot Included |
| Mounting Hole Horizontal Center to Center Distance | 25 mm |
| Number of Mounting Holes | 2 |
| NEMA Enclosure Rating | 1, 2, 3, 4, 5 |
Description

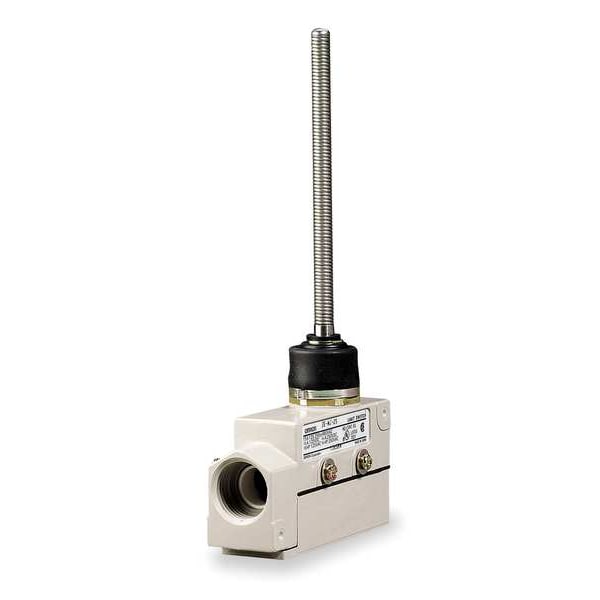

The Omron ZE-NJ-2S is a limit switch with a top-mounted wobble stick actuator on a coil spring. This type of switch opens or closes an electrical circuit when the actuator is physically displaced, providing a control signal. It is rated for 15A at 480VAC and 15A at 250VDC.
