- Body Material: metal
- Mounting Hole Diameter: 0.2 in
- Material: Metal
- Operating Temp.: -13 Degrees to 158 Degrees F
- Ambient Air Temperature For Operation: -25-70°C standard environment
- [Uimp] Rated Impulse Withstand Voltage: 6 kV IEC 60664 || 6 kV IEC 60947-1
Specifications
| Part Number | ZCKL1 |
| Brand | Schneider Electric |
| AC Contact Rating | 3 A @ 240 V |
| Height | 72-72 mm |
| Body Material | metal |
| IP Rating | IP66 |
| Contact Form | 1NO/1NC |
| Width | 52 mm |
| Depth | 30 mm |
| Mounting Hole Diameter | 0.2 in |
| Item | Limit Switch Body |
| Standards | RoHS Compliant |
| DC Contact Rating | 0.27 A @ 250 V |
| Electrical Connection | Screw Clamp Terminals |
| Material | Metal |
| Operating Temp. | -13 Degrees to 158 Degrees F |
| Environmental Characteristic | standard environment |
| Contacts Type And Composition | 1 NC + 1 NO |
| Terminals Description Iso N°1 | (11-12)NC || (21-22)NC |
| Electrical Durability | 5000000 cycles, DC-13 120 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 13 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 9 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Associated Head | ZCKD029 || ZCKD02 || ZCKD239 || ZCKD21 || ZCKD41 || ZCKD23 || ZCKD10 || ZCKD219 || ZCKD17 || ZCKD16 || ZCKD08 || ZCKD81 || ZCKD109 || ZCKD06 || ZCKD91 || ZCKD59 || ZCKD15 || ZCKD05 |
| Positive Opening | with |
| Ambient Air Temperature For Operation | -25-70°C standard environment |
| Device Short Name | ZCKL |
| Product Compatibility | XCKL |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| Number Of Steps | 1 1 position |
| Series Name | standard format |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60664 || 6 kV IEC 60947-1 |
| Body Type | fixed |
| Contacts Material | silver plated contacts |
| Short-Circuit Protection | 10 A cartridge fuse gG |
| Number Of Poles | 2 |
| [Ui] Rated Insulation Voltage | 500 V 3)IEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block || 300 VUL 508 contact block |
| Contact Operation | snap action |
| Maximum Resistance Across Terminals | 0.25 mOhm IEC 60255-7 category 3 |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A |
| Minimum Actuation Speed | 0.01 m/min |
| Ip Degree Of Protection | IP66 |
| Ambient Air Temperature For Storage | -40-70°C |
| Product Or Component Type | limit switch body |
| Ik Degree Of Protection | IK05 |
| Cable Entry | 1 tapped entry for Pg 13.5 cable gland (included) |
| Terminals Description Iso N°1 | (11-12)NC || (21-22)NC |
| Body Configuration | Non Plug-In |
| Mounting Hole Horizontal Center to Center Distance | 41 mm |
| Compatible with Series | XCKL |
| Compatible with Manufacturer Model Number | ZCKD02, ZCKD029, ZCKD05, ZCKD06, ZCKD08, ZCKD10, ZCKD109, ZCKD15, ZCKD16, ZCKD17, ZCKD21, ZCKD219, ZCKD23, ZCKD239, ZCKD41, ZCKD59, ZCKD81, ZCKD91 |
| Number of Mounting Holes | 2 |
| NEMA Enclosure Rating | 1, 12, 2, 3, 4 |
| Indicating Light | No Indicating Light Included |
| Compatible Manufacturer Part Number | ZCKD02, ZCKD029, ZCKD05, ZCKD06, ZCKD08, ZCKD10, ZCKD109, ZCKD15, ZCKD16, ZCKD17, ZCKD21, ZCKD219, ZCKD23, ZCKD239, ZCKD41, ZCKD59, ZCKD81, ZCKD91 |
| Compatible Manufacturer Model Number | ZCKD02, ZCKD029, ZCKD05, ZCKD06, ZCKD08, ZCKD10, ZCKD109, ZCKD15, ZCKD16, ZCKD17, ZCKD21, ZCKD219, ZCKD23, ZCKD239, ZCKD41, ZCKD59, ZCKD81, ZCKD91 |
| Compatible with Manufacturer Model No. | ZCKD02, ZCKD029, ZCKD05, ZCKD06, ZCKD08, ZCKD10, ZCKD109, ZCKD15, ZCKD16, ZCKD17, ZCKD21, ZCKD219, ZCKD23, ZCKD239, ZCKD41, ZCKD59, ZCKD81, ZCKD91 |
| Compatible with Mfr. Model No. | ZCKD02, ZCKD029, ZCKD05, ZCKD06, ZCKD08, ZCKD10, ZCKD109, ZCKD15, ZCKD16, ZCKD17, ZCKD21, ZCKD219, ZCKD23, ZCKD239, ZCKD41, ZCKD59, ZCKD81, ZCKD91 |
| For Use with Mfr Model Number | ZCKD02, ZCKD029, ZCKD05, ZCKD06, ZCKD08, ZCKD10, ZCKD109, ZCKD15, ZCKD16, ZCKD17, ZCKD21, ZCKD219, ZCKD23, ZCKD239, ZCKD41, ZCKD59, ZCKD81, ZCKD91 |
| For Use With Mfr. Model Number | ZCKD02, ZCKD029, ZCKD05, ZCKD06, ZCKD08, ZCKD10, ZCKD109, ZCKD15, ZCKD16, ZCKD17, ZCKD21, ZCKD219, ZCKD23, ZCKD239, ZCKD41, ZCKD59, ZCKD81, ZCKD91 |
| Compatible Pump Manufacturer Part Number | ZCKD02, ZCKD029, ZCKD05, ZCKD06, ZCKD08, ZCKD10, ZCKD109, ZCKD15, ZCKD16, ZCKD17, ZCKD21, ZCKD219, ZCKD23, ZCKD239, ZCKD41, ZCKD59, ZCKD81, ZCKD91 |
| Compatible Mfr. Model Number | ZCKD02, ZCKD029, ZCKD05, ZCKD06, ZCKD08, ZCKD10, ZCKD109, ZCKD15, ZCKD16, ZCKD17, ZCKD21, ZCKD219, ZCKD23, ZCKD239, ZCKD41, ZCKD59, ZCKD81, ZCKD91 |
Description

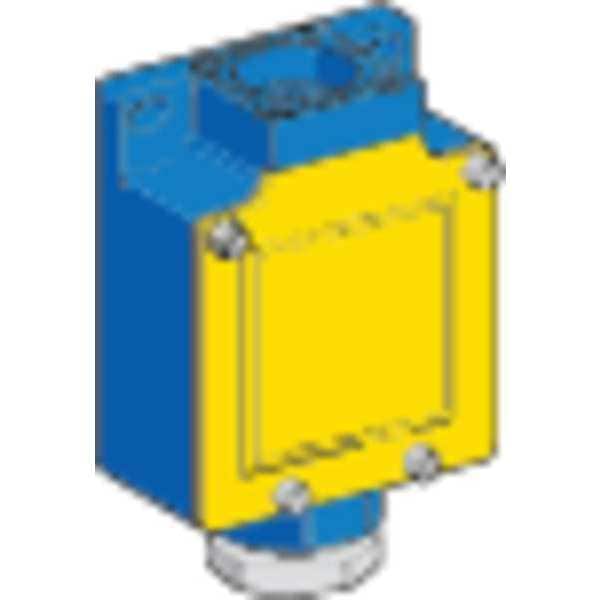

The Schneider Electric ZCKL1 is a limit switch body with a metal construction. This limit switch uses a snap-action, double-break mechanism to open or close its 1NO/1NC contact configuration, rated at 3 A @ 240 V AC and 0.27 A @ 250 V DC. It features screw clamp terminals and is RoHS compliant with an IP66 rating.
