- Phase: Three
- Frame Size: C
- Minimum Operating Temperature: -13 Degrees F
- Maximum Operating Temperature: 122 Degrees F
Specifications
| Part Number | XTOB024CC1 |
| Brand | Eaton |
| Phase | Three |
| Standards | ATEX Compliant, CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed |
| Frame / Series / Class / Code | Frame C |
| Reset Type - Relay | Auto, Manual |
| Number of Poles | 3 |
| Body Depth | 1.88 in |
| Overall Height | 1.89 in |
| Body Height | 3.28 in |
| Frame Size | C |
| Body Width | 1.76 in |
| Item | IEC Overload Relay |
| Overload Relay Current Range | 16.0 to 24.0A |
| Trip Class - Overload | 10 |
| Item - Relay | IEC Style Overload Relay |
| Use With - Contactors and Starters | Mfr. Series XTCE Contactors |
| Mounting Style | Direct To Contactor |
| Relay Style | IEC |
| Compatible with Series | XT Mini Contactors |
| Reset Type | Auto, Manual |
| IP Rating | IP20 |
| Overload Protection Type | Thermal |
| Trip Class | 10 |
| Minimum Operating Temperature | -13 Degrees F |
| Auxiliary Contact Form | 1NO/1NC |
| Maximum Overload Relay Current Setting | 24 A |
| Minimum Overload Relay Current Setting | 16 A |
| Maximum Operating Temperature | 122 Degrees F |
Description

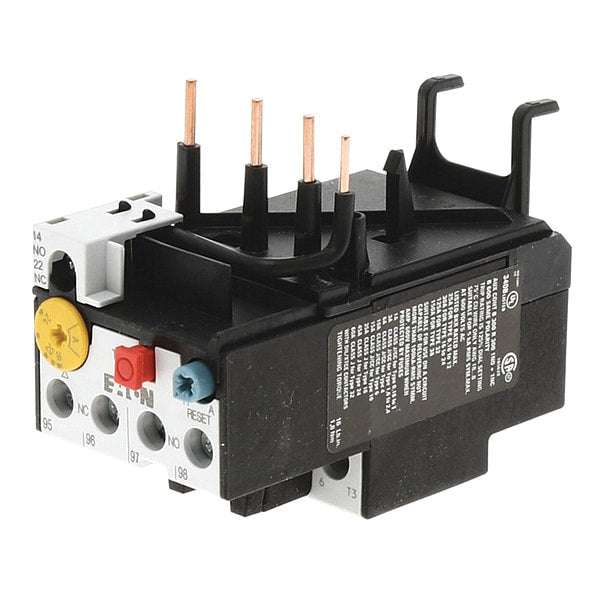

The Eaton XTOB024CC1 is an IEC style overload relay from the Frame C series. This relay provides overload protection for motors by monitoring current and can be set for either automatic or manual reset. It is compatible with XT Mini Contactors and is rated for three-phase applications, complying with ATEX, CE, CSA, EN 60947, IEC 60947, RoHS, and UL standards.
