- Overall Diameter: 30 mm
- Body Material: Brass
- AC Voltage Rating: 24-240V AC
- DC Voltage Rating: 24-210V DC
- Proximity Sensor Operating Frequency: 800 Hz
- Operating Temp. Range: -13 Degrees to 158 Degrees F
Specifications
| Part Number | XSAV12801 |
| Brand | Schneider Electric |
| Style | Cylindrical, Inductive |
| Measurement Range | 8 to 15 mm |
| Overall Diameter | 30 mm |
| Proximity Sensing Method | Inductive |
| Body Material | Brass |
| Cable Length | 2 m |
| Length | 81 mm |
| Overall Height | 81 mm |
| Item | Proximity Sensor |
| Proximity Sensor Power Requirement | 24 to 210 V DC |
| Electrical Connection | Bare Wire |
| Output Circuit Type | AC/DC-Type |
| Output Circuit Number of Wires | 2 |
| Sensing Face Shielding | Unshielded |
| Sensing Distance - Maximum | 15 mm |
| AC Voltage Rating | 24-240V AC |
| DC Voltage Rating | 24-210V DC |
| Output Circuit Contact Form | NC |
| Standards | CCC, CE, CSA, RoHS, UL Listed |
| Proximity Sensor Electrical Connection | 2m Cable |
| Proximity Sensor Operating Frequency | 800 Hz |
| Max. Current Load | 1.5mA |
| IP Rating | IP67 |
| Description/Special Features | Frontal Detection Face; Output State 1 LED Red |
| Operating Temp. Range | -13 Degrees to 158 Degrees F |
| Application | rotation monitoring |
| Series | XSA |
| Storage Temp. Range | -40-85 °C |
| Supply Voltage Limits | 20-264 V AC/DC |
| Body Type | fixed |
| Differential Travel | 3...15% of Fr |
| Switching Capacity | 5...200 mA DC || 5...350 mA AC |
| Maximum Voltage Drop | <5.7 V closed) |
| Load Current - Maximum | 350 mA |
| Sensing Distance - Minimum | 8 mm |
| Body Finish | Nickel Plated |
| Includes Indicator Lights | Indicator Lights Included |
| Switching Frequency | 800 Hz |
| Operating Temperature - Minimum | -13 Degrees F |
| Operating Temperature - Maximum | 158 Degrees F |
| Electrical Installation Type | Prewired Cable |
Description

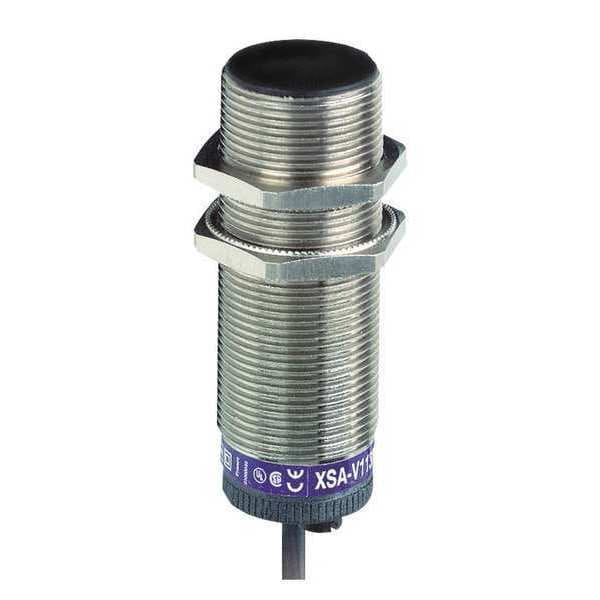

The Schneider Electric XSAV12801 is a cylindrical, inductive proximity sensor. This sensor detects the presence of metallic objects without physical contact, outputting an AC/DC signal. It operates on 24 to 210 V DC or 24-240V AC and is constructed with a brass body.
