- Process Connection Size: 1/4 in
- Process Connection Size - Transmitter: 1/4 in
- Wetted Materials - Transmitters: 316L Stainless Steel
- Max. Pressure (PSI): 1,800 psi
- Housing Material: Stainless Steel
- Minimum Operating Temperature: -22 Degrees F
Specifications
| Part Number | XMLP600PP130 |
| Brand | Schneider Electric |
| Accuracy | +/-0.5% of Full Scale |
| Output | 0.5 to 4.5V DC |
| Power Required | 5V DC |
| Process Connection Type | NPT |
| Process Connection Size | 1/4 in |
| Process Connection Size - Transmitter | 1/4 in |
| Overall Width | 1.02 in |
| Overall Length | 2.17 in |
| Overall Height | 2.66 in |
| Item | Pressure Transmitter |
| Series | XMLP |
| Standards | CE, cULus Listed, EAC, EN/IEC 61326-2-3, EU RoHS Directive, NSF ANSI 61, RCM, REACh free of SVHC, REACH Regulation, RoHS |
| Wetted Materials - Transmitters | 316L Stainless Steel |
| Range | 0 to 600 psi |
| Range Units - Transmitter | psi |
| Features | Circularity Profile, Environmental Disclosure, EU RoHS Directive, Green Premium Product, Mercury Free, REACh Free of SVHC, RoHS Exemption Information |
| Thermal Error | +/-0.02% |
| For Use With | Air -40-275 Degrees F (-40-135 Degrees C), Fresh water 32-275 Degrees F (0-135 Degrees C), Gas -40-275 Degrees F (-40-135 Degrees C), Hydraulic oil -40-275 Degrees F (-40-135 Degrees C), Refrigeration fluid -40-275 Degrees F (-40-135 Degrees C) |
| Housing | 316L Stainless Steel |
| Range Values - Transmitter | 0 to 600 |
| Compatible With | Air -40-275 Degrees F (-40-135 Degrees C), Fresh water 32-275 Degrees F (0-135 Degrees C), Gas -40-275 Degrees F (-40-135 Degrees C), Hydraulic oil -40-275 Degrees F (-40-135 Degrees C), Refrigeration fluid -40-275 Degrees F (-40-135 Degrees C) |
| Max. Pressure (PSI) | 1,800 psi |
| Intrinsically Safe | No |
| For Use With Media Type | See full list of For Use With Media Type Air 40 Degrees F to 275 Degrees F (-40 Degrees C to 135 Degrees C),Fresh Water 32 Degrees F to 275 Degrees F (0 Degrees C to 135 Degrees C),Gas 40 Degrees F to 275 Degrees F (-40 Degrees C to 135 Degrees C),Hydraulic Oil 40 Degrees F to 275 Degrees F (-40 Degrees C to 135 Degrees C),Refrigeration Fluid 40 Degrees F to 275 Degrees F (-40 Degrees C to 135 Degrees C) |
| Housing Material | Stainless Steel |
| Minimum Operating Temperature | -22 Degrees F |
| Pressure Units | psi |
| Minimum Pressure | 0 psi |
| IP Rating | IP65, IP67 |
| Electrical Connection | 3-Pin Packard Connector |
| Response Time | 2 msec |
| Weight | 0.2 lb |
| Process Connection Gender | Male |
| Maximum Operating Temperature | 185 Degrees F |
| Fitting Material | Steel |
| Maximum Pressure | 600 psi |
| Storage Temperature Range | -58 Degrees F to 212 Degrees F (-50 Degrees C to 100 Degrees C) |
| Explosion/Fire Proof | No |
| Electrical Connections | 3-Pin Packard Connector |
| Burst Pressure | 3,600 psi |
| Number of Wires | 3 |
| Overpressure | 1,800 psi |
| Process Media Temperature - Minimum | -22 Degrees F |
| Intrinsic Safety | Not Specified Intrinsically Safe |
| Process Media Temperature - Maximum | 185 Degrees F |
| Includes NIST-Traceable Calibration Certificate | No NIST-Traceable Calibration Certificate Included |
| Pressure Measurement - Minimum | 0 psi |
| Pressure Measurement - Maximum | 600 psi |
| Input Voltage | 5V DC |
| Pressure Type Measured | Gauge |
| Output Power | 0.5 to 4.5V DC |
Description

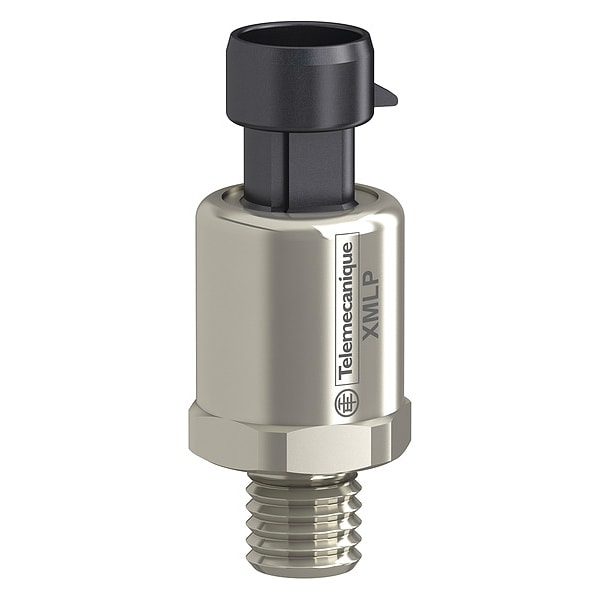

The Schneider Electric XMLP600PP130 is a pressure transmitter from the XMLP series. This type of sensor converts applied pressure into an electrical signal for monitoring and control. It has a 600 psi rating and features a 1/4 in NPT process connection with 316L stainless steel wetted materials, complying with CE, cULus, and NSF ANSI 61 standards.
