- Mounting Hole Diameter: 0.21 in
- Roller Diameter: 0.87 in
- Operating Temp. Range: -13 Degrees to 158 Degrees F
- Body Material: Zamak
- NEMA Rating: 1, 12, 13, 2, 4
- Roller Material: Thermoplastic
Specifications
| Part Number | XCKJ10511H7 |
| Brand | Schneider Electric |
| Basic Actuator Style - Limit Switch | Rotary |
| Actuator Style - Limit Switch | Roller Lever, Rotary |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Side |
| AC Contact Rating - Limit Switch | 10A at 240V |
| Roller Dia. | 0.87 in |
| Depth | 1.73" |
| Actuator Length | 1.61" |
| Body Width - Limit Switch | 1.57 in |
| Body Height - Limit Switch | 4.01 in |
| Roller Width | 0.2 in |
| Body Depth - Limit Switch | 2.36 in |
| Width | 1.57" |
| Actuator Length - Limit Switch | 1.61 in |
| Height | 3.94" |
| Body Height | 4.01 in |
| Overall Height | 3.03 in |
| Mounting Hole Diameter | 0.21 in |
| Overall Depth | 1.73 in |
| Body Width | 1.57 in |
| Body Depth | 1.61 in |
| Roller Diameter | 0.87 in |
| Overall Width | 1.57 in |
| Manufacturer Warranty Length | 18 mo |
| Item | Heavy Duty Limit Switch |
| DC Contact Rating - Limit Switch | 10A at 240V |
| Body Style - Limit Switch | Standard |
| Mounting - Limit Switch | Surface |
| Contact Form - Limit Switch | 1NC/1NO |
| Operating Temp. Range | -13 Degrees to 158 Degrees F |
| Travel | Total Travel 90 Degrees |
| Actuator Style | Roller Lever Plunger |
| Body Material | Zamak |
| Standards | CE, CSA, UL Listed |
| Actuator Style (Limit Switch) | Rotary, Roller Lever |
| NEMA Rating | 1, 12, 13, 2, 4 |
| Contact Form | 1NO/1NC |
| Boot Sealed Actuator (Limit Switch) | No |
| Boot Sealed Actuator - Limit Switch | No |
| Actuator Location | Side |
| Mounting Hole Spacing - Limit Switch | 2.36 in x 1.18 in |
| IP Rating | IP66 |
| DC Contact Rating | 10 A @ 240 V |
| Limit Switch Style | Heavy Duty Limit Switch |
| Actuator Location (Limit Switch) | Side |
| Mounting Hole Pattern - Limit Switch | 4 Hole Rectangular |
| Wiring Entry | 1/2 in NPT |
| Roller Material | Thermoplastic |
| AC Contact Rating | 10 A @ 240 V |
| Movement | CCW, CW |
| Operating Force | 2.21 in-lb |
| Amps | 10 |
| Electrical Connection | Screw Clamp Terminals |
| Stem Thread - Limit Switch | No Stem |
| Voltage Rating | 240VAC/DC |
| Mounting Hole - Limit Switch | (4) 0.21 in dia |
| Basic Actuator Style (Limit Switch) | Rotary |
| Body Style (Limit Switch) | Standard |
| Series | XCKJ |
| Head Material | zamak |
| Special Features | lateral approach, 1 or 2 programmable direction |
| Certification | UL || CSA || CCC |
| Contact Action | snap action |
| Weight | 0.48 kg |
| Mechanical Durability | 30000000 cycles |
| Electrical Durability | 5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Short Circuit Protection | 10 A cartridge fuse gG |
| Min. Actuation Velocity Horizontal | 1.5 m/s |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Actuation Type | by 30° cam |
| Vibration Resistance | 25 gn 10-500 Hz)IEC 60068-2-6 |
| Head Type | rotary head |
| Type Of Operator | spring return roller lever thermoplastic |
| Number Of Poles | 2 |
| NEMA Enclosure Rating | 1, 12, 13, 2, 4 |
| Mounting Style | Surface |
| Operating Torque - Maximum | 2.21 in-lb |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| Number of Mounting Holes | 4 |
| Directional Movement | CCW/CW |
| Mounting Hole Horizontal Center to Center Distance | 30 mm |
| Total Travel | 90 Degrees |
| Boot Sealed Actuator | No Boot Included |
| Operating Temperature - Minimum | -13 Degrees F |
| Mounting Hole Vertical Center to Center Distance | 60 mm |
| Operating Temperature - Maximum | 158 Degrees F |
Description

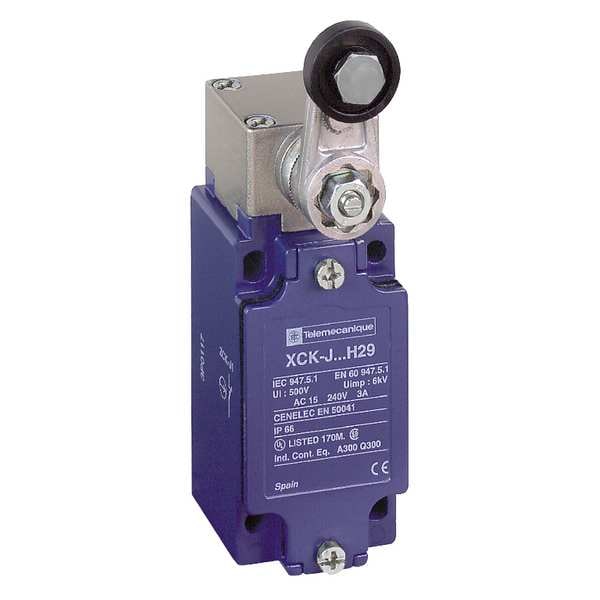

The Schneider Electric XCKJ10511H7 is a heavy duty limit switch with a rotary roller lever actuator located on the side. This type of switch opens or closes electrical contacts when the lever is physically actuated, controlling machinery or equipment. It is rated for 10A at 240V AC and DC, with an operating temperature range of -13°F to 158°F.
