- and have superior holding power when compared to set screw collars. This two-piece double wide shaft collar has a: 1.750" bore
- keyway: 3/8"
- OD: 2 3/4"
- and 1 15/32" width. It has about: 25% more holding power than standard round bore collars of equivalent bore size and can be used as a short rigid coupling in applications where standard length rigid couplings will not fit. The addition of a keyway allows for use in positive drive applications as a shaft collar or for extra torque capacity when used as a rigid coupling. Tightly controlled face to bore perpendicularity is maintained (TIR of < 0.002") which is critical when the collar is used as a load bearing face
- or for component alignment. The work surface is identified by one groove on the face allowing the user to easily identify which side is precision faced. The two-piece design allows this collar to be installed or serviced in-place without the need to remove adjacent components. Halves are mated throughout the manufacturing process for precise fit and increased holding power. This collar is stamped with the Ruland name and bore size for ease of identification. It is manufactured from: 303 stainless steel to a fine burr-free finish with hardware of like material for consistent corrosion resistance. Hardware tests beyond ANSI standards for maximum holding power. It is RoHS and REACH compliant.
Specifications
| Part Number | WSPK-28-SS |
| Brand | Ruland |
| Item | Ruland clamp style shaft collars do not mar the shaft |
| and have superior holding power when compared to set screw collars. This two-piece double wide shaft collar has a | 1.750" bore |
| keyway | 3/8" |
| OD | 2 3/4" |
| and 1 15/32" width. It has about | 25% more holding power than standard round bore collars of equivalent bore size and can be used as a short rigid coupling in applications where standard length rigid couplings will not fit. The addition of a keyway allows for use in positive drive applications as a shaft collar or for extra torque capacity when used as a rigid coupling. Tightly controlled face to bore perpendicularity is maintained (TIR of < 0.002") which is critical when the collar is used as a load bearing face |
| or for component alignment. The work surface is identified by one groove on the face allowing the user to easily identify which side is precision faced. The two-piece design allows this collar to be installed or serviced in-place without the need to remove adjacent components. Halves are mated throughout the manufacturing process for precise fit and increased holding power. This collar is stamped with the Ruland name and bore size for ease of identification. It is manufactured from | 303 stainless steel to a fine burr-free finish with hardware of like material for consistent corrosion resistance. Hardware tests beyond ANSI standards for maximum holding power. It is RoHS and REACH compliant. |
| Features | are infinitely adjustable, mechanical stop |
| UPC | 634529306109 |
Description

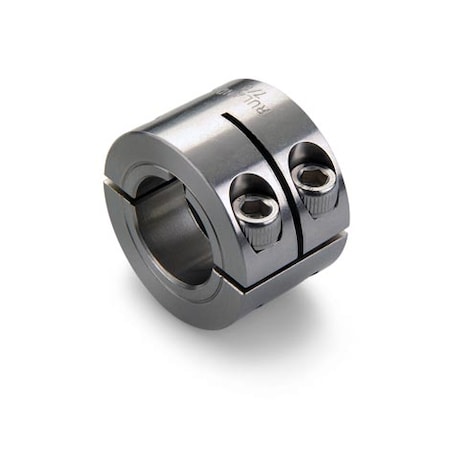

The Ruland WSPK-28-SS is a two-piece double wide clamp style shaft collar with a 1.750" bore and a 3/8" keyway. It has an outside diameter of 2 3/4" and a width of 1 15/32". Manufactured from 303 stainless steel, this collar is RoHS and REACH compliant.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
