- NPT Size: 1/2 in
- Max. Pressure (PSI): 200 psi
- Max. Temp.: 150 Degrees F
- Outside Diameter: 3 7/20 in
- Air Inlet Size: 1/2 in
- Air Outlet Size: 1/2 in
Specifications
| Part Number | WSA-04-FM0 |
| Brand | Wilkerson |
| NPT Size | 1/2 in |
| Float Type | Automatic Internal Drain |
| Max. Flow (CFM) | 50 |
| Max. Pressure (PSI) | 200 psi |
| Max. Temp. | 150 Degrees F |
| Dia. | 3.35 |
| Height | 7.34 in |
| Overall Width | 3 3/8 in |
| Outside Diameter | 3 7/20 in |
| Overall Length | 7 5/16 in |
| Air Inlet Size | 1/2 in |
| Overall Depth | 7 5/16 in |
| Air Outlet Size | 1/2 in |
| Element Size Category | Universal |
| Item | Pneumatic Condensate Separator |
| Housing | Cast Zinc |
| Differential Pressure (PSI) | 1 |
| Auto Drain Stock Number | Included |
| Max. Flow CFM @ 100 PSI | 50 |
| Body Material | Cast Zinc |
| Drain Type | Automatic |
| Air Outlet Type | NPT |
| Bowl Guard Material | Metal |
| Filtered Substance | Water |
| Standards | ISO 8573 |
| Weight | 2.6 lb |
| Air Inlet Type | NPT |
| Maximum Flow Rate | 50 cfm |
| For Substance Type | Liquid |
| Maximum Flow @ 100 psi | 50 cfm |
| Maximum Operating Pressure | 200 psi |
| Maximum Operating Temperature | 150 Degrees F |
| Type | Automatic Internal Drain |
| Drain Included | Yes |
| Minimum Operating Temperature | 32 Degrees F |
| Seal Material | Nitrile |
| Pressure Drop | 1 psid |
Description

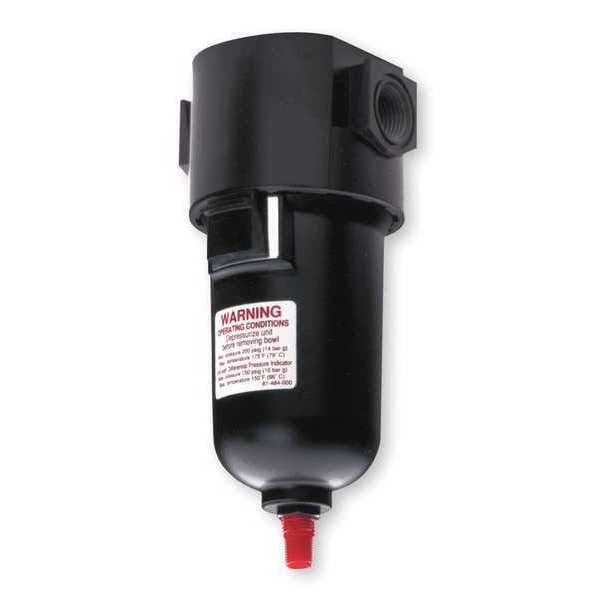

The Wilkerson WSA-04-FM0 is a pneumatic condensate separator with an automatic internal drain. This component removes liquid condensate from compressed air systems, operating at a maximum pressure of 200 psi and a maximum temperature of 150 degrees Fahrenheit. It has a maximum flow of 50 CFM at 100 PSI with a differential pressure of 1 PSI, and features a cast zinc body.
