- Size - Tire Couplings: WE3
- Keyseat Size: 1/4 x 1/8
- Coupling Size: WE3
- Screw Thread Size: 3/8"-16
- Bore Diameter: 1 in
- Hub Diameter: 2.32 in
Specifications
| Part Number | WE3H-1 |
| Brand | Tb Woods |
| Size - Tire Couplings | WE3 |
| Bore Type - Couplings | Fixed Bore |
| Bore Dia. | 1 in |
| Outside Dia. | 2.32 in |
| Length through Bore | 1 1/2 in |
| Hub Dia. | 2.32 |
| Keyseat Size | 1/4 x 1/8 |
| Height | 2.32 in |
| Width | 1.5 in |
| Coupling Length Standard Assembly | 4.32 in |
| Keyway Width | 1/4 in |
| Keyway Depth | 1/8 in |
| Coupling Size | WE3 |
| Screw Thread Size | 3/8"-16 |
| Bore Diameter | 1 in |
| Hub Diameter | 2.32 in |
| Item | Tire Coupling Hub |
| Max. Angular Misalignment | 4 Degrees |
| Max. RPM | 7,500 RPM |
| Material of Construction | Low Carbon Steel |
| Body Style | WE3 |
| Rated Torque (In.-Lb.) | 365 |
| Setscrew Location | One Over Keyway |
| Item - Tire Coupling Hubs | Tire Coupling Hub |
| Ideal For | Numerous Industrial Applications, Including Pumps, Motors, Compressors |
| Parallel Misalignment | 0.0625 in |
| Set Screw Location | Over Keyway |
| Horsepower @ 100 RPM | 0.58 hp |
| Bore Type | Round Keyed |
| Maximum Speed | 7,500 RPM |
| Angular Misalignment | 4 Degrees |
| System of Measurement | Inch |
| Resistance Properties | Chemical Resistant, Oil Resistant |
| Weight | 1 lb |
| Maximum Torque | 365 in-lb |
| Application | Blowers, Compressors, Fans, Generators, Including Pumps, Motors, Numerous Industrial Applications |
| Torsional Stiffness | 4,710 in-lb/rad |
| Hub Material | Steel |
| Features | Absorbs Shock, Easy to Install, No Lubrication Required, Same Hubs Used on Both Spacer and Standard Elements |
| Maximum Operating Temperature | 200 Degrees F |
| For Misalignment Type | Angular, Parallel |
| Bore Tolerance | +0.0005 in / +0.0015 in |
| Minimum Operating Temperature | -40 Degrees F |
| Horsepower @ RPM | 10 hp @1750 RPM, 20 hp @ 3500 RPM, 6.7 hp @ 1160 RPM |
Description

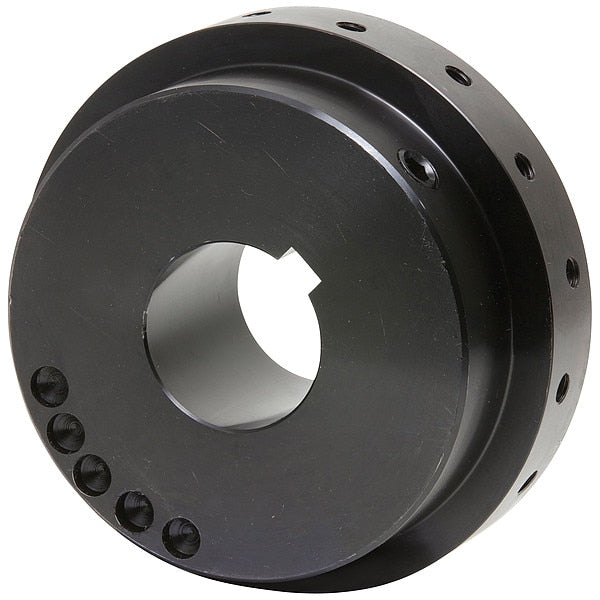

The Tb Woods WE3H-1 is a Dura-Flex tire coupling hub made of low carbon steel. This hub connects rotating shafts to transmit power while absorbing shock and requiring no lubrication. It is used with blowers, compressors, fans, generators, pumps, motors, and numerous industrial applications, with a maximum RPM of 7,500 and a horsepower rating of 0.58 hp at 100 RPM.
