- Phase - Pumps: 1
- HP: 1/2
- Impeller Material: Cast Iron
- Amps: 14.5 A
- Diameter: 11-3/4"
- Max. Diameter Solids: 3/4 in
Specifications
| Part Number | WE0511HH |
| Brand | Goulds |
| Phase - Pumps | 1 |
| Cord Length | 20 ft |
| HP | 1/2 |
| Impeller Material | Cast Iron |
| Amps | 14.5 A |
| Length | 8-1/2" |
| Cord Length - Pumps | 20 ft. |
| Min. Sump Pit Dia. | 18 in |
| Width | 8-1/2" |
| Diameter | 11-3/4" |
| Height | 16" |
| Max. Dia. Solids | 3/4" |
| Max. Diameter Solids | 3/4 in |
| Manufacturers Warranty Length | 1 yr |
| Minimum Water Depth | 18 in |
| Overall Height | 16 in |
| Discharge Dia. | 2 in |
| Width at Widest Point | 8 1/2 in |
| Body Dia. | 11 3/4 in |
| Sump Pit Diameter - Minimum | 18 in |
| Water Depth - Minimum | 18 in |
| Discharge Diameter | 2 in |
| Solids Diameter - Maximum | 3/4 in |
| Body Diameter | 11 3/4 in |
| Item | Effluent Pump |
| Body Material | Cast Iron |
| Max. Head | 61 ft |
| Switch Actuation | No Switch Included |
| GPM of Water @ 50 Ft. of Head | 18 |
| Hz | 60 Hz |
| GPM of Water @ 10 Ft. of Head | 58 |
| GPM of Water @ 60 Ft. of Head | 2 |
| Phase | Single |
| Impeller Material - Pumps | Cast Iron |
| Shaft Seal | Stainless Steel, Buna-N, Silicon Carbide |
| GPM of Water @ 5 Ft. of Head | 62 |
| Max. Liquid Temp. | 140 Degrees F |
| Motor RPM | 3450 |
| GPM of Water @ 40 Ft. of Head | 30 |
| Voltage - Pumps | 120VAC |
| Switch Type | None |
| GPM of Water @ 30 Ft. of Head | 41 |
| GPM of Water @ 45 Ft. of Head | 25 |
| Input Phase AC | 1 |
| Handle | yes |
| Base Material | Cast Iron |
| Pump Body Material | Cast Iron |
| Pump HP | 1/2 |
| GPM of Water @ 70 Ft. of Head | 56 |
| Includes | 1-1/2" FNPT Flange |
| Pump RPM | 3450 |
| Discharge NPT | 2" |
| Top Material | Cast Iron |
| Bearing Type | Ball |
| Voltage | 115V |
| Agency Compliance | CSA C22.2 108, UL 778 |
| GPM of Water @ 55 Ft. of Head | 10 |
| Duty | Continuous |
| Amps - Pumps | 14.50 |
| GPM of Water @ 25 Ft. of Head | 45 |
| GPM of Water @ 15 Ft. of Head | 53 |
| GPM of Water @ 35 Ft. of Head | 35 |
| GPM of Water @ 100 Ft. of Head | 16 |
| Motor Type | Oil Filled Capacitor Start |
| Shaft Seal Material - Pumps | Nitrile Rubber, Silicon Carbide, Stainless Steel |
| Item - Effluent Pumps | Submersible Effluent Pump |
| GPM of Water @ 80 Ft. of Head | 45 |
| Max. Head - Pumps | 61 ft. |
| GPM of Water @ 90 Ft. of Head | 30 |
| Housing Material | Cast iron |
| Switch Type - Pumps | No Switch Included |
| GPM of Water @ 20 Ft. of Head | 49 |
| Alarm Included | No |
| Flow Rate @ 10 Ft. of Head | 58 gpm |
| Flow Rate @ 20 Ft. of Head | 50 gpm |
| RPM | 3,450 RPM |
| Flow Rate @ 15 Ft. of Head | 53 gpm |
| Duty Cycle | Continuous |
| Switch Electrical Connection | No Switch Included |
| Flow Rate @ 40 Ft. of Head | 30 gpm |
| Discharge | 2 in FNPT |
| Discharge Standard | NPT |
| Flow Rate @ 60 Ft. of Head | 2 gpm |
| Discharge Gender | Female |
| Rated Voltage | 120V AC |
| Rotation Speed - Maximum | 3,450 RPM |
| Horsepower | 1/2 hp |
| Flow Rate @ 40 ft of Head | 30 gpm |
| Shaft Seal Material | Nitrile Rubber/Silicon Carbide/Stainless Steel |
| Current | 14.5 A |
| For Media Type | Effluent Water |
| Series | WE |
| Requires Control Panel | No Control Panel Required |
| Power Source | Corded Electric |
| Includes Alarm | No Alarm Included |
| Flow Rate @ 10 ft of Head | 58 gpm |
| Volute Material | Cast Iron |
| Hazardous Location Class | Not Rated |
| Liquid Temperature - Maximum | 140 Degrees F |
| Frequency | 60 Hz |
| Standards | CSA C22.2 108, UL Listed |
| Flow Rate @ 20 ft of Head | 50 gpm |
| Motor Housing Material | Cast Iron |
| Feet of Head - Maximum | 61 ft |
| Shaft Seal Type | Single Mechanical |
| Impeller Design | Non-Clog |
Description

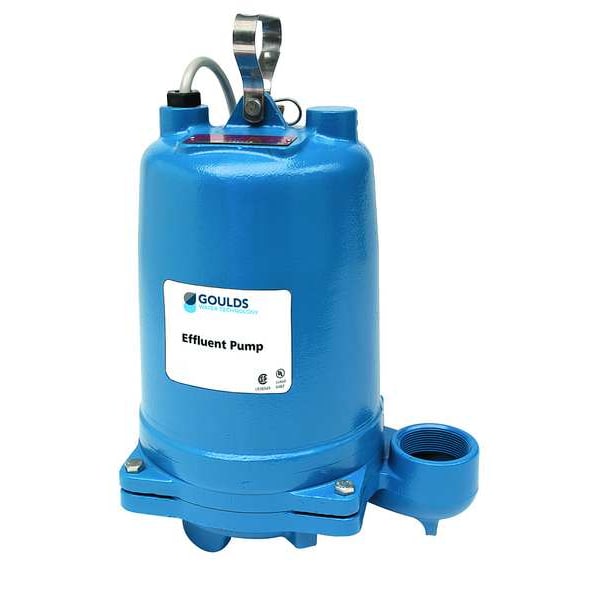

The Goulds WE0511HH is a 1/2 HP submersible effluent pump with a cast iron body and impeller. It operates on 115V, 60 Hz, single-phase power at 14.5 amps.
