- BtuH Capacity: 415,000 BtuH
- Inlet Size: 3/4 in
- Outlet Size: 3/4 in
- Pressure Tap Connection Size: 1/8 in
- Port Connection Size: 3/4 in
- Amps AC: 0.9 A
Specifications
| Part Number | VR8345Q4563 |
| Brand | Honeywell |
| BtuH Capacity | 415,000 BtuH |
| Coil Volts | 24 V |
| Gas Type | NG/LP |
| Ignition Type | Direct Spark Ignition, Hot Surface Ignition, Intermittent Pilot |
| Inlet Size | 3/4 in |
| Outlet Size | 3/4 in |
| Pressure Tap Connection Size | 1/8 in |
| Overall Depth | 2 11/16 in |
| Overall Length | 4 1/16 in |
| Overall Height | 5 3/8 in |
| Port Connection Size | 3/4 in |
| Reducer Bushing Kit | (2) 3/4 x (1) 1/2 in |
| Valve Type | Standard Opening, Two stage |
| Amps AC | 0.9 A |
| Ambient Temp. Range | -40 to 175 Degrees F |
| Item | Gas Valve |
| LP Conversion Kit | Yes |
| Pressure Setting Range | 3.5 in wc |
| Flow Direction | Straight-Thru |
| Includes | (2) 3/4 x (1) 1/2 in Reducer Bushings |
| Inlet Pressure Tap | Yes |
| Side Taps | No |
| Max. Inlet Pressure | 1/2 psi |
| Standards | CSA International: 112395, UL Component Recognized MCCZ2.MH5323 |
| Operating Temperature - Minimum | -40 Degrees F |
| Manufacturer Series | VR8345 |
| Includes Pilot Generator Kit | Pilot Generator Kit Not Included |
| Port Connection Gender | Female |
| Voltage | 24V AC |
| Reducer Bushings Included | (2) 3/4 x (1) 1/2 in |
| Port Connection Type | NPT |
| Sensing Type | Flame Sensor |
| Pressure Tap Connection Type | NPT |
| Pilot Type | Direct Spark Ignition, Hot Surface Ignition, Intermittent Pilot |
| ANSI Rating | ANSI Z223.1 NFPA No. 54 |
| Includes Pressure Regulator | Pressure Regulator Included |
| Operating Temperature - Maximum | 175 Degrees F |
| Heating Capacity - Maximum | 415,000 BtuH |
| Opening Characteristic | Fast Opening |
| Valve Design | Dual |
| Electrical Connections | Quick Connect Terminal |
| Includes Conversion Kit | Conversion Kit Included |
| Installation Orientation | Vertical |
| Current | 0.9 A |
| Includes Thermostat | Mechanical Thermostat Not Included |
| For Media | Liquid Propane, Natural Gas |
| Includes Side Taps | Side Taps Not Included |
| Includes Pressure Tap | Pressure Tap Inlet Included, Pressure Tap Outlet Included |
Description

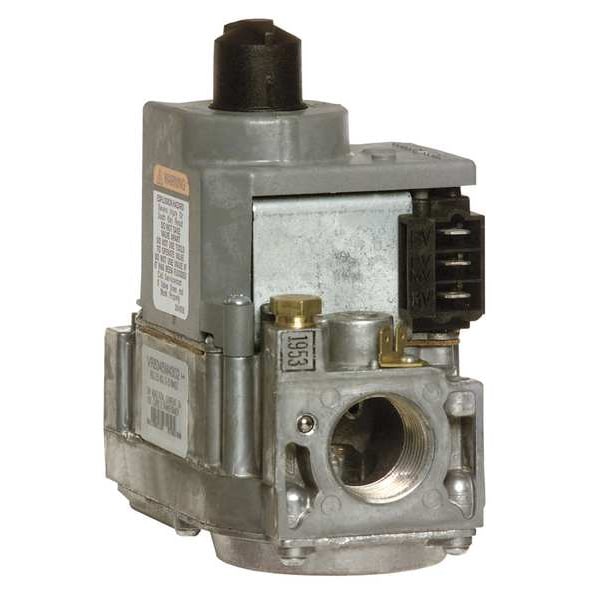

The Honeywell VR8345Q4563 is a 24 Vac two-stage gas valve for NG/LP with a 415,000 BtuH capacity. It combines direct spark, hot surface, and intermittent pilot ignition functions to control gas flow. This valve operates with a 0.9 A amp draw and a 1/8 in pressure tap connection.
