- Voltage: 24V AC
- Pilot Port Connection Size: 1/4 in
- Port Connection Size: 1/2 in
- Pressure Tap Connection Size: 1/8 in
- Operating Temperature - Maximum: 175 Degrees F
- Operating Temperature - Minimum: 0 Degrees F
Specifications
| Part Number | VR8300A3500 |
| Brand | Honeywell |
| Flow Direction | Straight-Thru |
| Overall Length | 2 11/16 in |
| Voltage | 24V AC |
| For Media | Natural Gas |
| Pilot Port Connection Size | 1/4 in |
| Overall Height | 5 3/8 in |
| Overall Depth | 4 1/16 in |
| Port Connection Size | 1/2 in |
| Pressure Tap Connection Size | 1/8 in |
| Item | Gas Valve |
| Includes Pilot Generator Kit | Pilot Generator Kit Included |
| Valve Design | Single |
| Operating Temperature - Maximum | 175 Degrees F |
| Installation Orientation | Horizontal, Vertical |
| Manufacturer Series | VR8300 |
| Operating Temperature - Minimum | 0 Degrees F |
| Pilot Type | Standing Pilot |
| Reducer Bushings Included | 3/4 in x 1/2 in Reducer Bushing |
| Includes Pressure Regulator | Pressure Regulator Included |
| Includes Conversion Kit | Conversion Kit Included |
| Pilot Port Connection Type | Compression |
| Opening Characteristic | Fast Opening |
| Pressure Tap Connection Type | NPT |
| Heating Capacity - Maximum | 290,000 BtuH |
| Includes On/Off Switch | On/Off Switch Not Included |
| Electrical Connections | Quick Connect Terminal |
| Includes Pressure Tap | Pressure Tap Inlet Included |
Description

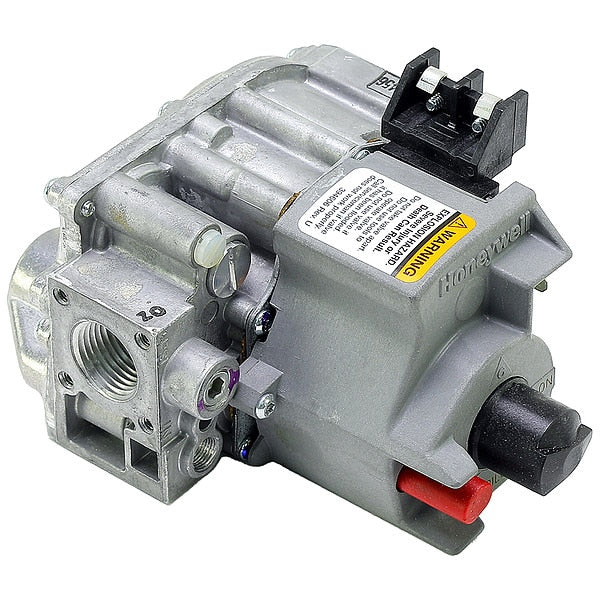

The Honeywell VR8300A3500 is a 24V AC standing pilot gas valve. As a stand-opening gas valve, it controls the flow of natural gas to the pilot and main burner in a standing pilot system. This straight-thru valve includes a pilot generator kit and has a maximum operating temperature of 175 degrees Fahrenheit.
