- BtuH Capacity: 150,000 to 200,000
- Inlet Size: 1/2 in
- Outlet Size: 1/2 in
- Port Connection Size: 1/2 in
- Pressure Tap Connection Size: 1/8 in
- Amps AC: 0.5A
Specifications
| Part Number | VR8215S1503 |
| Brand | Resideo |
| BtuH Capacity | 150,000 to 200,000 |
| Coil Volts | 24VAC |
| Gas Type | NG/LP |
| Ignition Type | Direct Spark Ignition |
| Inlet Size | 1/2 in |
| Outlet Size | 1/2 in |
| Port Connection Size | 1/2 in |
| Overall Height | 3 3/8 in |
| Pressure Tap Connection Size | 1/8 in |
| Overall Depth | 2 11/16 in |
| Overall Length | 4 7/16 in |
| Valve Type | Standard Opening |
| For Use With | Gas Fired Appliances |
| Amps AC | 0.5A |
| Ambient Temp. Range | -40 to +175 Degrees F |
| Item | Gas Valve |
| LP Conversion Kit | No |
| Pressure Setting Range | 2.5 to 3.5" WC |
| Flow Direction | Straight-Thru |
| Includes | Natural to LP Conversion Kit |
| Side Taps | No |
| Max. Inlet Pressure | 1/2 psi |
| Standards | CSA International: 112395, Australian Gas Association: 7960 |
| Inlet Pressure Tap | No |
| Reducer Bushings Included | None |
| Operating Temperature - Minimum | -40 Degrees F |
| Includes Conversion Kit | Conversion Kit Included |
| Manufacturer Series | VR8215 |
| Port Connection Gender | Female |
| Includes Thermostat | Mechanical Thermostat Not Included |
| Pilot Type | Direct Spark Ignition, Hot Surface Ignition |
| Current | 0.5 A |
| Sensing Type | Flame Sensor |
| Includes Pressure Regulator | Pressure Regulator Included |
| ANSI Rating | ANSI Z223.1 NFPA No. 54 |
| Includes Pilot Generator Kit | Pilot Generator Kit Not Included |
| Includes Pressure Tap | Pressure Tap Inlet Included, Pressure Tap Outlet Included |
| Installation Orientation | Versatile |
| Voltage | 24V AC |
| Valve Design | Single |
| Opening Characteristic | Fast Opening |
| Electrical Connections | Quick Connect Terminal |
| For Media | Liquid Propane, Natural Gas |
| Pressure Tap Connection Type | NPT |
| Port Connection Type | NPT |
| Heating Capacity - Maximum | 200,000 BtuH |
| Operating Temperature - Maximum | 175 Degrees F |
| Includes Side Taps | Side Taps Not Included |
Description

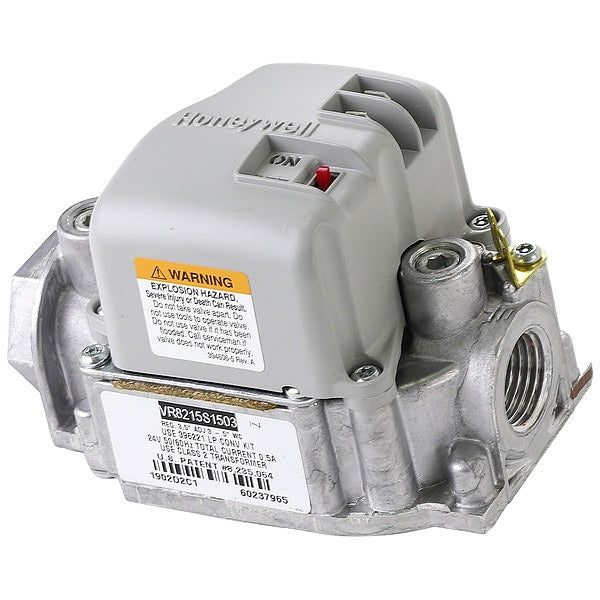

The Resideo VR8215S1503 is a direct spark ignition gas valve for natural gas or liquid propane. It is a standard opening valve with a 150,000 to 200,000 BtuH capacity, operating at 24VAC and 0.5 amps. This valve is used with gas fired appliances.
