- Phase: Three
- HP: 15 HP @ 480V
- Voltage: 600 V
- Housing Material: Steel
- Amps: 30 A
- NEMA Enclosure Rating: 3R
Specifications
| Part Number | VH361RB |
| Brand | Schneider Electric |
| CAD Drawing | 2D Drawing (.pdf) |
| Protection Method | Fusible |
| Contact Form | 3PST |
| Current Rating | 30 A |
| Phase | Three |
| For Fuse Class | Class H, Class K |
| Width | 7.60 in |
| Depth | 5.11 in |
| Height | 15.10 in |
| Item | Safety Switch |
| Environment | Indoor/Outdoor |
| Enclosure Type | NEMA 3R |
| HP | 15 HP @ 480V |
| Voltage | 600 V |
| Handle Color | Black/Red |
| Housing Material | Steel |
| Standards | EU RoHS, UL Listed file E2875 |
| Number of Poles | 3 |
| Amps | 30 A |
| Number of Wires | 3 |
| IP Rating | IP14 |
| Duty | Heavy Duty |
| Neutral Assembly Included | No |
| Includes | Dual Cover Interlock |
| NEMA Enclosure Rating | 3R |
| Features | Quick Make/Break Operating Mechanism, Viewing Window |
| Number of Mounting Holes | 3 |
| Mounting Style | Surface Mount |
| Fuse Kit (Class R) | Mfr. No. RFK03L |
| Series | F |
| Horsepower @ 480V AC | 15 hp |
| Includes Interlocked Receptacle | Yes |
| Horsepower @ 600V AC | 20 hp |
| Number of Locks | 2 |
| Compatible with Manufacturer Model Number | RFK03L |
| Horsepower @ 240V AC | Not Rated |
| Compatible Manufacturer Part Number | RFK03L |
| Compatible Manufacturer Model Number | RFK03L |
| For Use With Mfr. Model Number | RFK03L |
| Device Application | heavy application |
| Short-Circuit Current | 10 kA for H, K, J or R without fuse rejection clips || 200 kA for R with fuse rejection clips || 200 kA for J |
| Product Certifications | UL listed file E2875 |
| Disconnector Device Type | fusible disconnect |
| Electrical Connection | lugs |
| Condition Of Use | suitable service entrancefor USA || suitable service entrancefor Mexico |
| Tightening Torque | 45-45 lbf.in 13.3-13.3 mm² (AWG 6) || 40-40 lbf.in 8.367-8.367 mm² (AWG 8) || 35-35 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10) |
| Series Name | heavy duty |
| Wiring Configuration | 3-wire |
| Product Or Component Type | Single Throw Safety Switch |
| Device Composition | field installed kit available |
| Device Mounting | surface |
| Compatible with Manufacturer Model No. | RFK03L |
| Compatible with Mfr. Model No. | RFK03L |
| For Use with Mfr Model Number | RFK03L |
| Compatible Pump Manufacturer Part Number | RFK03L |
| Compatible Mfr. Model Number | RFK03L |
| CAD Available | Yes |
Description

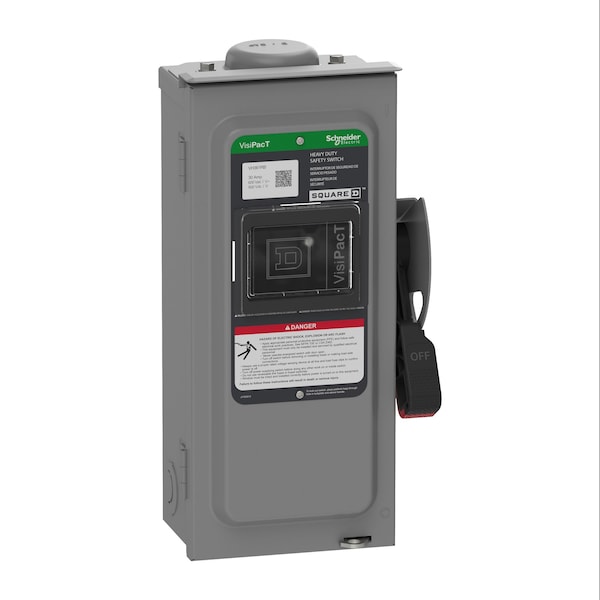

The Schneider Electric VH361RB is a 600V, 30A, three-phase, fusible safety switch with a 3PST configuration. This safety switch provides a means to manually disconnect power for maintenance or isolation, and it is housed in a NEMA 3R steel enclosure suitable for indoor or outdoor use. It is UL Listed under file E2875 and compliant with EU RoHS standards.
