- HP: 3/4
- Nameplate RPM: 1,765
- Voltage: 230V AC, 460V AC
- Full Load Amps: 1.14/2.28/2.4 A
- RPM Range: 1,701-1,800
- Phase: Three
Specifications
| Part Number | VEM31112 |
| Brand | Baldor Motor |
| HP | 3/4 |
| Nameplate RPM | 1,765 |
| Voltage | 230V AC, 460V AC |
| Full Load Amps | 1.14/2.28/2.4 A |
| Frame | 56C |
| Length Less Shaft | 10 5/16 in |
| Overall Length | 12 1/4 in |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Item | AC Induction Motor |
| Motor Bearings | Ball |
| Motor Service Factor | 1.25 |
| Motor Design | Three-Phase |
| Motor Enclosure Design | Open Drip Proof |
| RPM Range | 1,701-1,800 |
| Phase | Three |
| No. of Speeds | 1 |
| Motor Application | General Purpose |
| Motor Shaft Rotation | CCW |
| Voltage Compatibility | 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC |
| Hz | 60 Hz |
| Ins. Class | F |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Frame Material | Steel |
| Motor Mounting Position | Vertical |
| Motor Shaft Design | Standard |
| Nominal Efficiency | 82.5 % |
| Standards | CURUSEEV |
| Motor Thermal Protection | None |
| Inverter Rated | Yes |
| NEMA Design | B |
| Usable @ 208V | Yes |
| Duty Cycle | Continuous |
| Part Winding Start Capable | No |
Description

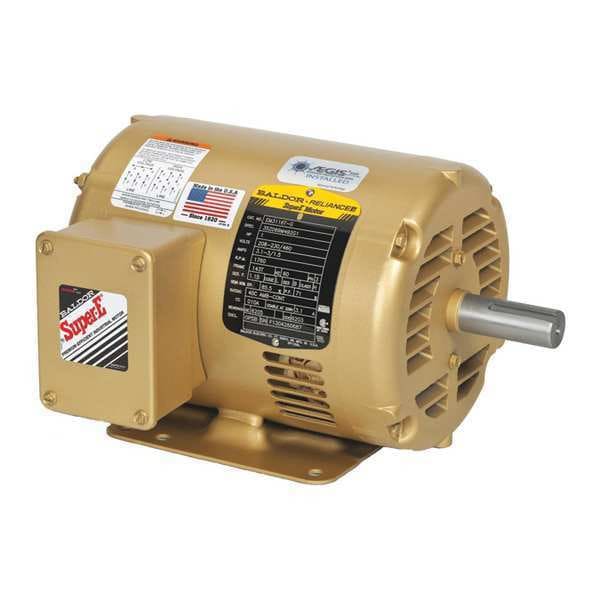

The Baldor Motor VEM31112 is a three-phase AC induction motor with 3/4 HP, 1,765 nameplate RPM, and a 56C frame. It operates at 230V AC or 460V AC with full load amps of 1.14/2.28/2.4 A and features an open drip-proof enclosure. This motor converts electrical energy into mechanical rotation to drive equipment such as fans, pumps, or compressors.
